Disassemble/assemble planetary gear set 2 - AR27.50-P-0623-02EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

Fig 1: Identifying Pliers (000 589 52 37 00)

Courtesy of MERCEDES-BENZ USA

Remove retaining ring (1) from planetary gear set 2 (2).
Remove annulus gear (3).
Remove external plate carrier (4) with multidisk clutch K38.

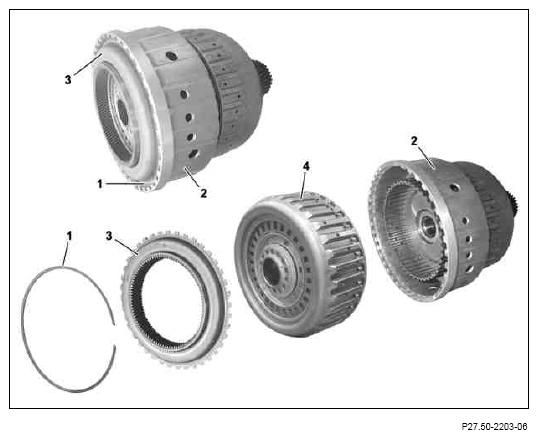

Fig 2: Removing Retaining Ring From Planetary Gear Set 2
Courtesy of MERCEDES-BENZ USA
Remove thrust plate (5).
Remove retaining ring (6). Pliers
Install a new retaining ring (6).
Remove annulus gear (7).
Remove sun gear (8) from planetary gear set 2 (2).
Check sun gear (8) for damage and replace, if necessary.
Unclip needle roller bearing (9).
Check needle roller bearing (9) for damage and replace, if necessary.
Assemble in the reverse order.

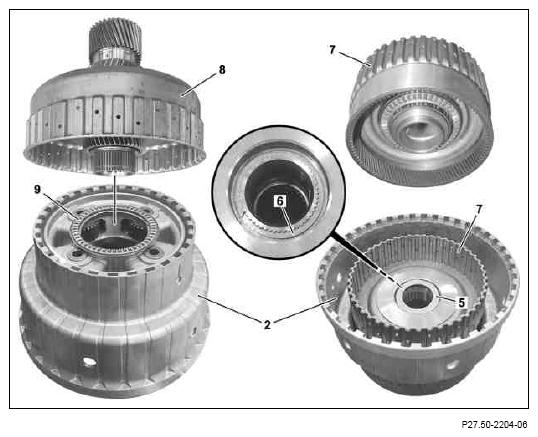

Fig 3: Removing Sun Gear From Planetary Gear Set 2
Courtesy of MERCEDES-BENZ USA
