Disassemble/assemble planetary gear set 1 - AR27.50-P-0623-01EWM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 725.0

Fig 1: Identifying Pliers (000 589 52 37 00)

Courtesy of MERCEDES-BENZ USA

Unclip oil duct (1).
Check oil duct (1) and sealing ring (2) and replace oil duct (1), if necessary.
Remove retaining ring (3) using pliers.
Remove external plate carrier (4) from planetary gear set 1 (5).
Unclip thrust bearing (6, 7, 8).
Check thrust bearing (6, 7, 8) for damage and replace, if necessary.

Assembly: Make sure that it is installed at the correct position.
Assemble in the reverse order.

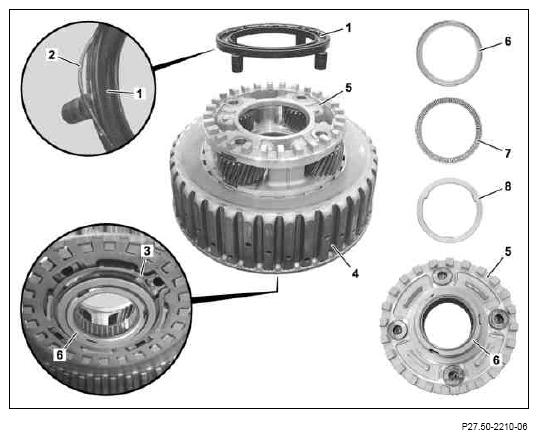

Fig 2: Removing External Plate Carrier From Planetary Gear Set 1
