Remove/install clutch pack BR, multidisk brake B2 and park pawl gear - AR27.50-P-0782W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9, 724.2

Shown on transmission 722.9

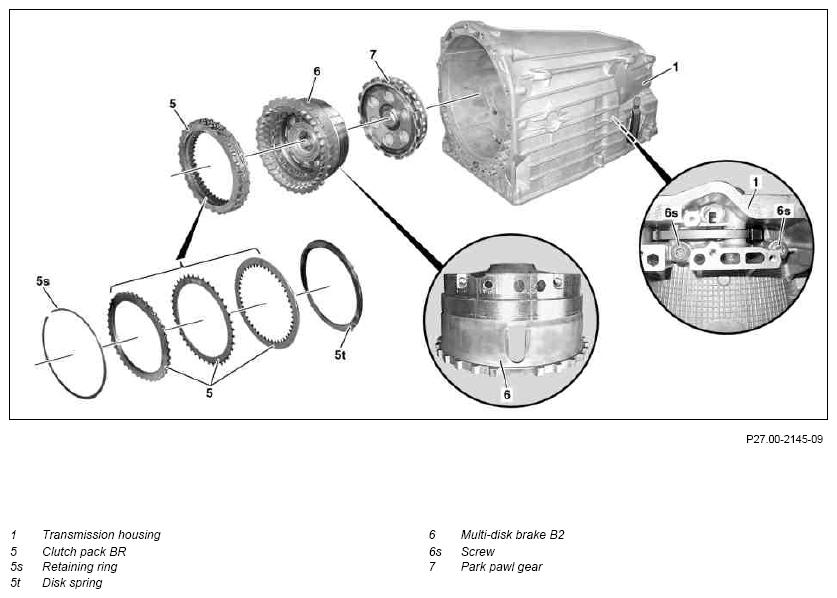

Fig 1: Clutch Pack BR, Multidisk Brake B2 And Park Pawl Gear Components - Shown On Transmission 722.9

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Detach transmission housing (1) from torque converter housing or housing for electrical machine		AR27.50-P-0601W
1		Cleanliness is essential when working on the transmission. Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.50-P-0601W
2	Press together clutch pack BR (5) and remove retaining ring (5s)
3	Remove clutch pack BR (5)
4	Remove disk spring (5t)
5	Remove screws/bolts (6s) and remove multidisk brake B2 (6)	According to condition:
5	Remove screws/bolts (6s) and remove multidisk brake B2 (6)	Disassemble/assemble multi-disk brake B2	AR27.50-P-0880W
6	Remove park pawl gear (7)
	Install
7	Insert park pawl gear (7)
8	Measure and adjust clearance of multi-disk brake B2 (6).	TRANSMISSION 722.9, 724.2 Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3	AR27.51-P-7229W
9	Install multidisk brake B2 (6) and tighten screws/bolts (6s)	The external plate carrier of the multidisk brake B2 (6) is simultaneously the piston of clutch pack BR (5) and must not tilt over. Otherwise function of clutch pack BR (5) is not ensured. Before tightening the screws/bolts (6s), press the external plate carrier from inside against the park pawl gear (7). Replace screws/bolts (6s).
		TRANSMISSION 722.9 in MODEL 164, 166, 171, 172, 203, 204, 207, 209, 211, 212, 216, 218, 219, 220, 221, 230, 231, 251 Transmission removed	*BA27.40-P-1005-01A
		TRANSMISSION 722.9 in MODEL 463 Transmission removed	*BA27.40-P-1006-01E
		TRANSMISSION 724.2 Transmission removed	*BA27.19-P-1006-01C
10	Insert disk spring (5t)	Insert disk spring (5t) in such a way that the curvature of the inner circumference points toward the multidisk brake B2 (6).
11	Install clutch pack BR (5)
	End disk modified	TRANSMISSION 722.9 Check disks for scorch marks and wear, replace if necessary. Observe the installation sequence: ↓	BT27.50-P-0015-01W
	End disk modified	Survey of multiple-disc components, production details TRANSMISSION 722.9	GF27.51-P-5200W
12	Press together clutch pack BR (5) and install retaining ring (5s)
13	Measure and adjust clearance in multidisk brake BR		AR27.51-P-7229-01W
		The thickness of the retaining ring (5s) determines the clearance.	AR27.51-P-7229-01W
		TRANSMISSION 722.9	*BE27.50-P-1004-02C
		TRANSMISSION 724.2	*BE27.50-P-1004-02D
14	Attach transmission housing (1) to torque converter housing or housing for electrical machine		AR27.50-P-0601W

ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number	Designation		TRANSMISSION 722.9 (except 722.93)	TRANSMISSION 722.93
BE27.50-P-1004-02C	Clearance of multi-disk brake BR	mm	1, 00...1, 40	1, 00...1, 40

SET VALUES FOR MULTI-DISK BRAKE

Number	Designation		TRANSMISSION 724.2
BE27.50-P-1004-02D	Clearance of multi-disk brake BR	mm	1, 00...1, 40

HOUSING

Number	Designation			TRANSMISSION 722.9 in MODEL 463
BA27.40-P-1006-01E	Bolt, multi-disk brake B2 to transmission housing	Stage 1	Nm	10
BA27.40-P-1006-01E	Bolt, multi-disk brake B2 to transmission housing	Stage 2	∠°	90

HOUSING

Number	Designation			TRANSMISSION 722.9
BA27.40-P-1005-01A	Bolt, multi-disk brake B2 to transmission housing	Stage 1	Nm	10
BA27.40-P-1005-01A	Bolt, multi-disk brake B2 to transmission housing	Stage 2	∠°	90

ELECTROHYDRAULIC CONTROLLER UNIT

Number	Designation			TRANSMISSION 724.2
BA27.19-P-1006-01C	Bolt, multi-disk brake B2 to transmission housing	Stage 1	Nm	10
BA27.19-P-1006-01C	Bolt, multi-disk brake B2 to transmission housing	Stage 2	∠°	90
