Disassemble/assemble multi-disk brake B2 - AR27.50-P-0880W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9, 724.2

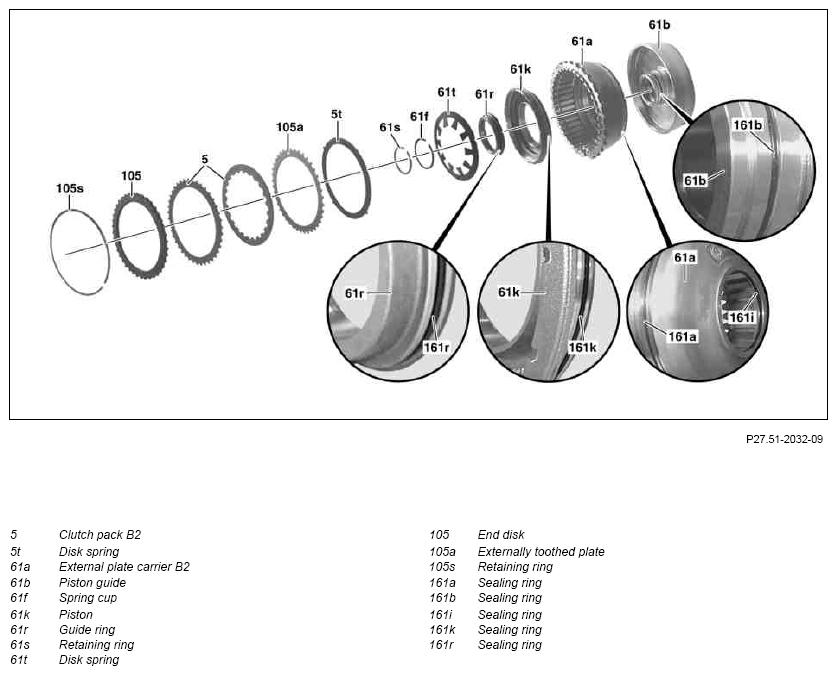

Fig 1: Multi-Disk Brake B2 Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Multi-Disk Brake B2 Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Remove disk pack B2 (5)		AR27.50-P-0782W
1	Remove disk pack B2 (5)	Cleanliness is essential when working on the transmission. Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.50-P-0782W
	Disassemble
2	Remove retaining ring (105s) and end disk (105)
3	Remove disk pack B2 (5), externally toothed plate (105a) and disk spring (5t)	Check disks for scorch marks and wear, replace if necessary.
4	Place assembly device on disk spring (61t) and tension until retaining ring (61s) is exposed	Assembly device	Fig 3
5	Remove circlip (61s)	Pliers	Figure
6	Remove assembly device
7	Remove spring cup (61f) and disk spring (61t)
8	Remove guide ring (61r) and piston (61k); to do so, blow compressed air into hole (B) of piston guide (61b)	Blow compressed air in carefully.
9	Separate piston guide (61b) from external plate carrier B2 (61a); to do so, blow compressed air into hole (A)	Blow compressed air in carefully. The external plate carrier B2 (61a) also serves as the piston for the multidisk brake B3.
	Assemble
10	Assemble piston guide (61b) and external plate carrier B2 (61a)		AR27.50-P-0880-01W
		Replace the sealing rings (161a, 161b, 161i). With sealing rings (161a, 161b), the rounded edges must face outward.	AR27.50-P-0880-01W
		TRANSMISSION 722.9	*BA27.40-P-1005-01A
		TRANSMISSION 724.2	*BA27.19-P-1006-01C
11	Install piston (61k)	Replace the sealing ring (161k). The rounded off edges must point outwards.
12	Insert guide ring (61r)	Replace the sealing ring (161r). The rounded off edges must point outwards.
13	Insert disk spring (61t) and spring cup (61f)	Insert the disk spring (61t) with the curvature toward the spring cup (61f).
14	Place assembly device on disk spring (61t) and tension until groove for circlip (61s) is exposed	Assembly device	Fig 3
15	Install circlip (61s)	Pliers	Figure
16	Remove assembly device
17	Install disk spring (5t), external plate (105a) and disk pack B2 (5)	Insert disk spring (5t) in such a way that curvature of the inner circumference points toward the piston (61k). Observe insertion sequence when inserting disks: ↓
		Survey of multiple-disc components, production details TRANSMISSION 722.9	GF27.51-P-5200W
18	Install end disk (105) and retaining ring (105s)
	End disk modified	TRANSMISSION 722.9	BT27.50-P-0015-01W
	Measure
19	Measure and adjust clearance	TRANSMISSION 722.9, 724.2Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3	AR27.51-P-7229W
	Install
20	Install disk pack B2 (5)		AR27.50-P-0782W

TRANSMISSION HOUSING

Number	Designation			TRANSMISSION 722.9
BA27.40-P-1005-01A	Bolt, multi-disk brake B2 to transmission housing	Stage 1	Nm	10
BA27.40-P-1005-01A	Bolt, multi-disk brake B2 to transmission housing	Stage 2	∠°	90

ELECTROHYDRAULIC CONTROLLER UNIT

Number	Designation			TRANSMISSION 724.2
BA27.19-P-1006-01C	Bolt, multi-disk brake B2 to transmission housing	Stage 1	Nm	10
BA27.19-P-1006-01C	Bolt, multi-disk brake B2 to transmission housing	Stage 2	∠°	90

Fig 3: Identifying Assembly Device (140 589 13 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Pliers (000 589 52 37 00)

Courtesy of MERCEDES-BENZ USA
