Measure and adjust clearance - AR27.51-P-7229W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.9, 724.2

Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3

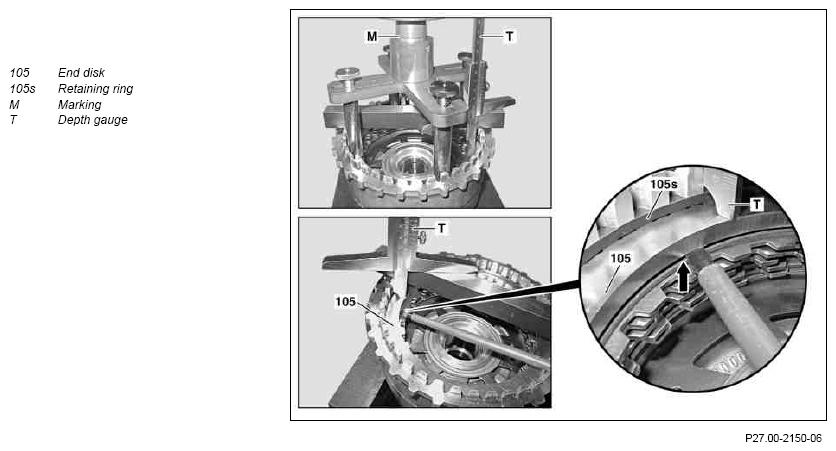

Fig 1: Adjusting Multidisk Brake B1, B2, B3 And Multidisk Clutch K1, K2, K3 Clearance (1 Of 2)
G09975869Courtesy of MERCEDES-BENZ USA

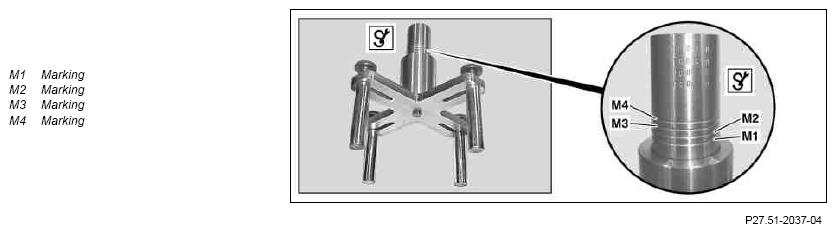

Fig 2: Adjusting Multidisk Brake B1, B2, B3 And Multidisk Clutch K1, K2, K3 Clearance (2 Of 2)
G09975870Courtesy of MERCEDES-BENZ USA
IMPORTANT Notes on automatic transmission   AH27.19-P-0001-01NKB
MEASURING Measure
1 Place multidisk brake or multidisk clutch in a lever press NOTES Cleanliness is essential when working on the transmission
Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission.
IMPORTANT For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable. Workshop press (stationary)
2 Put drifts of the thrust device on the end disk (105) NOTES Position the drifts on the end disk (105) so that slipping off during the pressing process is prevented.
Otherwise the end disk (105) may be damaged.
SPECIAL TOOL Pressing tool Figure
SPECIAL TOOL Set of drifts Figure
3 Operate lever press NOTES Note the markings (M1 to M4).
Otherwise the disks and plate carrier will be damaged if the pressing force is exceeded.
IMPORTANT The markings (M1 to M4) indicate the required pressing force.
For multidisk brake B1, the marking (M1) applies.
For multidisk brake B2, the marking (M3) applies.
For multidisk brake B3, the marking (M1) applies.
For multidisk clutch K1, the marking (M2) applies.
For multidisk clutch K2, the marking (M4) applies.
For multidisk clutch K3, the marking (M1) applies.
4 Put on parallel support SPECIAL TOOL Parallel rest Figure
5 Determine distance between the parallel gauge upper edge and the end disk (105) using depth gauge (T) IMPORTANT Determine distance at two points of the circumference of the end disk (105) and note the mean value as dimension "a".
6 Move back lever press
7 Press end disk (105) against the retaining ring (105s) NOTES Attach the tool (e.g. screwdriver) carefully between end disk (105) and first friction plate (arrow). Do not twist tool.
The disks will otherwise be bent and the friction lining damaged.
8 Determine distance between the parallel gauge upper edge and the end disk (105) using depth gauge (T) IMPORTANT Before the clearance measurement the disks must be immersed in automatic transmission fluid for at least one hour so that the friction lining can swell up.
Determine distance at two points of the circumference of the end disk (105) and note the mean value as dimension "a".
The difference from measurements "a" and "b" gives the clearance.
  Adjust clearance
9 Remove retaining ring (105s) and determine its thickness
10 Adjust clearance; to do this, install retaining ring (105s) of appropriate thickness. Retaining rings (105s) are available in a graduation of 0.3 mm.
TRANSMISSION 722.9
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.50-P-1001-02C
TRANSMISSION 724.2
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.50-P-1001-02D
TRANSMISSION 722.9
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.50-P-1002-02C
TRANSMISSION 724.2
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.50-P-1002-02D
TRANSMISSION 722.9
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.50-P-1003-02C
TRANSMISSION 724.2
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.50-P-1003-02D
TRANSMISSION 722.9
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.51-P-1001-01C
TRANSMISSION 724.2
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.51-P-1001-01D
TRANSMISSION 722.9
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.51-P-1002-01C
TRANSMISSION 724.2
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.51-P-1002-01D
TRANSMISSION 722.9
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 *BE27.51-P-1003-01C
TRANSMISSION 724.2
Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3
Assignment of disk number:
↓		 *BE27.51-P-1003-01D
REFER TO BASIC KNOWLEDGE Survey of multiple-disc components, production details
TRANSMISSION 722.9 Multidisk brake B1, B2, B3 and multidisk clutch K1, K2, K3		 GF27.51-P-5200W
ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number Designation TRANSMISSION 722.9 (except 722.93/97) TRANSMISSION 722.93
BE27.50-P-1001-02C Play in multiple-disc brake B1 Contact force for clearance adjustment B1 M1 N 600 600
Number of multiple-discs 3 mm 2, 00...2, 40 -
4 mm 2, 20...2, 60 2, 20...2, 60
5 mm - 2, 30...2, 70
ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number Designation TRANSMISSION 722.97
BE27.50-P-1001-02C Play in multiple-disc brake B1 Contact force for clearance adjustment B1 M1 N 600
Number of multiple-discs 3 mm -
4 mm 2, 20...2, 60
5 mm 2, 30...2, 70
SET VALUES FOR MULTI-DISK BRAKE

Number Designation TRANSMISSION 724.2
BE27.50-P-1001-02D Play in multiple-disc brake B1 Contact force for clearance adjustment M1 N 600
Number of multiple-discs 3 mm 2, 00...2, 40
4 mm 2, 20...2, 60
5 mm 2, 30...2, 70
ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number Designation TRANSMISSION 722.9 (except 722.93/97) TRANSMISSION 722.9
BE27.50-P-1002-02C Play in multiple-disc brake B2 Contact force for clearance adjustment B2 M3 N 1000 1000
Number of disks of internally toothed plates 4 mm 1, 70...2, 10 1, 70...2, 10
5 mm 1, 80...2, 20 1, 80...2, 20
Number of disks of externally toothed plates 5 mm 1, 70...2, 10 1, 70...2, 10
6 mm 1, 80...2, 20 1, 80...2, 20
ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number Designation TRANSMISSION 722.97
BE27.50-P-1002-02C Play in multiple-disc brake B2 Contact force for clearance adjustment B2 M3 N 1000
Number of disks of internally toothed plates 4 mm -
5 mm 1, 80...2, 20
Number of disks of externally toothed plates 5 mm -
6 mm 1, 80...2, 20
SET VALUES FOR MULTI-DISK BRAKE

Number Designation TRANSMISSION 724.2
BE27.50-P-1002-02D Play in multiple-disc brake B2 Contact force for clearance adjustment M3 N 1000
Number of disks of internally toothed plates 4 mm 1, 70...2, 10
5 mm 1, 80...2, 20
Plate number, external plates 5 mm 1, 70...2, 10
6 mm 1, 80...2, 20
ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number Designation TRANSMISSION 722.9 (except 722.93/97) TRANSMISSION 722.93
BE27.50-P-1003-02C Play in multiple-disc brake B3 Contact force for clearance adjustment B3 M1 N 600 600
Number of multiple-discs 3 mm 2, 00...2, 40 2, 00...2, 40
4 mm 2, 20...2, 60 2, 20...2, 60
5 mm 2, 30...2, 70 2, 30...2, 70
ADJUSTMENT VALUES OF MULTI-DISK BRAKE

Number Designation TRANSMISSION 722.97
BE27.50-P-1003-02C Play in multiple-disc brake B3 Contact force for clearance adjustment B3 M1 N 600
Number of multiple-discs 3 mm -
4 mm 2, 20...2, 60
5 mm 2, 30...2, 70
SET VALUES FOR MULTI-DISK BRAKE

Number Designation TRANSMISSION 724.2
BE27.50-P-1003-02D Play in multiple-disc brake B3 Contact force for clearance adjustment M1 N 600
Number of multiple-discs 3 mm 2, 00...2, 40
4 mm 2, 20...2, 60
5 mm 2, 30...2, 70
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 722.9 (except 722.93/97) TRANSMISSION 722.93
BE27.51-P-1001-01C Play in multiple-disc clutch K1 Contact force for clearance adjustment K1 M2 N 800 800
Number of internal plates 3 mm 2, 00...2, 40 -
4 mm 2, 20...2, 60 -
5 mm 2, 40...2, 80 2, 40...2, 80
6 mm - 2, 40...2, 80
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 722.97
BE27.51-P-1001-01C Play in multiple-disc clutch K1 Contact force for clearance adjustment K1 M2 N 800
Number of internal plates 3 mm -
4 mm -
5 mm 2, 40...2, 80
6 mm 2, 40...2, 80
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 724.2
BE27.51-P-1001-01D Play in multiple-disc clutch K1 Contact force for clearance adjustment M2 N 800
Number of internal plates 3 mm 2, 00...2, 40
4 mm 2, 20...2, 60
5 mm 2, 40...2, 80
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 722.9 (except 722.93/97) TRANSMISSION 722.93
BE27.51-P-1002-01C Play in multiple-disc clutch K2 Contact force for clearance adjustment K2 M4 N 1200 1200
Number of internal plates 3 mm 1, 70...2, 10 -
4 mm 1, 90...2, 30 -
5 mm 2, 10...2, 50 -
6 mm 2, 20...2, 60 1, 90...2, 30
7 mm - 2, 00...2, 40
8 mm - 2, 10...2, 50
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 722.97
BE27.51-P-1002-01C Play in multiple-disc clutch K2 Contact force for clearance adjustment K2 M4 N 1200
Number of internal plates 3 mm -
4 mm -
5 mm -
6 mm -
7 mm 2, 00...2, 40
8 mm -
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 724.2
BE27.51-P-1002-01D Play in multiple-disc clutch K2 Contact force for clearance adjustment M4 N 1200
Number of internal plates 4 mm 1, 90...2, 30
5 mm 2, 10...2, 50
6 mm 2, 20...2, 60
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 722.9 (except 722.93/97) TRANSMISSION 722.93
BE27.51-P-1003-01C Play in multiple-disc clutch K3 Contact force for clearance adjustment K3 M1 N 600 600
Number of internal plates 3 mm - 2, 40...2, 80
4 mm 2, 20...2, 60 -
5 mm 2, 40...2, 80 -
6 mm - -
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 722.97
BE27.51-P-1003-01C Play in multiple-disc clutch K3 Contact force for clearance adjustment K3 M1 N 600
Number of internal plates 3 mm -
4 mm -
5 mm 2, 40...2, 80
6 mm 2, 40...2, 80
ADJUSTMENT VALUES OF MULTI-DISK CLUTCH

Number Designation TRANSMISSION 724.2
BE27.51-P-1003-01D Play in multiple-disc clutch K3 Contact force for clearance adjustment M1 N 600
Number of internal plates 4 mm 2, 20...2, 60
5 mm 2, 40...2, 80
Fig 3: Identifying Parallel Rest (126 589 04 31 00)
G09975871Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Set Of Drifts (722 589 04 15 00)
G09975872Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pressing Tool (722 589 01 31 00)
G09975873Courtesy of MERCEDES-BENZ USA
