Assemble piston guide and external plate carrier of multi-disk brake B2 - AR27.50-P-0880-01W
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.9, 724.2
TRANSMISSION HOUSING
| Number | Designation | TRANSMISSION 722.9 | ||
|---|---|---|---|---|
| BA27.40-P-1005-01A | Bolt, multi-disk brake B2 to transmission housing | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||
ELECTROHYDRAULIC CONTROLLER UNIT
| Number | Designation | TRANSMISSION 724.2 | ||
|---|---|---|---|---|
| BA27.19-P-1006-01C | Bolt, multi-disk brake B2 to transmission housing | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||

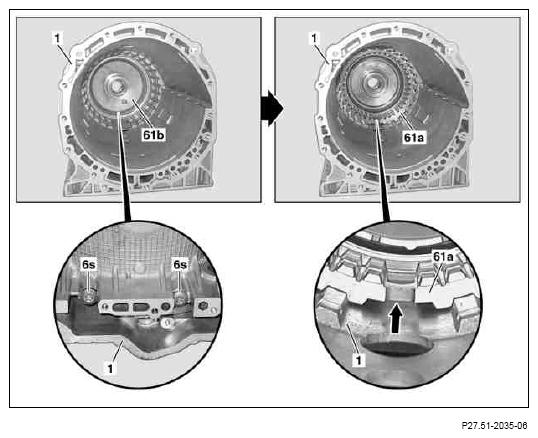

- Install piston guide (61b) in transmission housing (1) and tighten with screws/bolts (6s).TRANSMISSION 722.9
TRANSMISSION 724.2
Press piston guide (61b) axially into housing to prevent any tilting when tightening.
- Press external plate carrier (61a) into piston guide (61b) up to end stop.
- Remove the now preassembled multidisk brake B2 from transmission housing (1) for further assembly operations.
