Remove/install valve springs and/or valve stem seals - AR05.30-P-3500AMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 156

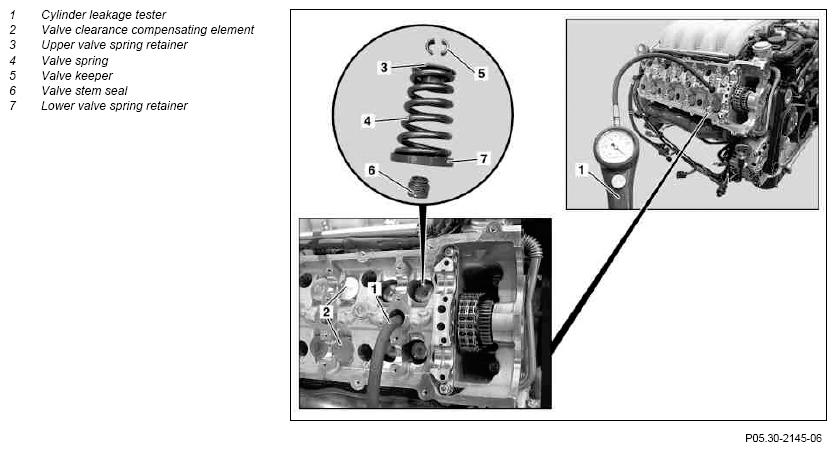

Fig 1: Valve Stem Seals Remove/Install Components
G09974390Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove cylinder head covers Model 164, 251 AR01.20-P-5014GZS
    Model 204, 212 AR01.20-P-5014CMG
    Model 209, 211, 219 AR01.20-P-5014TMG
    Model 216, 221 AR01.20-P-5014SMG
    Model 230 AR01.20-P-5014RMG
2 Remove camshafts Up to engine number 001177 AR05.20-P-6992ANG
    from engine number 001178 AR05.20-P-6992AMG
3 Remove hydraulic valve clearance compensation elements (2)   AR05.00-P-2011AMG
4 Rotate piston of the cylinder to be worked on to TDC INSTALLATION IMPORTANT Before installing the camshaft sprockets, turn the crankshaft back into the starting position to 40° after ignition TDC at cylinder 1.
5 Connect cylinder leakage tester (1) IMPORTANT Screw connection hose for cylinder leakage testing unit (1) into relevant spark plug bore. AR01.00-P-1300-01VA
    SPECIAL TOOL Fig 4
6 Pressurize the compression chamber IMPORTANT The pressure should be around 5 bar.
7 Screw retaining fork and detent with hinged bearing into cylinder head SPECIAL TOOL Fig 2
8 Attach detent depresser with lever handle and thrust piece into detent with hinged bearing, align IMPORTANT Position thrust piece vertically at upper valve spring retainer (3) and align parallel to grid with joint bearing.
    SPECIAL TOOL Fig 2
9 Depress valve spring (4) and remove split valve spring retainer locks (5) IMPORTANT Remove valve keepers (5) using tweezers or magnetic finger.
    SPECIAL TOOL Fig 3
10 Remove upper valve spring retainer (3) and valve spring (4) NOTES Do not allow valves to come into contact with piston crowns, otherwise they will be bent.
IMPORTANT The valve springs of the intake and exhaust valves are identical.

11 Remove valve stem seal (6) INSTALLATION IMPORTANT Replace valve stem seal (6) after inspecting lower valve spring retainer (7). AR05.30-P-3500-02VA
    SPECIAL TOOL Figure
    SPECIAL TOOL Figure
12 Remove lower valve spring retainer (7)
INSPECT Checking
13 Inspect surface of valve stems for roughness and ridging IMPORTANT Visual inspection or with nail probe. Replace valves with a rough stem surface or formation of ridging: ↓
    Remove valves. AR05.30-P-3511AMG
14 Check upper and lower valve spring retainers (3, 7) IMPORTANT Inspect the valve spring retainer for burrs, replace if necessary.
15 Install in the reverse order
Fig 2: Identifying Valve Installation Tools Case (111 589 25 61 00)
