Remove/install cylinder head cover - AR01.20-P-5014CMG

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 156 in MODEL 204, 212

Shown on left cylinder head cover

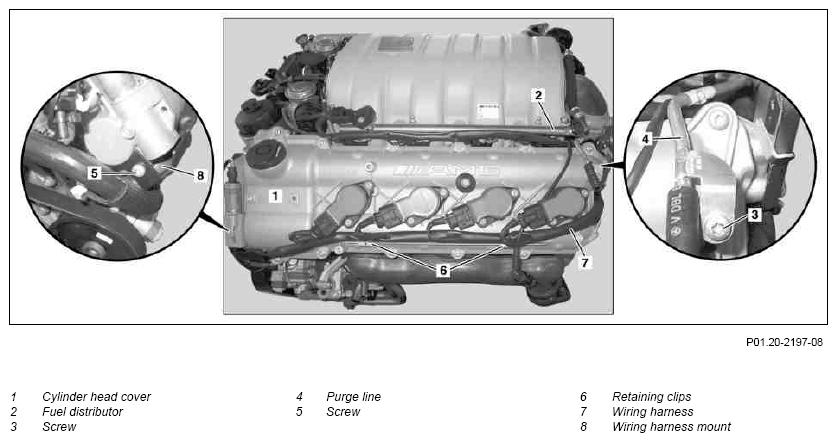

Fig 1: Cylinder Head Cover Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

21.6.10

Value modified: Bolt, cylinder head cover to cylinder head

*BA01.30-P-1004-01U

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Switch off ignition
2	Remove air filter housing		AR09.10-P-1150CMG
3	Remove foam cover from fuel distributor (2)
4	Remove ignition coils		AR15.12-P-2003CMG
5	Disconnect purge line (4) at purge valve	When removing LH cylinder head cover.
6	Unscrew bolt (3), place purge line (4) to one side	When removing LH cylinder head cover.
7	Unscrew bolt (5) and take out bracket (8)		*BA01.30-P-1006-01U
8	Unclip retaining clamps (6)
9	Loosen bolts of cylinder head cover (1) in the reverse order of the tightening procedure and remove them		AR01.20-P-5014-03AMG
			*BA01.30-P-1004-01U
10	Remove cylinder head cover (1)	To avoid damaging the sealing surfaces, do not insert tools between cylinder head cover and cylinder head to pry off.
11	Install in the reverse order
	Checking
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Conduct engine test run and check engine for leaks

CYLINDER HEAD

Number	Designation			Engine 156
BA01.30-P-1004-01U	Bolt, cylinder head cover to cylinder head	M6	Nm	8.5
BA01.30-P-1006-01U	Bolt, front cover to cylinder head	M6	Nm	10
