Connect cylinder leakage testing unit - AR01.00-P-1300-01VA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 133, 152.9, 156, 157, 159, 270, 271, 272, 273, 274, 276, 277, 278, 279

Fig 1: Identifying Threaded Adapter (272 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Screw-In Fitting (270 589 01 91 00)

Courtesy of MERCEDES-BENZ USA

The following special tools are needed: thread adapter (06), thread adapter

Calibrate cylinder leakage tester (04).
ENGINE 152.9, 156, 159, 271, 272, 273
Screw threaded adapter (06) to high-pressure testing hose (05).

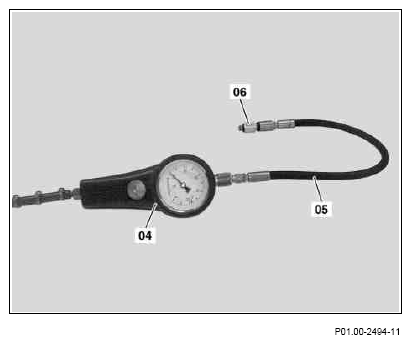

Fig 3: Connecting Threaded Adapter To High-Pressure Testing Hose
Courtesy of MERCEDES-BENZ USA
- (3.1) ENGINE 152.9, 156, 159, 271, 272, 273
  Turn threaded adapter (06) with high-pressure testing hose (05) in tapped bore for spark plug.
- (3.2) ENGINE 133, 157, 270, 274, 276, 277, 278, 279
  Screw thread adapter into tapped bore for spark.
Mount high-pressure testing hose (05) on cylinder leakage tester (04).

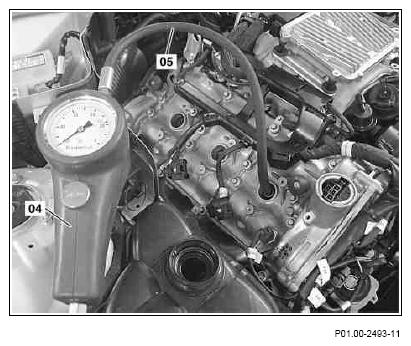

Fig 4: Fitting High-Pressure Testing Hose On Cylinder Leakage Tester
Courtesy of MERCEDES-BENZ USA
