Replace valve stem seals - AR05.30-P-3500-02VA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156, 272, 273

ENGINE 272.979 in MODEL 906

Fig 1: Identifying Pliers (606 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Drift (604 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

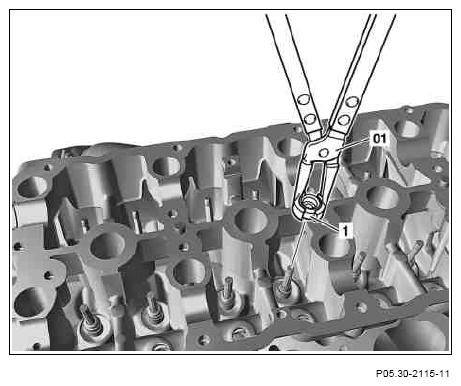

Use pliers (01) to pull off valve stem seals (1)
Check surface of valve stems for roughness and ridging. Replace valves with a rough stem surface or formation of burrs.
Shown on engine 273

Fig 3: Pulling Off Valve Stem Seals
Courtesy of MERCEDES-BENZ USA

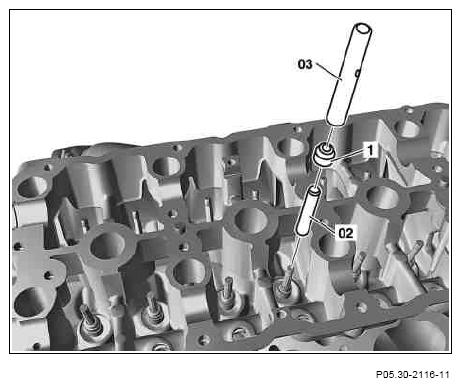

Fit protective sleeve (02) onto valve stem.
Oil valve stem seals (1).
Press on the valve stem seals (1) with ) drift (03).
Pull protective sleeve (02) off the valve stem.
Shown on engine 273

Fig 4: Protective Sleeve, Oil Valve Stem Seals And Protective Sleeve
Courtesy of MERCEDES-BENZ USA
