Remove/install outer support for panoramic front glass roof - AR77.21-P-0520EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 204.3, 207.3, 212.0/1/2 with CODE (413) Panoramic glass roof with top sliding roof
Shown on model 207.3, on left side of vehicle

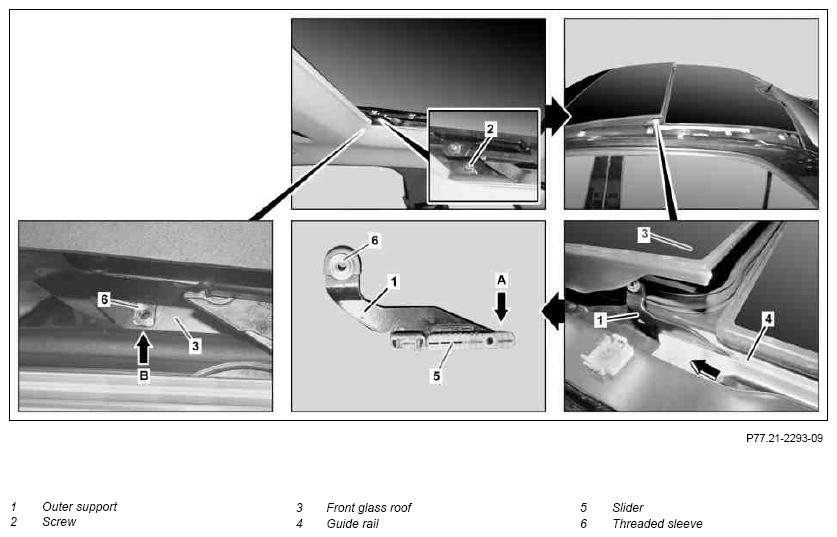

Fig 1: Outer Support For Panoramic Front Glass Roof Remove/Install Components - Shown On Model 207.3
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove left and right drip rail from panoramic sliding roof | Model 204.3, 207.3, 212.0/1 | AR88.80-P-4000EW |
| 2.1 | Remove upper and lower rubber on left and right form glass roof (3) at front | Model 204.3, 207.3, 212.0/1 | AR77.21-P-0530EW |
| 2.2 | Remove front glass roof from panoramic sliding roof | Model 166 | AR77.21-P-0500GQ |
| Model 212.2 | AR77.21-P-0500EW | ||
| 3 | Unscrew bolt (2) on left and right outer support (1) | ||
| 4 | Remove outer support (1) from guide rail (4) in direction of arrow | ||
| 5 | Install in the reverse order |
