Remove/install front panoramic glass roof - AR77.21-P-0500EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.3, 207.3, 212.0/1/2 with CODE (413) Panoramic glass roof with top sliding roof

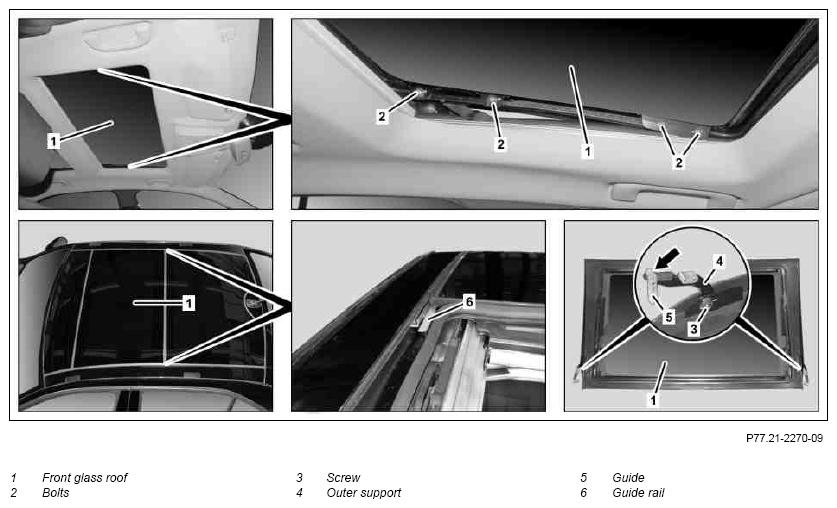

Shown on model 212.0
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove rubbers from front glass roof (1) | AR77.21-P-0530EW | |
| 2 | Remove screws (2) on both sides of front glass roof (1) | ||
| 3 | Pull front glass roof (1) with outer support (4) out from the guide rail and remove | ||
| 4 | Remove screws (3) on the left and right outer support (4) and remove outer support (4) | Only when replacing front glass roof (1). | |
| Check | |||
| 5 | Check front glass roof mechanism (1); grease if necessary | Lubricant paste | *BR00.45-Z-1004-06A |
| Install | |||
| 6 | Position left and right outer support (4) and tighten screws (3) | Only when replacing front glass roof (1). | |
| 7 | Insert outer support (4) of front glass roof (1) with the short side (arrow) of the guide (5) going in the guide rail (6) first | ||
| 8 | Align front glass roof in roof opening to the attachment points | ||
| 9 | Screw in bolts (2) on both sides up to contact surface | ||
| 10 | Adjust front glass roof (1). | AR77.21-P-0501EW |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
