Retrofit illuminated door sill molding - AZ82.20-P-0001ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/077/092) 1# up to 4/13/13, 212.2## (except 212.274/277/292) 1# up to 4/13/13 up to model year 2014

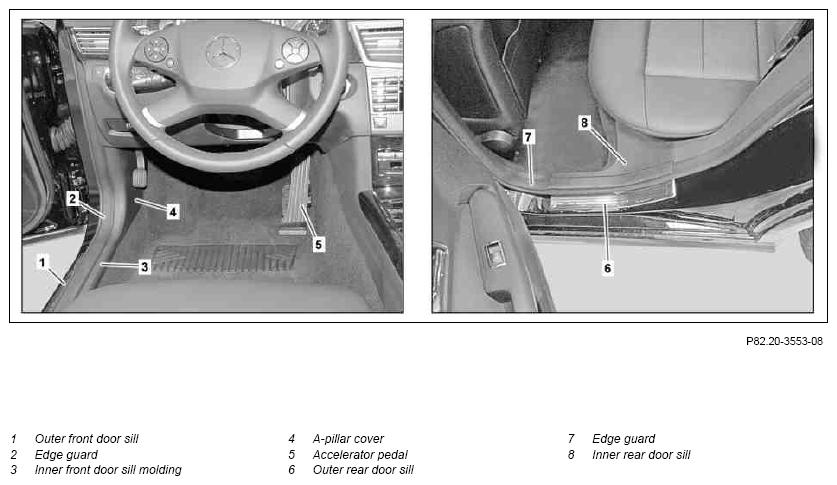

Fig 1: Door Sill Molding Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

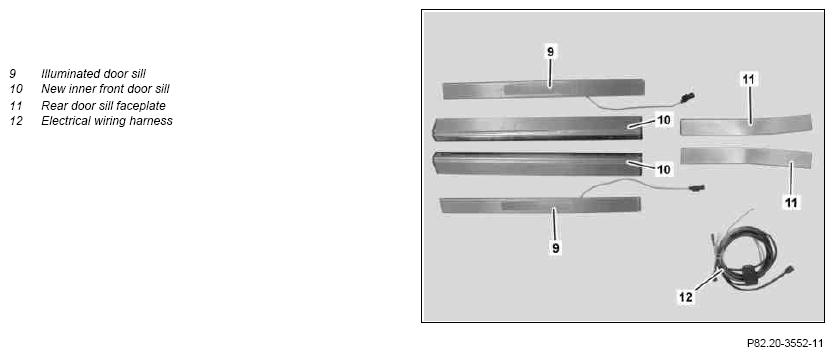

Fig 2: Door Sill Molding Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by contact with parts conducting high voltages.	Do not touch live parts. Persons who carry electronic implants (e.g. cardiac pacemakers) must not perform any work on these components.	AS00.00-Z-0020-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move back driver seat and front passenger seat
2	Disconnect battery ground line
			AR54.10-P-0003EW
3	Detach front SAM control unit with fuse and relay module and place to one side
			AR54.21-P-1260CW
4	Remove outer front door sills (1)	Outer front door sills (1) can be discarded.
5	Remove inner front door sills (3)
			AR68.30-P-4100EW
		Inner front door sills (3) can be discarded.
6	Detach edge guard (2) in left and right entrance area
7	Remove A-pillar paneling (4) from bottom of left and right A-pillar
8	Remove cover below left of instrument panel
9	Remove accelerator pedal (5)
			AR30.12-P-1321EW
10	Detach inner rear door sills (8) and detach edge guard (7) in entrance area
			AR68.30-P-4100EW
11	Clean outer rear door sills (6) to glue on rear door sill faceplates (11)	Cleaner	*BR00.45-Z-1025-04A
	Install
12	Detach protective foils from adhesive strips of left and right rear door sill faceplate (11)
13	Position and glue on left and right rear door sill faceplate (11) over the corresponding outer rear door sill (6)	Press on rear door sill faceplate (11) with a clean cotton cloth, beginning at one side.
14	Insert edge guard (7) and fasten inner rear door sills (8)
			AR68.30-P-4100EW
15	Retrofit electrical wiring harness (12) of illuminated door sill moldings (9)		AZ82.20-P-0001-04ES
		New passenger car wiring harness repair kit	Figure
		Wiring harness repair kit, basic	Figure
16	Retrofit illuminated door sill moldings (9)		AZ82.20-P-0001-01ES
17	Insert edge guard (2) and install new inner front door sills (10)
			AR68.30-P-4100EW
		Ensure that the ribbon cable of the illuminated door sill molding (9) lies close against the panel edge of the longitudinal member.
18	Install remaining parts	Operation step 8, 7, 6, 2.
19	Perform function check on illuminated door sill moldings (9)	Opening the doors activates the illuminated door sill moldings (9).
20	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Illuminated door sill moldings retrofitted as per AZ82.20-P-0001ES " note under field organization texts to design group 68.
21	Remove protective foils at illuminated door sill moldings (9), new inner front door sills (10) and rear door sill faceplates (11)

Fig 3: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Illuminated door sill moldings	1
