Install illuminated door sill - AZ82.20-P-0001-01ES

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## /2## 1#

Remove protective foils from adhesive strips (21) of door sill (9).
Do not touch bonding surfaces of adhesive strips (21) with fingers, otherwise the adhesive strength will be affected.

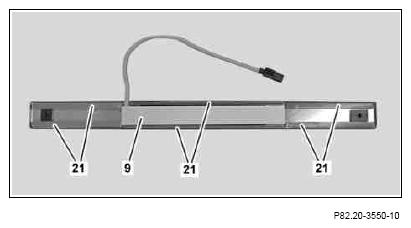

Fig 1: Illuminated Door Sill Adhesive Strips
Courtesy of MERCEDES-BENZ USA

In the picture, the installation of the door sill (9) is shown on the right side. Installation on the left-hand side takes place in the same manner.
Clean longitudinal member in area of bonding surface for door sill (9).
The area to be glued must be free of dust and grease.
Align guide pins (arrows A) of door sill (9) through openings (arrows B) in longitudinal member and at the same time tentatively place ribbon cable (22) for door sill (9) in installation position.

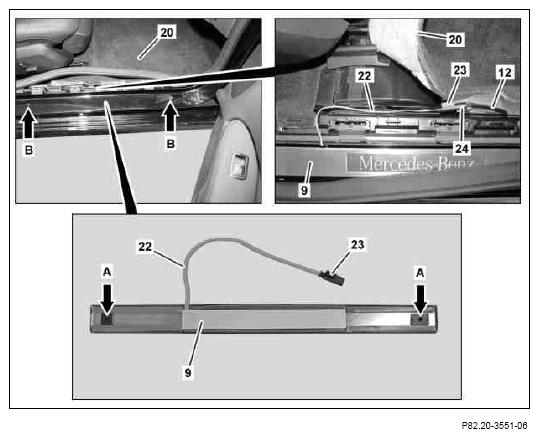

Fig 2: Installing Door Sill
Courtesy of MERCEDES-BENZ USA
Evenly lower door sill (9) until guide pins (arrows A) are fixed in place in openings (arrows B).
Completely lower door sill (9) and glue it on.
When installing the door sill (9), ensure that the ribbon cable (22) is not twisted or pinched.
Press door sill (9) onto longitudinal member using a clean cotton cloth, beginning at one side.
Lift floor covering (20) in area of longitudinal member and connect black connector housing (24) from wiring harness (12) with black coupling housing (23) of ribbon cable (22) from door sill (9).
Fix ribbon cable (22) and connector in place at inside of longitudinal member with adhesive strips.
