Retrofit iPod interface with video function - AZ82.60-P-0017EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## (except 212.074/077) 1# up to 5/31/12, 212.2## (except 212.274/277) 1# up to 5/31/12 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 088 (Control code NTG 4.5) without CODE 218 (Reversing camera) without CODE 498 (Japanese version) without CODE 518 (Media Interface)
MODEL 212.0## (except 212.074/077) 1# up to 5/31/12, 212.2## (except 212.274/277) 1# up to 5/31/12 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 218 (Reversing camera) without CODE 498 (Japanese version) without CODE 518 (Media Interface)
| Remove | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove COMAND controller unit | ||
| AR82.60-P-7502EW | |||
| 2 | Remove glove box | ||
| AR68.10-P-1200EW | |||
| Install | |||
| 3 | Install iPod wiring harness and iPod interface (2) | AZ82.60-P-0001-02EWA | |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Hand drill (with chuck up to 16 mm dia.) | |||
| 4 | Install glove box | ||
| AR68.10-P-1200EW | |||
| 5 | Install COMAND controller unit | ||
| AR82.60-P-7502EW | |||
| 6 | Connect Star Diagnosis | ||
| 7 | Enable video AUX function in COMAND controller unit by means of variant coding with XENTRY | ||
| 8 | Disconnect STAR DIAGNOSIS | ||

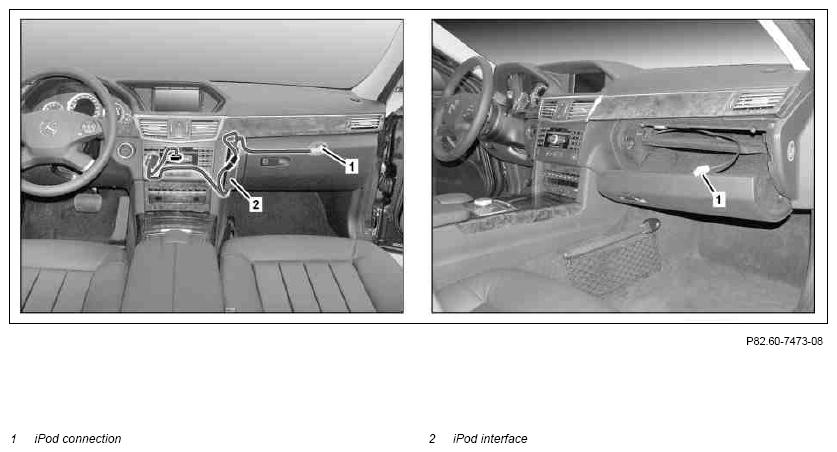

| 9 | Connect iPod to iPod connection (1) and perform function check of system |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (see EPC) | Electrical system and function | 1 |
