Retrofit iPod wiring harness - AZ82.60-P-0001-02EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## /2## (except 212.077 /277) 1# with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (218) Backup camera
MODEL 212.0## /2## (except 212.077 /277) 1# with CODE (512) COMAND APS with DVD changer except CODE (218) Backup camera

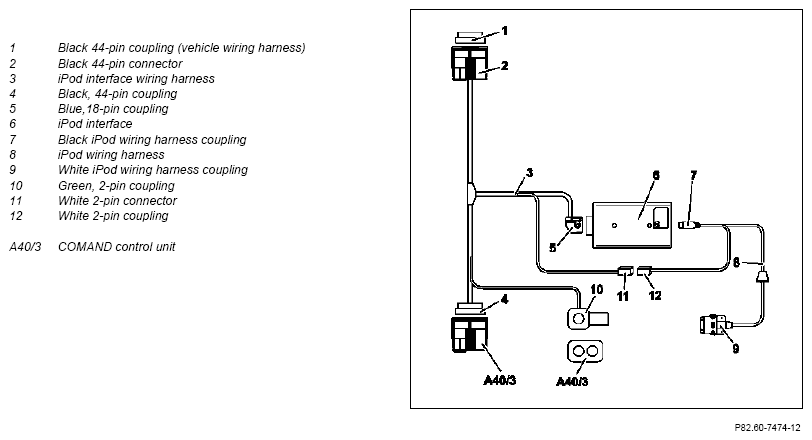

Connection scheme

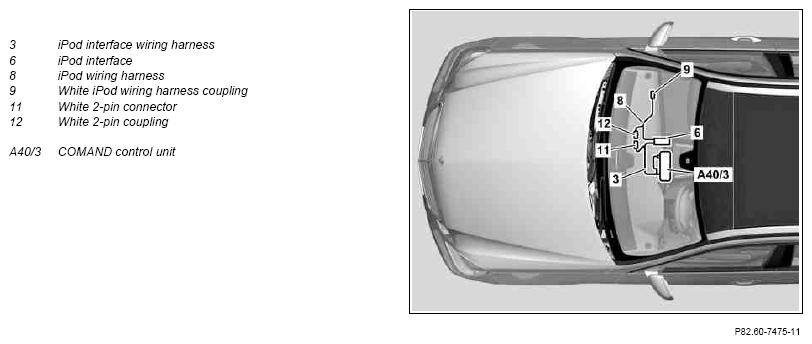

Routing diagram

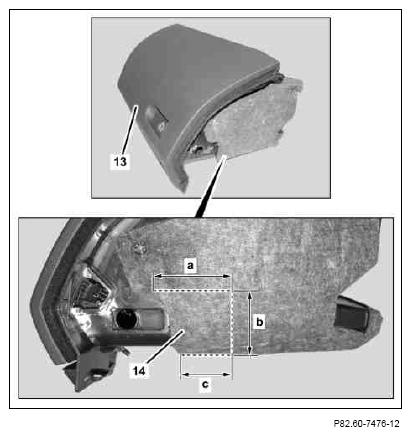

- Finish cutout on insulation mat (14) on left on glove compartment (13).
Dimensions:
- Make a mark on the left at glove compartment (13) corresponding to dimensions "d" and "e".
Dimensions:
d = 30 mm
e = 100 mm

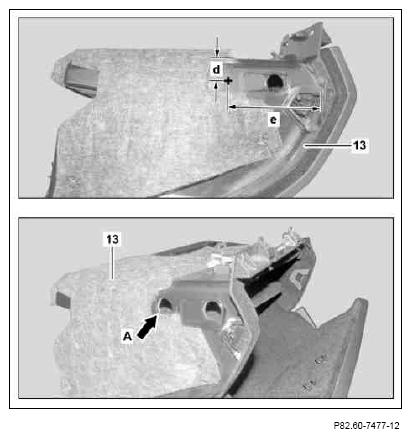

- Drill hole (arrow A) with a diameter of 19 mm corresponding to the mark made beforehand on the left at glove compartment (13).
Cordless drill/driver
- Open cover of glove compartment (13).

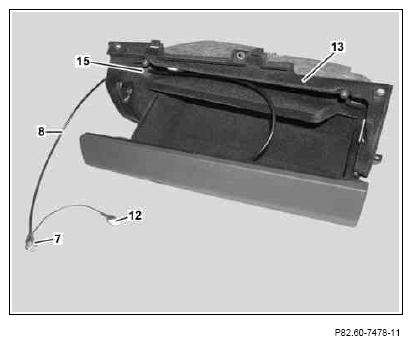

- Route iPod wiring harness (8) in glove compartment (13) and route black iPod wiring harness coupling (7) as well as the white, 2-pin coupling (12) of iPod wiring harness (8) to the outside through previously drilled hole.
- Insert grommet (15) into hole.

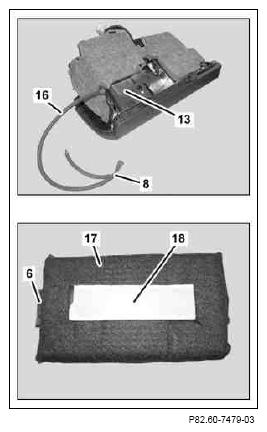

- Wrap felt tape (16) around iPod wiring harness (8), beginning at glove compartment (13).
- Wrap felt tape (17) around iPod interface (6) as shown.
Leave a cutout free for adhesive strips (18) included in package contents.
- Stick adhesive strips (18) included in package contents, as shown, onto iPod interface (6).
-
- 10.1)

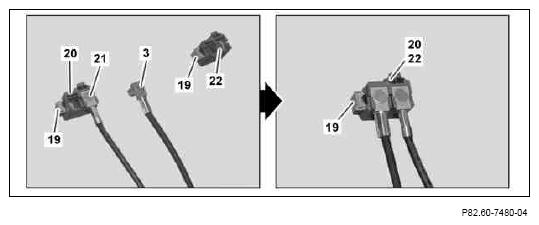

Release lock (19) of contact cavity 1 on housing (22) included as part of the package contents, insert coupling of iPod wiring harness (3) into contact cavity 1 and close lock (19) again.
On vehicles without code (610) Night View Assist.
- 10.2)
Release lock (19) of contact cavity 1 on green housing (20) of the Night View Assist (21) line located in the radio recess, insert coupling for iPod interface wiring harness (3) into contact cavity 1 and close lock (19).
On vehicles with code (610) Night View Assist.
- 10.1)
Release lock (19) of contact cavity 1 on housing (22) included as part of the package contents, insert coupling of iPod wiring harness (3) into contact cavity 1 and close lock (19) again.
- Remove fiber optic cable (23) from black, 44-pin coupling (1) and install at same position in black 44-pin coupling (4).
Only if installed.

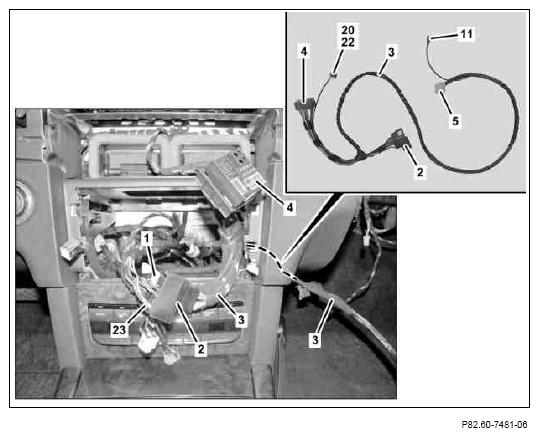

- Connect black 44-pin connector (2) of iPod interface wiring harness (3) to black 44-pin coupling (1) of vehicle wiring harness.
The black 44-pin coupling (4) and the coupling with the green housing (20 or 22) will be connected to the removed COMAND controller unit at a later point.

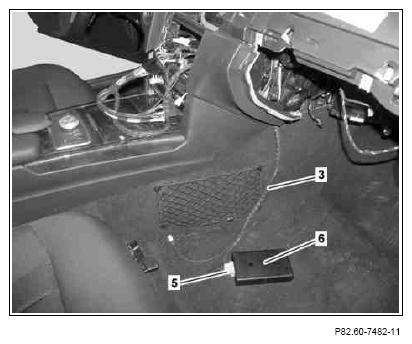

- Route blue, 18-pin coupling (5) and white, 2-pin connector (11) of wiring harness for iPod interface (3) to right under instrument panel.
- Wrap iPod interface wiring harness (3) with felt tape.
- Connect blue, 18-pin coupling (5) of iPod interface wiring harness (3) to iPod interface (6).

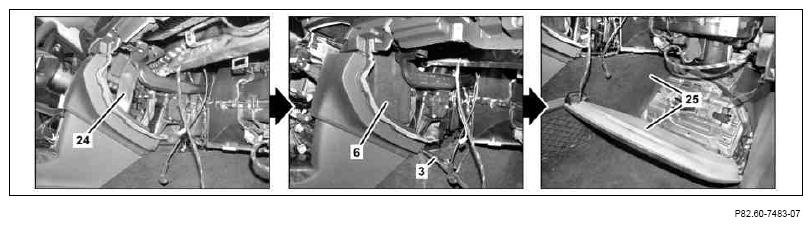

- Remove protective foil from adhesive strip at iPod interface (6) and glue iPod interface (6) to cable duct (24).
- Fold floor covering (25) to one side and route iPod interface wiring harness (3) behind this.

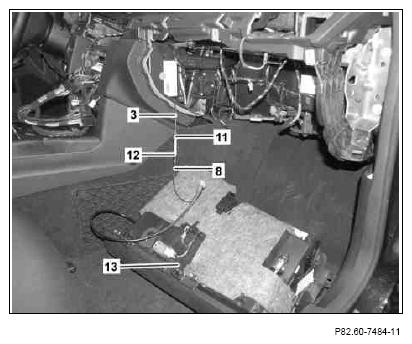

- Place glove compartment (13) in front passenger footwell.
- Connect white 2-pin connector (11) of wiring harness for iPod interface (3) with white 2-pin coupling (12) of wiring harness for iPod (8).

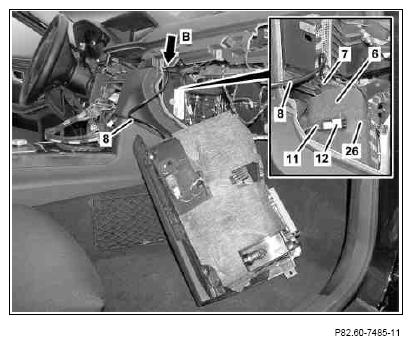

- Connect black iPod wiring harness coupling (7) of iPod wiring harness (8) at top (arrow B) to iPod interface (6).
- Attach white, 2-pin coupling (12) and white, 2-pin plug (11), as shown, using felt tape (26) onto the iPod interface (6).
