Retrofit iPod interface - AZ82.60-P-0014EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## (except 212.074/077) 1# up to 5/31/12, 212.2## (except 212.274/277) 1# up to 5/31/12 with CODE 510 (Audio 20 with CD changer) with CODE 511 (Audio 50 APS with DVD changer) with CODE 523 (Audio 20 CD radio) with CODE 525 (Audio 50 APS) without CODE 498 (Japanese version) without CODE 518 (Media Interface)
MODEL 212.0## (except 212.074/077) 1# up to 5/31/12, 212.2## (except 212.277) 1# up to 5/31/12 with CODE 218 (Reversing camera) with CODE 512 (COMAND APS with DVD changer) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 088 (Control code NTG 4.5) without CODE 498 (Japanese version) without CODE 518 (Media Interface)
| Remove | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove radio | ||
| Remove/install radio | AR82.60-P-7502EW | ||
| 2 | Remove glove box | ||
| Remove/install glove compartment lid | AR68.10-P-1200EW | ||
| Install | |||

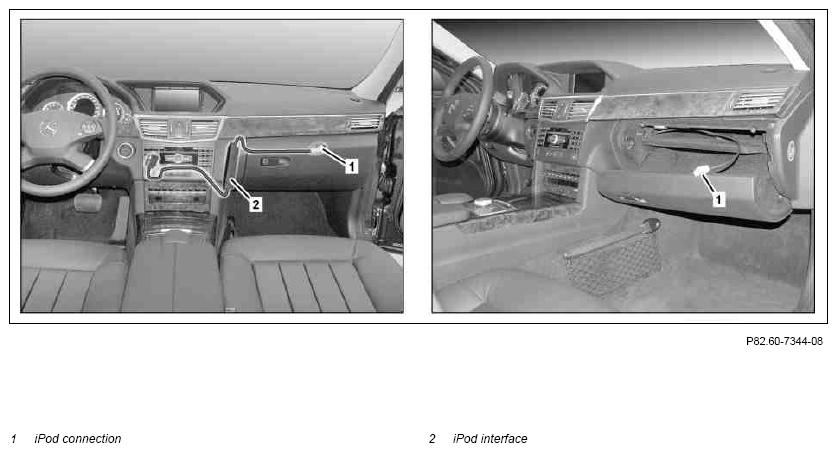

| 3 | Install iPod wiring harness and iPod interface (2) | Retrofit iPod wiring harness | AZ82.60-P-0001-02EW |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Rechargeable screwdriver, rechargeable drill | |||
| 4 | Install glove box | ||
| AR68.10-P-1200EW | |||
| 5 | Install radio | ||
| Remove/install radio | AR82.60-P-7502EW | ||
| 6 | Connect iPod to iPod connection (1) and perform function check of system |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (see EPC) | Electrical system and function | 1 |
