Retrofit iPod wiring harness - AZ82.60-P-0001-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## /2## (except 212.077 /277) 1# with CODE (523) MB Audio 20 radio with CODE (510) Audio 20 with CD changer with CODE (525) MB Audio 50 APS radio with CODE (511) Audio 50 APS with DVD changer except CODE (518) Media interface

MODEL 212.0## /2## (except 212.077 /277) 1# with CODE (527) COMAND APS with single DVD drive (with navigation) with CODE (512) COMAND APS with DVD changer with CODE (218) Backup camera except CODE (518) Media interface

Connection scheme

Fig 1: Ipod Wiring Harness Connection Schematic

Courtesy of MERCEDES-BENZ USA

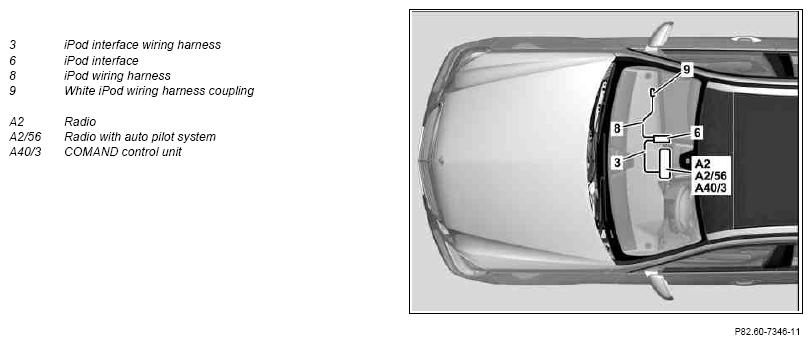

Routing diagram

Fig 2: Ipod Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ USA

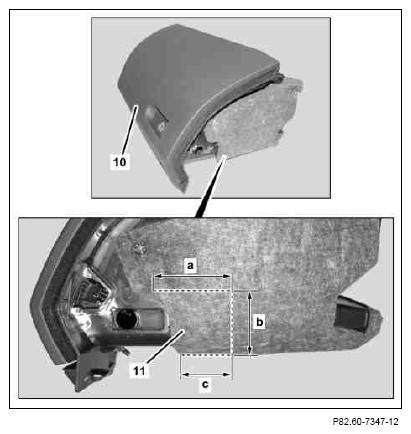

Finish cutout on insulation mat (11) on left on glove compartment (10).
Dimensions:

Fig 3: Glove Compartment Insulation Mat Dimension
Courtesy of MERCEDES-BENZ USA

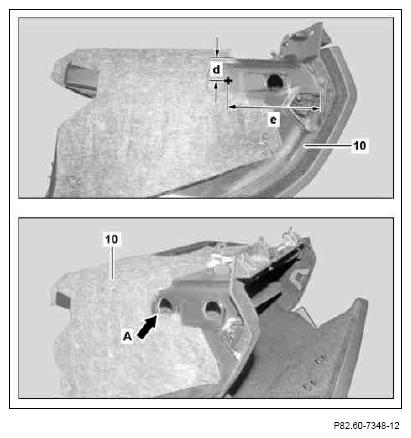

Make a mark on left on glove compartment (10).
Dimensions:

d = 30 mm

e = 100 mm
Drill bore (arrow A) with a diameter of 19 mm corresponding to the mark made beforehand on the left at glove compartment (10).
Cordless drill/driver

Fig 4: Glove Compartment Dimensions
Courtesy of MERCEDES-BENZ USA

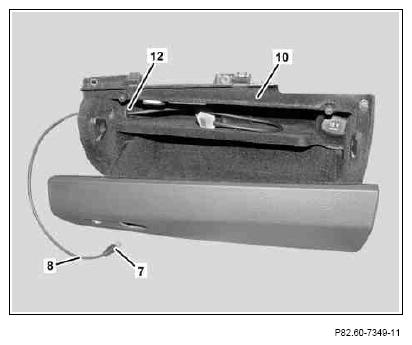

Open cover of glove compartment (10).
Route iPod wiring harness (8) in glove compartment (10) and route black iPod wiring harness coupling (7) of iPod wiring harness (8) to the outside through previously drilled hole.
Insert grommet (12) into hole.

Fig 5: Routing Ipod Wiring Harness In Glove Compartment
Courtesy of MERCEDES-BENZ USA

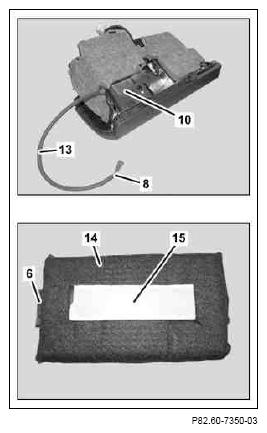

Wrap iPod wiring harness (8) in felt tape (13), beginning at glove compartment (10).
Wrap iPod interface (6) with felt tape (14) as shown.
Leave a cutout free for adhesive strips (15) included in package contents.
Stick adhesive strips (15) included in package contents, as shown, onto iPod interface (6).

Fig 6: Ipod Wiring Harness And Glove Compartment
Courtesy of MERCEDES-BENZ USA

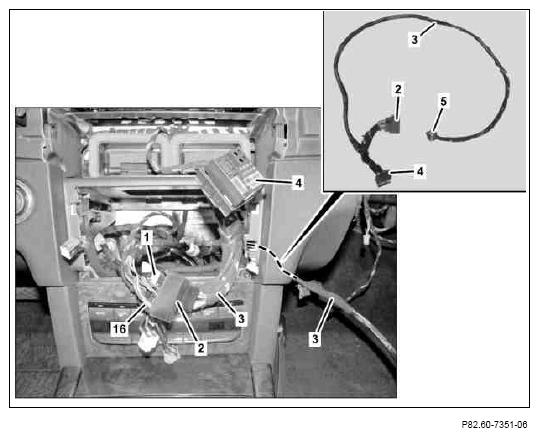

Remove fiber optic cable (16) from black 44-pin coupling (1) and install at same position in black 44-pin coupling (4).
Only if installed.
Connect black 44-pin connector (2) of iPod interface wiring harness (3) to black 44-pin coupling (1) of vehicle wiring harness.
The black, 44-pin coupling (4) is connected at a later stage.

Fig 7: Fiber Optic Cable Coupling And Connector
Courtesy of MERCEDES-BENZ USA
Route black 18-pin coupling (5) of iPod interface wiring harness (3) to the right below the instrument panel.
Connect black 18-pin coupling of iPod interface wiring harness (3) to iPod interface (6).
Wrap iPod interface wiring harness (3) with felt tape.

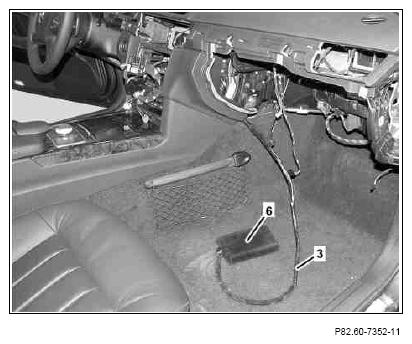

Fig 8: Ipod Interface & Wiring Harness
Courtesy of MERCEDES-BENZ USA

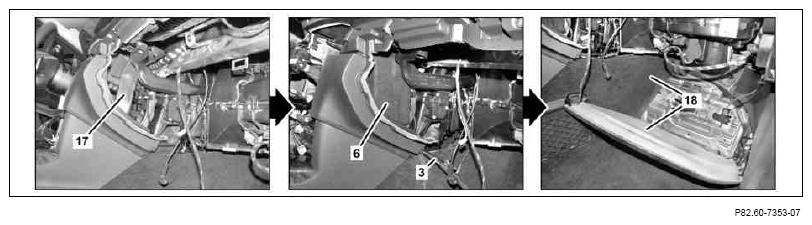

Fig 9: Floor Covering, Cable Duct, Ipod Interface And Wiring Harness
Courtesy of MERCEDES-BENZ USA
Remove protective foil from adhesive strip at iPod interface (6) and glue iPod interface (6) to cable duct (17).
Fold floor covering (18) to one side and route iPod interface wiring harness (3) behind this.
Place glove compartment (10) in front passenger footwell.

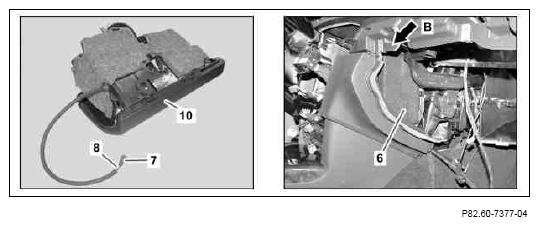

Connect black iPod wiring harness coupling (7) of iPod wiring harness (8) at top (arrow B) to iPod interface (6).

Fig 10: Ipod Wiring Harness Coupling Of Ipod Wiring Harness
Courtesy of MERCEDES-BENZ USA
