Retrofit Audio 50 APS with DVD changer - AN82.61-P-0007EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 5/31/13, 212.2## (except 212.274/275/276/277/292) 1# up to 5/31/13 up to model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 5/31/13, 212.2## (except 212.274/275/276/277/292) 1# up to 5/31/13 up to model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 212.0## (except 212.074/075/076/077/092) 1# up to 5/31/13, 212.2## (except 212.274/275/276/277/292) 1# up to 5/31/13 up to model year 2012 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

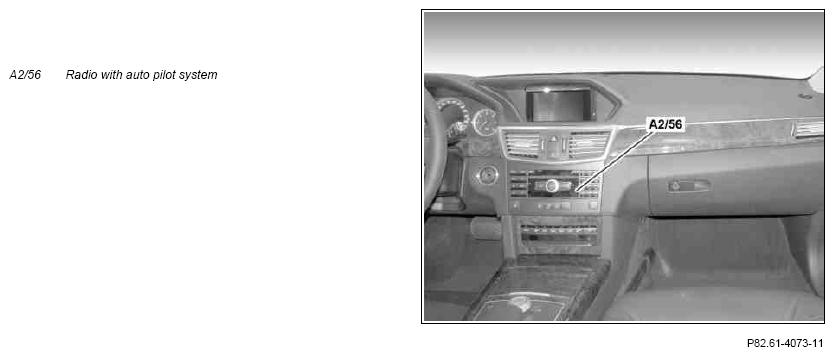

Fig 1: Radio With Auto Pilot System

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove Audio 20 radio or Audio 20 radio with CD changer or Audio 50 APS radio with auto pilot system (A2/56)
			AR82.60-P-7502EW
		The removed audio component is no longer required.
2	Remove instrument cluster	In vehicles with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio
			AR54.30-P-6015EW
	Install
3	Retrofit antenna for global positioning system (GPS)	In vehicles with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio
			AN82.61-P-7474-04EW
4	Install instrument cluster	In vehicles with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio
			AR54.30-P-6015EW
5	Retrofit Audio 50 APS radio with auto pilot system (A2/56) with DVD changer
			AR82.60-P-7502EW
6	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Delete: CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio) or CODE 525 (MB Audio 50 APS radio) Add: CODE 511 (Audio 50 APS with DVD changer)
7	Document retrofitted equipment in VeDoc	Attach note "Audio 50 APS with DVD changer retrofitted as per AN82.61-P-0007EW" to design group 82 under field organization texts.
8	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
9	Perform variant coding with XENTRY using the software calibration number (SCN)
10	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
11	Perform function test	See operating instructions of Audio 50 APS radio with auto pilot system (A2/56) with DVD changer.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 99 (see EPC)	Audio 50 APS with DVD changer package	1
