Remove/install radial shaft sealing ring at output flange - AR27.40-P-0205EH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 724.2
MODIFICATION NOTES
| 9.9.14 | Flexible coupling on transmission/rear axle differential or propeller shaft | BA41.10-P-1001-01L |
Shown on model 212.095

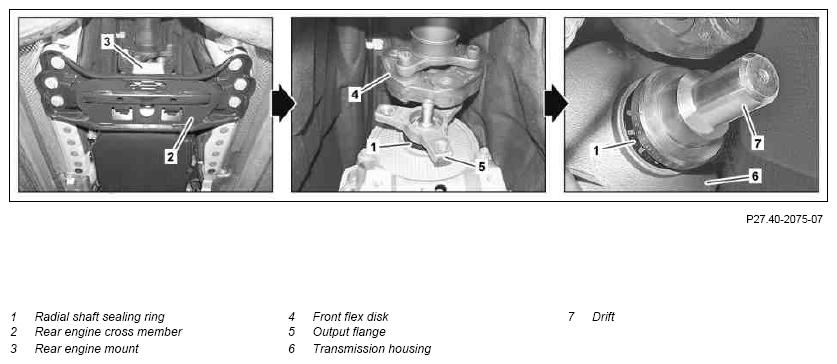

Fig 1: Radial Shaft Sealing Ring At Output Flange Remove/Install Components - Shown On Model 212.095
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||
| 1 | Set transmission to "N" position and release parking brake | ||
| 2 | Remove engine vacuum duct | TRANSMISSION 724.2 in MODEL 222 with ENGINE 276.9 | |
| 3.1 | Remove relevant lower engine compartment paneling | TRANSMISSION 724.2 in MODEL 205, 222 TRANSMISSION 724.2 in MODEL 212 with ENGINE 276 |
|
| TRANSMISSION 724.2 in MODEL 205 | AR61.20-P-1105LW | ||
| TRANSMISSION 724.2 in MODEL 222 | AR61.20-P-1105LF | ||
| TRANSMISSION 724.2 in MODEL 212.095/195 with ENGINE 276 | AR61.20-P-1105EW | ||
| 3.2 | Remove bottom sections of soundproofing | TRANSMISSION 724.2 in MODEL 212 with ENGINE 651 | |
| AR94.30-P-5300EW | |||
| 4 | Remove bracket of lower engine compartment paneling under transmission | TRANSMISSION 724.2 in MODEL 222 | |
| 5.1 | Remove left and right catalytic converter from brackets at transmission | TRANSMISSION 724.2 in MODEL 222 with ENGINE 276.9 | |
| AR49.10-P-7100LF | |||
| 5.2 | Remove catalytic converter diesel particulate filter | TRANSMISSION 724.2 in MODEL 222 with ENGINE 651 | |
| AR49.10-P-5501OLF | |||
| 6 | Support and lash down transmission | ||
| 7 | Remove rear engine cross member (2) together with rear engine mount (3) | TRANSMISSION 724.2 in MODEL 205 with ENGINE 651 | AR22.10-P-1180LWB |
| TRANSMISSION 724.2 in MODEL 222 with ENGINE 651 | AR22.10-P-1180OLF | ||
| TRANSMISSION 724.2 in MODEL 222 with ENGINE 276.9 | AR22.10-P-1180LF | ||
| TRANSMISSION 724.2 in MODEL 212 with ENGINE 276 | AR22.10-P-1180CW | ||
| TRANSMISSION 724.2 in MODEL 212.098/298 with ENGINE 651 | AR22.10-P-1180EH | ||
| 8 | Mark front flexible coupling (4) in relation to output flange (5) in color and detach | TRANSMISSION 724.2 in MODEL 205 | AR41.10-P-0040-01LW |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| TRANSMISSION 724.2 in MODEL 222 | AR41.10-P-0040-01LF | ||
| TRANSMISSION 724.2 in MODEL 212 | AR41.10-P-0050EW | ||
| Drift for releasing the fitting sleeves in the flexible couplings | WF58.50-P-4110-01A | ||
TRANSMISSION 724.2 in MODEL 205 |
*BA41.10-P-1001-01L | ||
TRANSMISSION 724.2 in MODEL 222 |
*BA41.10-P-1001-01J | ||
| 9 | Lower transmission slightly | ||
| 10 | Remove output flange (5) | AR27.50-P-0620-02W | |
| *BA27.10-P-1014-04G | |||
| Fig 4 | |||
| Fig 3 | |||
| Fig 2 | |||
| Check | |||
| 11 | Check output flange (5) | In event of galling, corrosion or damage: ↓ Replace output flange (5). |
|
| 12 | Pry out radial shaft sealing ring (1) out of transmission housing (6) using a wide screwdriver | ||
| Fig 5 | |||
| 13 | Install in the reverse order | ||
| Check | |||
| 14 | Check oil level in transmission and correct | AR27.00-P-0270EH | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Test run engine and check transmission for leaktightness and proper operation |
COMPLETE AUTOMATIC TRANSMISSION
| Number | Designation | TRANSMISSION 724.2 | |
|---|---|---|---|
| BA27.10-P-1014-04G | Collar nut, output flange to output shaft | Nm | 200 |
PROPELLER SHAFT
| Number | Designation | MODEL 222 | ||
|---|---|---|---|---|
| BA41.10-P-1001-01J | Self-locking nut, flex disk to transmission or front propeller shaft | M12 | Nm | 68 |
PROPELLER SHAFT
| Number | Designation | MODEL 205 | |||
|---|---|---|---|---|---|
| BA41.10-P-1001-01L | Flexible coupling on transmission/rear axle differential or propeller shaft | Self-locking nut | Nm | 68 | |
| Direct threaded connection | Stage 1 | Nm | 60 | ||
| Stage 2 | ∠° | 90 | |||
