Removing and installing output flange - AR27.50-P-0620-02W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6/9, 724.2

TRANSMISSION 725.0 in MODEL 166, 172, 205, 207, 213, 217, 218, 222, 231, 238, 253, 292

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation		Transmission 724.2
BA27.10-P-1014-04G	Collar nut, output flange to output shaft	Nm	200

GEAR ASSEMBLY

Number	Designation		Transmission 722.55/6/9
BA27.50-P-1001-01A	Collar nut, output flange to output shaft	Nm	200

COMPLETE TRANSFER CASE

Number	Designation		Model 218 with transmission 725.04
BA28.10-P-1006-01G	Nut, output flange to transfer case	Nm	200

Fig 1: Identifying Pin Wrench (129 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller, Two-Arm (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench Bit (126 589 02 09 00)

Courtesy of MERCEDES-BENZ USA

Remove output flange (1).

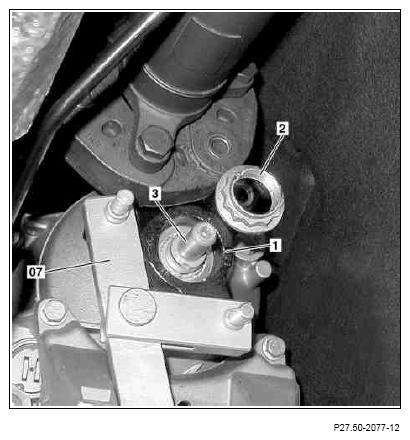

Counter-hold output flange (1) with socket wrench (07).
Unscrew twelve-point collar nut (2) from output shaft (3) with socket.

Fig 4: Removing Twelve-Point Collar Nut From Output Shaft With Socket
Courtesy of MERCEDES-BENZ USA
Remove output flange (1).

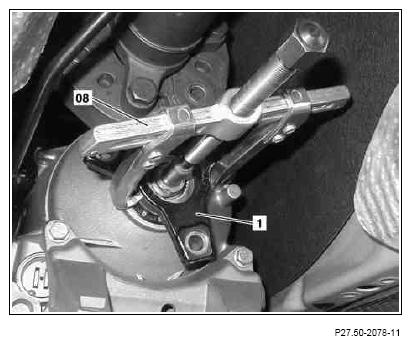

If output flange (1) is too firmly attached, use two-armed puller (08).

Fig 5: Removing Output Flange
Courtesy of MERCEDES-BENZ USA

Install output flange (1).
Push output flange (1) onto output shaft (3).
Counterhold output flange (1) using pin wrench (07) and tighten twelve-point nut (2) using socket wrench bit. Transmission 725.04 in model 218
Transmission 722.6/9

Transmission 724.2

Replace twelve-point nut (2).

Fig 6: Output Flange, Pin Wrench, Twelve-Point Nut & Output Flange
Courtesy of MERCEDES-BENZ USA

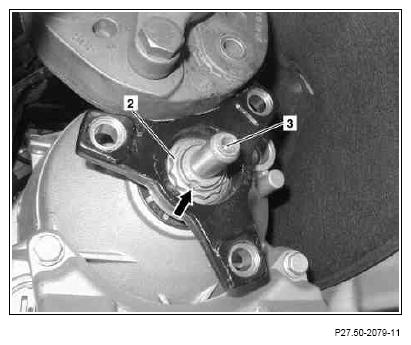

Secure twelve-point collar nut (2); to do so, hammer collar into grooves of output shaft (3) using a punch (arrow).
On the output shaft (3), there are two grooves, into which the collar of the twelve-point collar nut (2) must be hammered (arrow).

Fig 7: Securing Twelve-Point Collar Nut
Courtesy of MERCEDES-BENZ USA
