Overview of system components, electric seats - GF91.29-P-9992FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

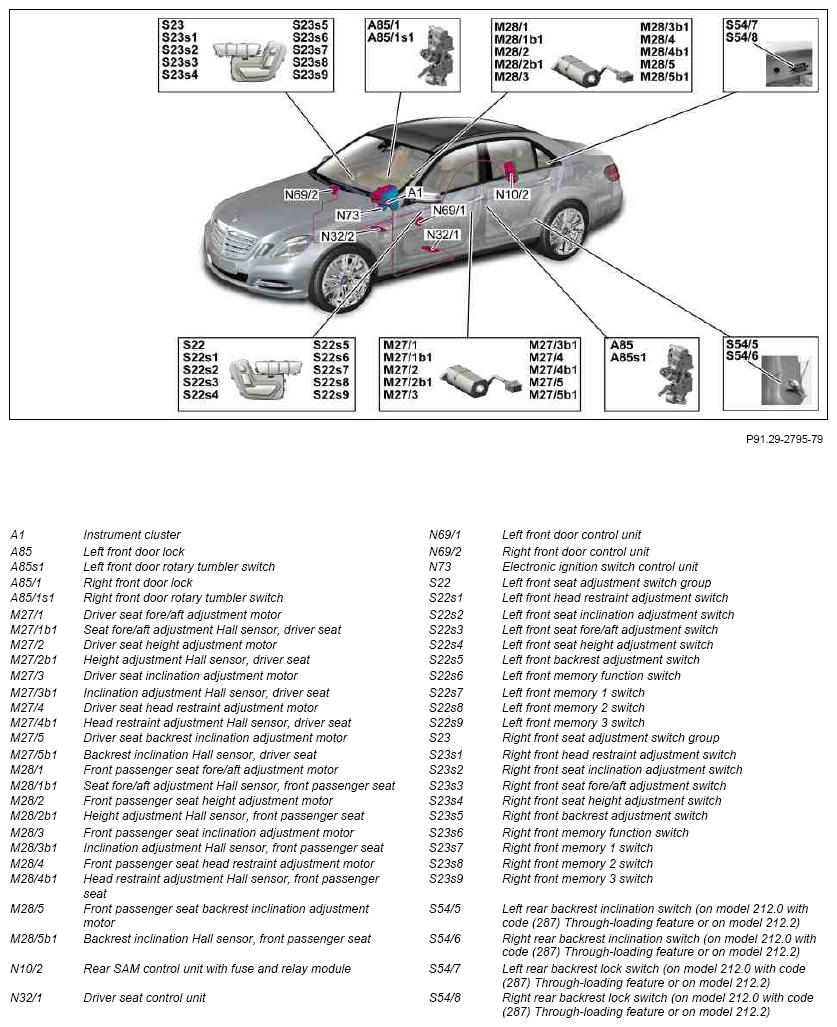

Electrical seat adjustment (ESA) (with code (275) Memory package for electrically adjustable front seats), shown on model 212.0

Fig 1: Overview Of System Components, Electric Seats - With Code 275

Courtesy of MERCEDES-BENZ USA

Electrical seat adjustment (ESA) (without code (275) Memory package for electrically adjustable front seats), shown on model 212.0

Fig 2: Overview Of System Components, Electric Seats - Without Code 275

Courtesy of MERCEDES-BENZ USA

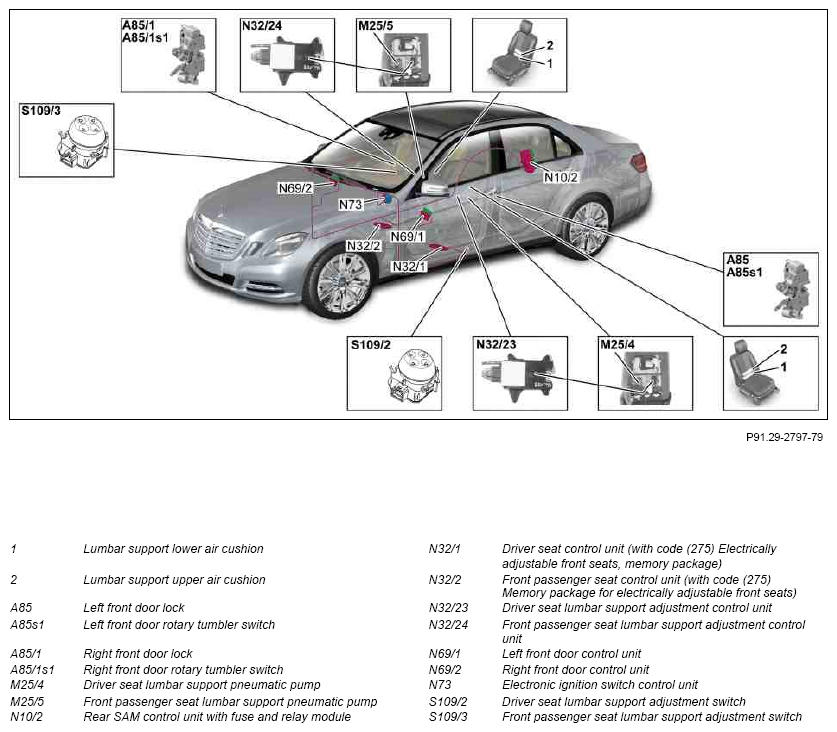

Lumbar support adjustment (without code (409) Left/right front multicontour seats and without code (432) Left and right dynamic multicontour seat), shown on model 212.0

Fig 3: Overview Of System Components, Electric Seats - Lumbar Support Adjustment Without Code 409

Courtesy of MERCEDES-BENZ USA

Multicontour seat (MKS) (with code (409) Left/right front multicontour seats), shown on model 212.0

Fig 4: Overview Of System Components, Electric Seats - Multicontour Seat With Code 409

Courtesy of MERCEDES-BENZ USA

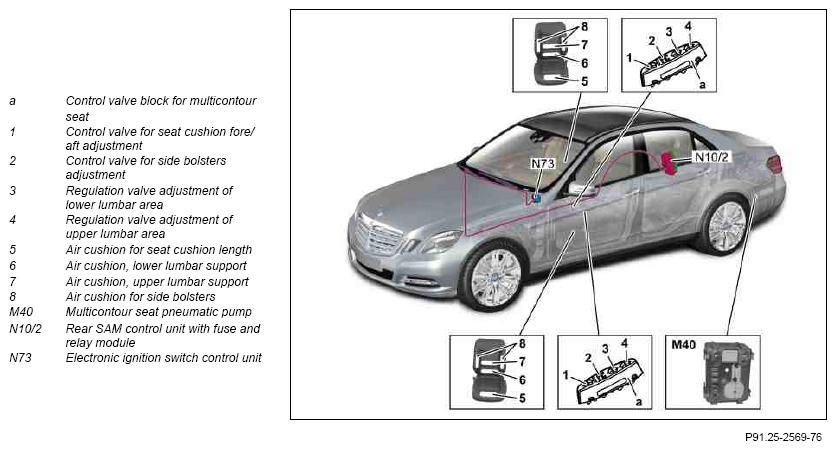

Dynamic multicontour seat (with code (432) Left and right dynamic multicontour seat), shown on model 212.0

Fig 5: Overview Of System Components, Electric Seats - Dynamic Multicontour Seat With Code 432

Courtesy of MERCEDES-BENZ USA

In vehicles with code (494) USA version only the driver seat is a dynamic multicontour seat.

Retractable rear head restraints (RHR [KAF]) (on model 212.0/1), shown on model 212.0

Fig 6: Overview Of System Components, Electric Seats - Retractable Rear Head Restraints

Courtesy of MERCEDES-BENZ USA

Electrically adjustable steering column (ESC [EVL]) (with code (275) Memory package for electrically adjustable front seats), shown on model 212.0

Fig 7: Overview Of System Components, Electric Seats - Electrically Adjustable Steering Column

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000FL
Pneumatic pump for dynamic multicontour seat, component description	MODEL 212.0/1/2 with CODE 432 (Left and right dynamic multicontour seat) M40/1	GF91.25-P-5208FL
Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080FL
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070FL
Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030FL
Component description for Electronic Stability Program control unit	MODEL 212.0 (except 212.095/098), 212.1, 212.2 (except 212.298) up to model year 2014 N304, N307	GF42.45-P-5119FL
	MODEL 212.0 (except 212.095/098), 212.1, 212.2 (except 212.298) as of model year 2014 N304, N307	GF42.45-P-5119FLM
Component description for regenerative braking system control unit	MODEL 212.095/098/298 up to model year 2014 N30/6	GF42.22-P-1100FLH
	MODEL 212.095/098/298 as of model year 2014 N30/6	GF42.22-P-1100FLM
Component description for driver seat control unit	MODEL 212 with CODE 275 (Electrically adjustable front seats memory package) N32/1	GF91.29-P-5231FL
Component description for front passenger seat control unit	MODEL 212 with CODE 275 (Electrically adjustable front seats memory package) N32/2	GF91.29-P-5241FL
Dynamic multicontour seat control unit, component description	MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) N32/19, N32/22	GF91.25-P-5210FL
Component description for lumbar support control unit	MODEL 212 without CODE 409 (Left/right front multicontour seat) without CODE 432 (Left and right dynamic multicontour seat) N32/23, N32/24	GF91.29-P-5281FL
Component description for left front door control unit	N69/1	GF72.29-P-6001FL
Component description for right front door control unit	N69/2	GF72.29-P-6009FL
Upper control panel control unit, component description	N72/1	GF54.21-P-6040FL
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001FL
Component description for steering column tube module control unit	N80	GF54.21-P-6051FL
