Dynamic multicontour seat control unit, component description - GF91.25-P-5210FL

MODEL 212 with CODE 432 (Left and right dynamic multicontour seat)

Shown on left seat

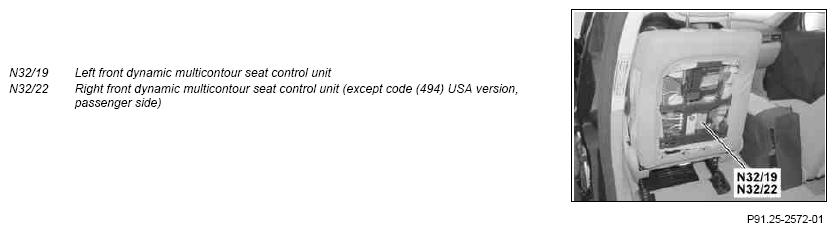

Fig 1: Left Front Dynamic Multicontour Seat Control Unit - Shown On Left Seat

Courtesy of MERCEDES-BENZ USA

Location

The dynamic multicontour seat control unit is located centrally in the backrest frame of the front seat.

In vehicles with code (494) USA version only the driver seat is a dynamic multicontour seat.

Tasks

• Inflation and deflation of the multicontour seat air cushions
• Control of the massage function
• Actuation of the dynamic lateral support
• Reading in of voltage-coded signals of the driver dynamic multicontour seat button group (S109) or front passenger dynamic multicontour seat button group (S108)
• Communication with other control units through interior CAN (CAN B)
• Adjustment of stored pressure values when memory function and storage of actual contours (with code (275) Memory package (electrically adjustable front seats)
• Function monitoring

The tasks are subdivided as follows:

• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Interior CAN

Direct line

The signals of the following components are read in from the respective dynamic multicontour seat control unit via direct lines:

• Driver dynamic multicontour seat button group
• Front passenger dynamic multicontour seat button group
• Limit switch in the left front massage function actuator motor (M94)
• Limit switch in the right front massage function actuator motor (M95)

Interior CAN

The dynamic multicontour seat control units communicate with the following control units over the interior CAN:

• Driver seat control unit (N32/1) or front passenger seat control unit (N32/2) (adjustment and storage of seat contours) (with code (275) Memory package for electrically adjustable front seats)
• Dynamic multicontour seat pneumatic pump (M40/1) (control of the compressed air supply)
• Front SAM control unit with fuse and relay module (N10/1) as Gateway for the dynamic and PRE-SAFE® function

Evaluation of input factors

The input factors read in are evaluated by the dynamic multicontour seat control unit and the relevant components are actuated.

Actuation of components

The actuation of the components takes place via the following connections:

• Direct line
• Interior CAN

Direct line

The following components are actuated by the respective dynamic multicontour seat control unit via direct lines:

• LED in the dynamic multicontour seat button group (function feedback)
• Front seat massage function actuator motor
• Main valve in front seat massage function actuator motor

The air cushions in the seats are inflated and deflated using the piezo valves integrated into the dynamic multicontour seat control units. The actuation of the air cushion rows in the massage insert is done through the corresponding seat massage function actuator motor, regulated by the respective dynamic multicontour seat control unit.

Interior CAN

The dynamic multicontour seat control units communicate with the dynamic multicontour seat pneumatic pump over the interior CAN in order to regulate the compressed air supply.

Body

Pressure sensors and piezo valves are integrated in the dynamic multicontour seat control unit.
