Component description for lumbar support control unit - GF91.29-P-5281FL

MODEL 212 without CODE 409 (Left/right front multicontour seat) without CODE 432 (Left and right dynamic multicontour seat)

Shown on left seat

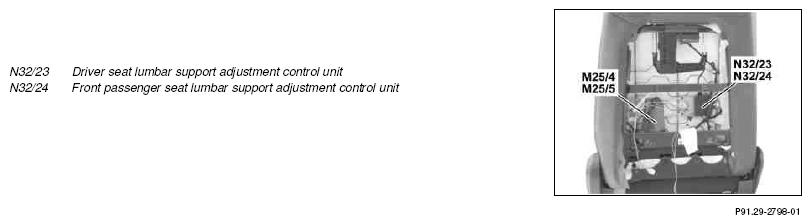

Fig 1: Driver Seat Lumbar Support Adjustment Control Unit

Courtesy of MERCEDES-BENZ USA

Location

The lumbar support adjustment control unit is located off-center in the respective seat backrest frame behind the backrest trim.

Tasks

• Regulation of the air cushion pressures in the two lumbar support cushions of each front seat
• Storage of last adjusted lumbar support contour
• Control of driver seat lumbar support pneumatic pump (M25/4) or front passenger seat lumbar support pneumatic pump (M25/5)
• Reading in of signals from driver seat lumbar support adjustment switch (S109/2) or front passenger seat lumbar support adjustment switch (S109/3)

The tasks are subdivided as follows:

• Reading in of signals
• Evaluation of input factors
• Actuation of components

Reading in of signals

The signals from the following components are read via a direct line:

• Driver seat lumbar support adjustment switch
• Front passenger seat lumbar support adjustment switch

A pressure sensor is integrated in the respective lumbar support adjustment control unit.

Evaluation of input factors

The read-in input factors are evaluated by the lumbar support adjustment control unit. The air cushions in the seat are actuated via valves integrated in the lumbar support adjustment control unit.

Actuation of components

The following component is actuated via a direct line:

• Driver seat lumbar support pneumatic pump or front passenger seat lumbar support pneumatic pump, for controlling the compressed air supply

The air cushions in the seat are actuated via valves integrated in the lumbar support adjustment control unit.

Body

The air pressures in the cushions are adjusted by the valves integrated in the lumbar support adjustment control unit.
