Overview of PRE-SAFE system components - GF91.40-P-9997FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212

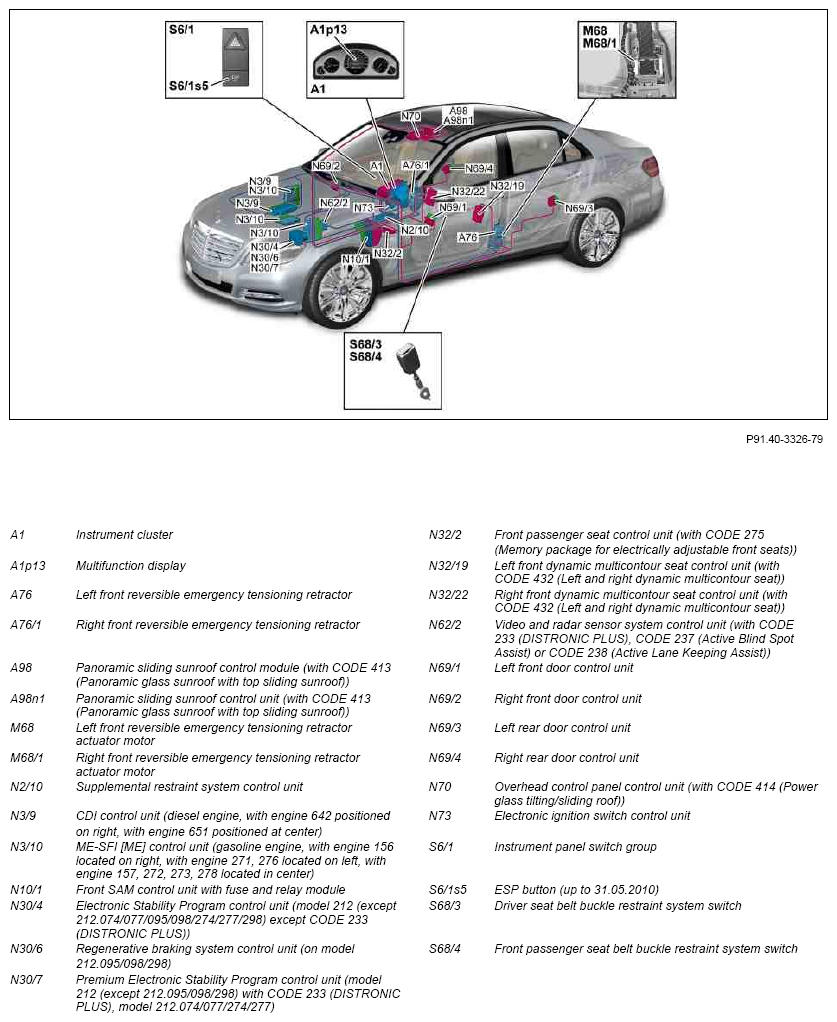

Up to 28.02.2013, shown on model 212.0

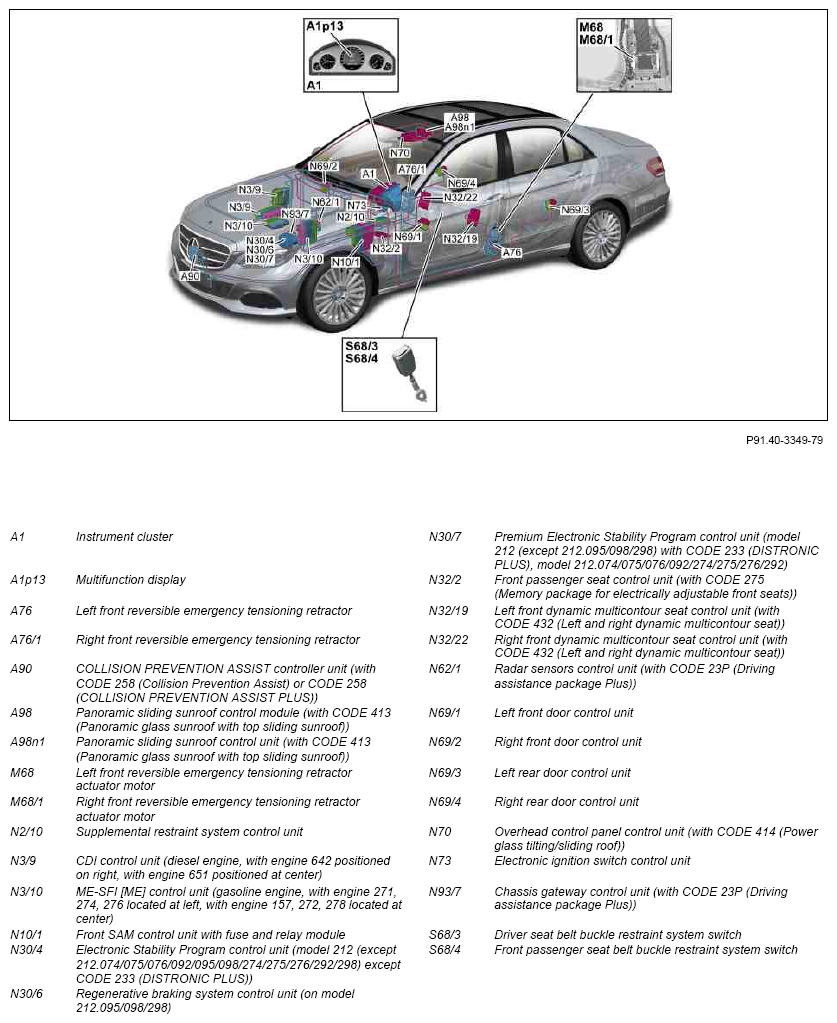

As of 01.03.2013, shown on model 212.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020FL | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 212 as of model year 2014 up to model year 2015 with CODE 258 (Collision Prevention Assist) MODEL 212 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST PLUS) A90 |
GF30.30-P-3214FLM | |
| Component description for panoramic sliding roof control module | MODEL 212 with CODE 413 (Panoramic glass roof with top sliding roof) A98, A98n1 |
GF77.20-P-4106FL | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212 (except 212.098/298) with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | ||
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 156.9 N3/10 |
GF07.61-P-6000MAW | |
| MODEL 212 with ENGINE 157.9 MODEL 212 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212 with ENGINE 271.8 N3/10 |
GF07.61-P-6000MG | ||
| MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MFG | ||
| MODEL 212 with ENGINE 272.9 (except 272.98) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212 with ENGINE 272.983 N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 212 with ENGINE 273.9 N3/10 |
GF07.61-P-6000ML | ||
| MODEL 212 with ENGINE 274.9 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMO | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) up to model year 2014 N304, N307 |
GF42.45-P-5119FL | |
| MODEL 212 (except 212.095/098/298) as of model year 2014 N304, N307 |
GF42.45-P-5119FLM | ||
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 up to model year 2014 N30/6 |
GF42.22-P-1100FLH | |
| MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | ||
| Component description for front passenger seat control unit | MODEL 212 with CODE 275 (Electrically adjustable front seats memory package) N32/2 |
GF91.29-P-5241FL | |
| Dynamic multicontour seat control unit, component description | MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) N32/19, N32/22 |
GF91.25-P-5210FL | |
| Component description for radar sensors control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FLM | |
| Component description for video and radar sensor system control unit | MODEL 212.0/2 up to model year 2014 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304FL | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FL | |
| Component description for overhead control panel control unit | MODEL 212 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for chassis gateway control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FLM | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997FL |
