Remove/install brake carrier plate - AR42.10-P-0164MCU

MODEL 451.3/4

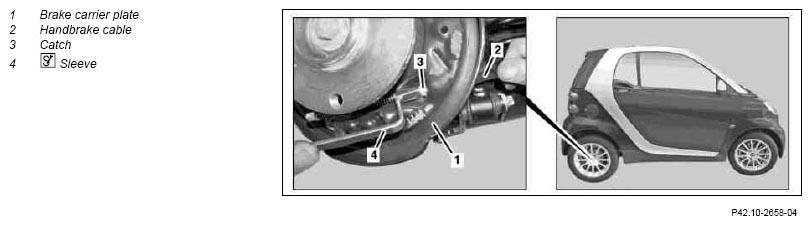

Fig 1: Compressing Locking Device On Hand Brake Cable

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove left or right wheel brake cylinder		AR42.10-P-0167MCU
2	Compress the locking device (3) on the hand brake cable (2) with sleeve (4) and guide the hand brake cable (2) out of the brake anchor plate (1)		*451589001400
3	Remove wheel bearing		AR35.20-P-0302MCU
4	Remove brake carrier plate (1)
5	Install in the reverse order

Fig 2: Identifying Sleeve (451 589 00 14 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
