Remove/install wheel bearing - AR35.20-P-0302MCU

MODEL 451.3/4

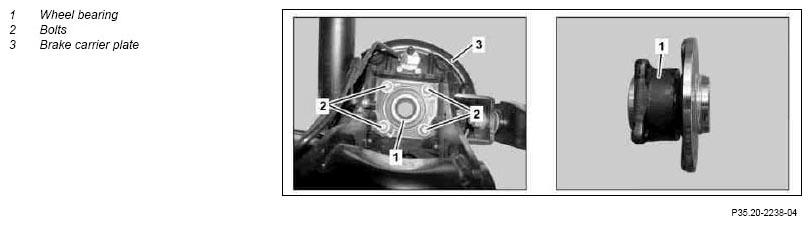

Fig 1: Identifying Wheel Bearing, Bolts And Brake Carrier Plate

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Release left or right rear axle shaft, outboard		AR35.30-P-0620MCU
2	Remove brake drum		AR42.10-P-1010MCU
3	Remove bolts (2)		*BA35.20-P-1001-07B
4	Remove wheel bearing (1) with wheel hub and support brake anchor plate (3) using transmission jack and removal fixture	Make sure that the brake line to the wheel brake cylinder is not bent, as otherwise it will have to be replaced.
		Transmission jack http://gotis.aftersales.mercedes-benz.com	*450589026200
5	Install in the reverse order

WHEEL BEARING

Number	Designation		Model 451.3/4
BA35.20-P-1001-07B	Bolt, wheel bearing to axle tube	Nm	65

Fig 2: Identifying Removal Assembly (450 589 02 62 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
