Lower Instrument Panel: Removal

BOLT, SCREW AND NUT TABLE
HINT:

All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet codes in the table below.

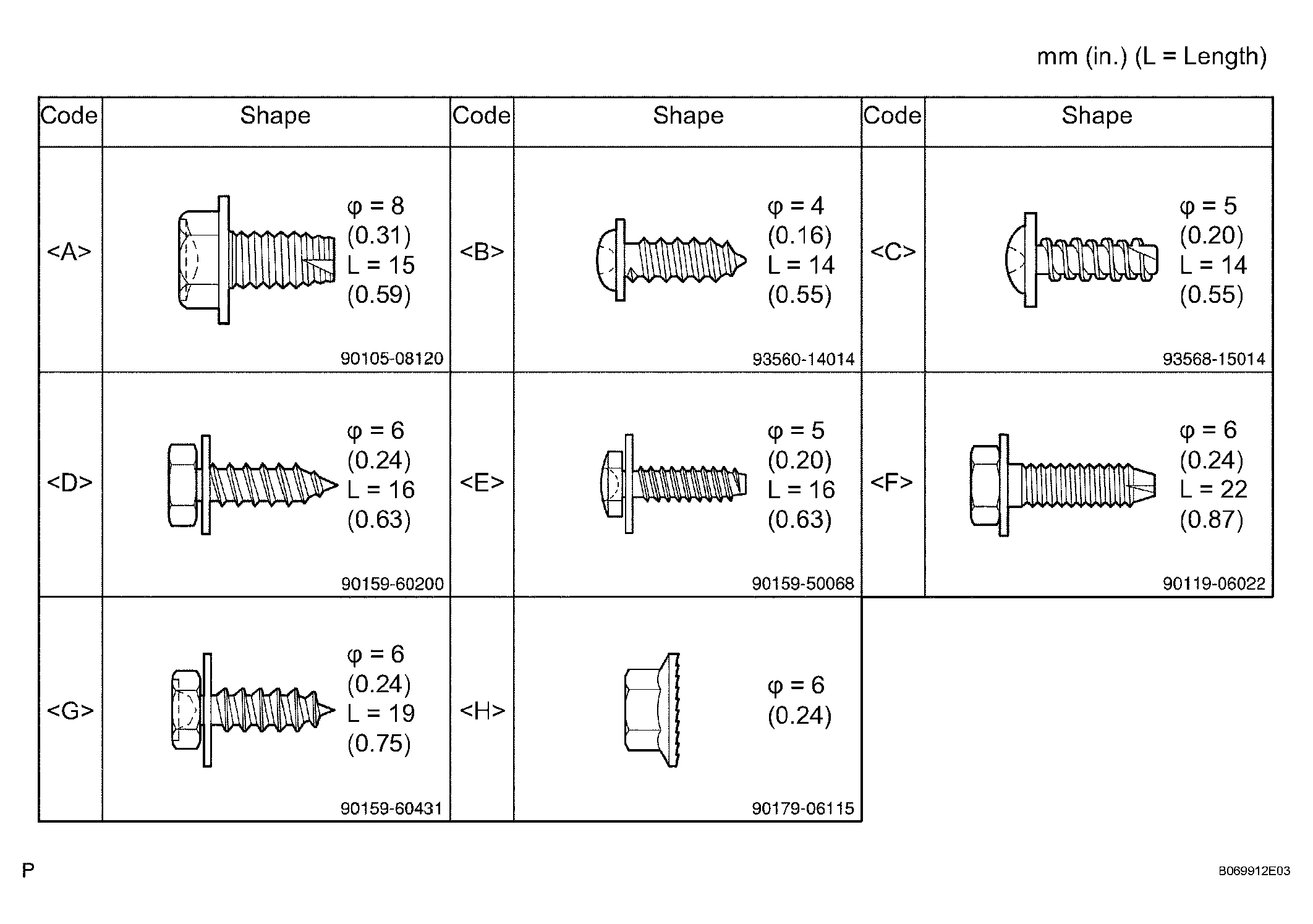

Fig 1: Bolt, Screw And Nut Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
1. Remove the instrument panel (see REMOVAL ).
REMOVE STEERING PAD ASSEMBLY (See REMOVAL )
REMOVE STEERING WHEEL ASSEMBLY (See REMOVAL )
REMOVE STEERING COLUMN COVER (See REMOVAL )
REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY (See INSTALLATION )
REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY (See WIPER SWITCH )
REMOVE FRONT DOOR SCUFF PLATE LH
1. Using a screwdriver, detach the 7 claws and remove the front door scuff plate.
  HINT:

  Tape the screwdriver tip before use.
REMOVE FRONT DOOR SCUFF PLATE RH

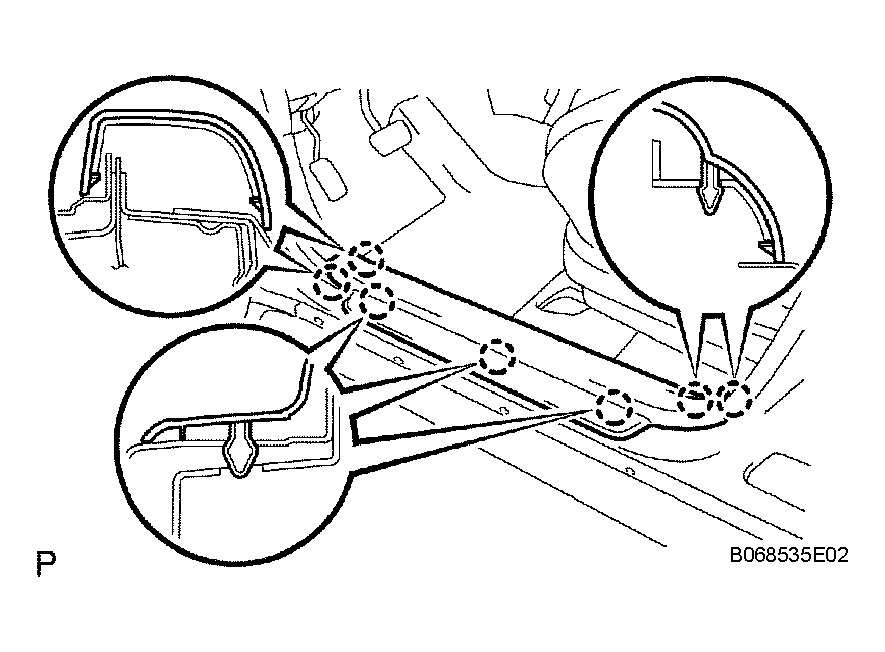

Fig 2: Removing Front Door Scuff Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and LH side.
REMOVE COWL SIDE TRIM BOARD LH
1. Remove the clip.
2. Using a screwdriver, detach the clip and remove the cowl side trim board.
REMOVE COWL SIDE TRIM BOARD RH
HINT:

Use the same procedures for the RH side and LH side.
REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY (See REMOVAL )

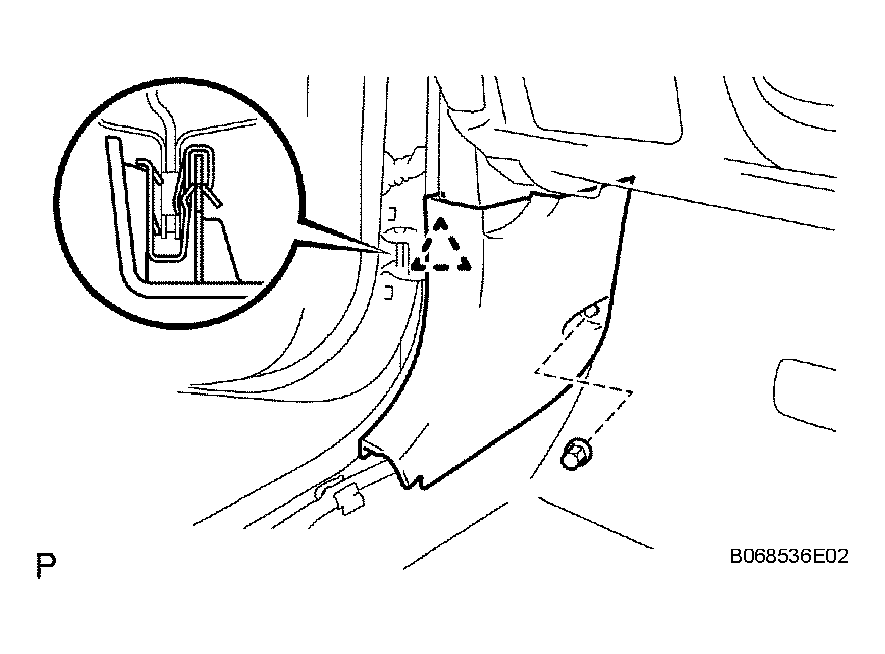

Fig 3: Removing Cowl Side Trim Board
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
1. Remove the 4 screws and instrument cluster finish panel assembly center.
2. Disconnect the connectors.

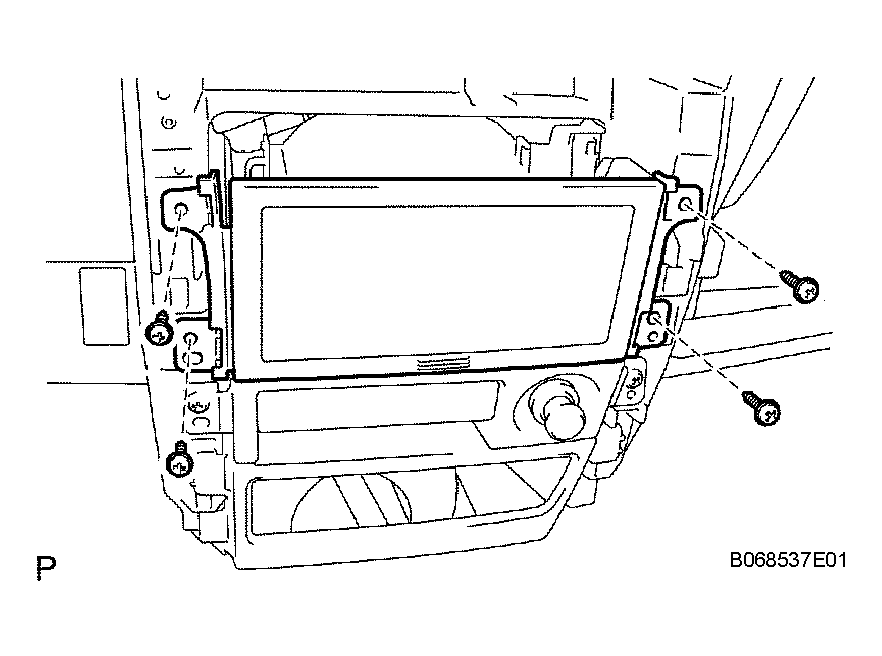

  Fig 4: Removing Screws And Instrument Cluster Finish Panel Assembly Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT ASH RECEPTACLE ASSEMBLY
1. Remove the 2 screws and front ash receptacle.
2. Disconnect the connectors.

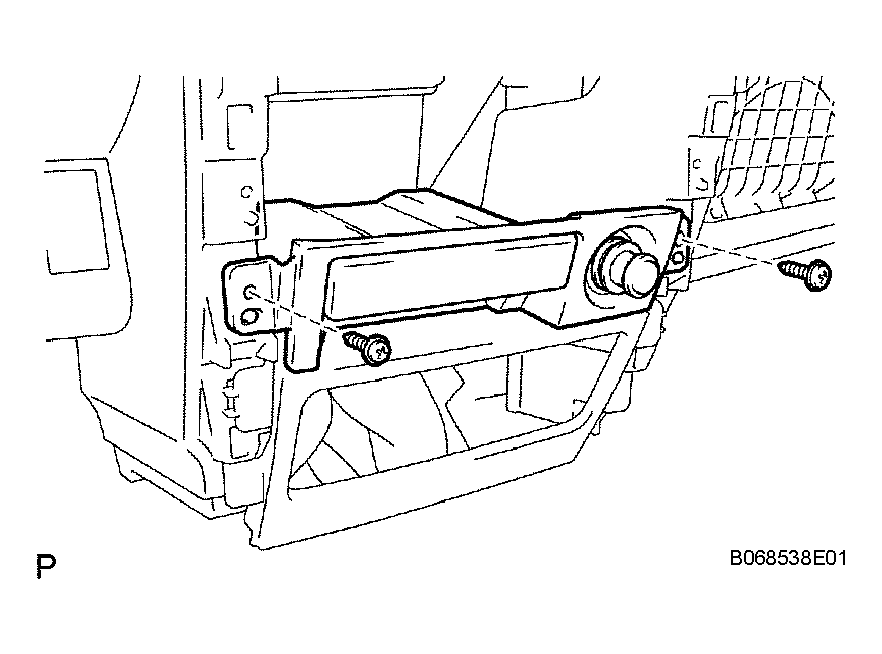

  Fig 5: Removing Front Ash Receptacle Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT COVER LOWER CENTER
1. Using a screwdriver, detach the 5 claws and remove the instrument cover lower center.

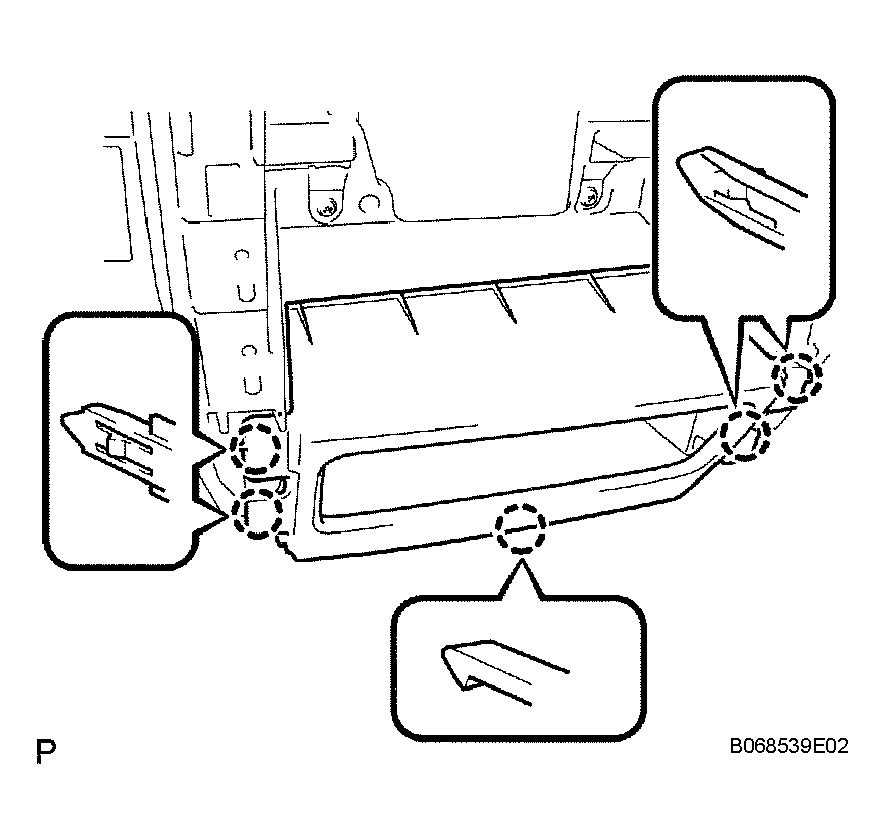

  Fig 6: Removing Instrument Cover Lower Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
1. Using a clip remover, remove the 2 clips.
2. Using a screwdriver, detach the 3 claws and remove the instrument panel finish panel lower center.

  Fig 7: Removing Instrument Panel Finish Panel Lower Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE FUSE BOX OPENING COVER
REMOVE LOWER INSTRUMENT PANEL ASSEMBLY
1. Disconnect the hood lock control cable.
2. Using a clip remover, remove the 2 clips.
3. Remove the 2 bolts, 2 nuts and 2 screws.
4. Remove the 2 screws and bolt, and separate the instrument panel junction block.
5. Remove the instrument panel.

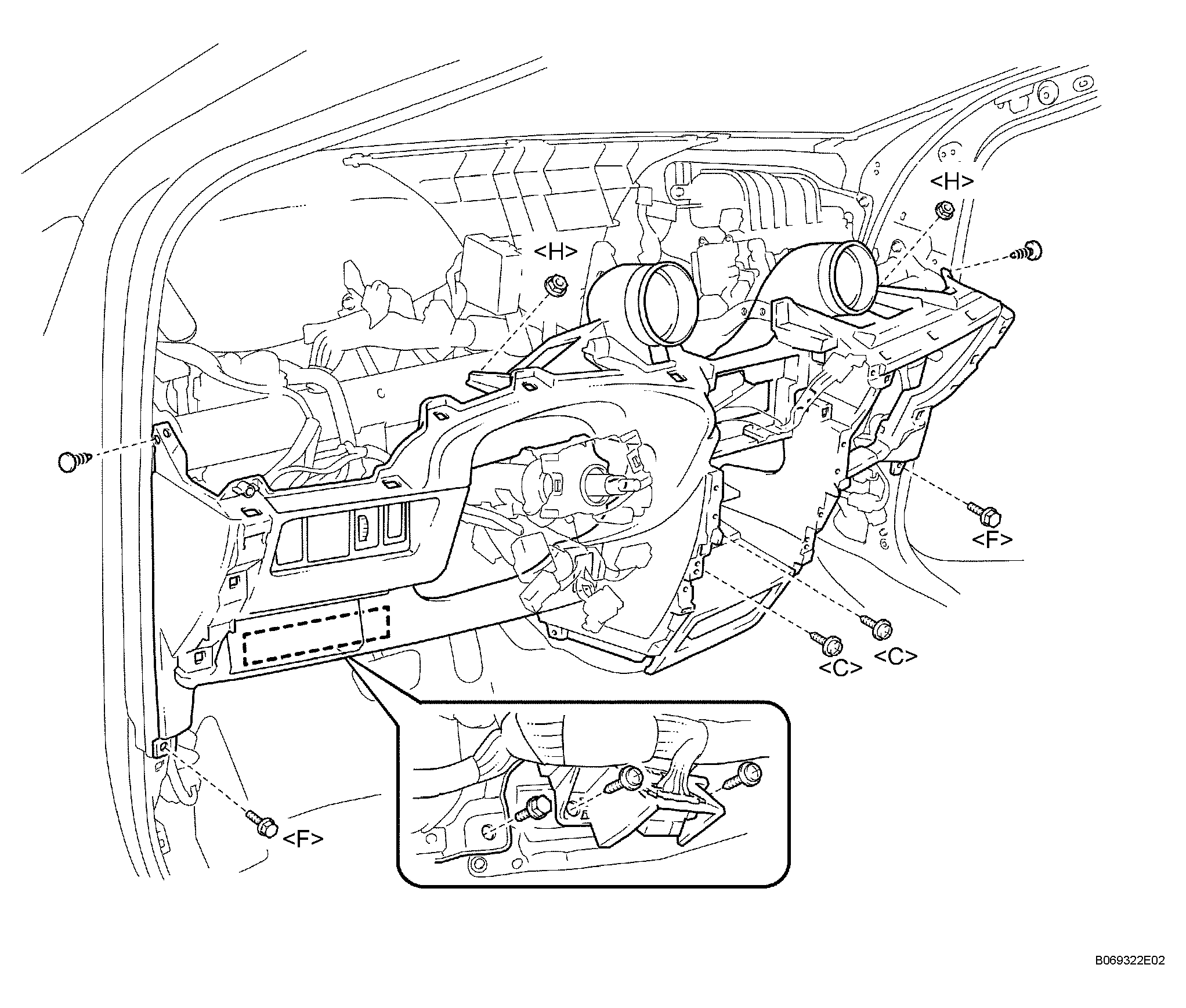

  Fig 8: Removing Instrument Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
