Steering Pad: Removal

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see AIRBAG SYSTEM ).

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE STEERING PAD ASSEMBLY
1. Straighten the front wheels.

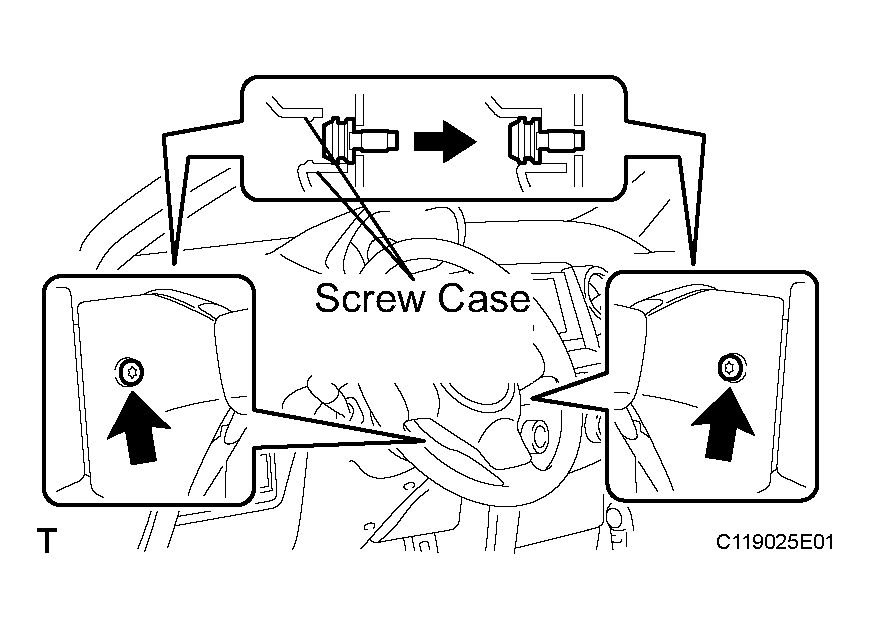

2. Using a T30 "torx" socket, loosen the 2 screws until the groove along each screw circumference catches on the screw case.

  Fig 1: Loosening Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull out the steering pad from the steering wheel and support the steering pad with one hand as shown in the illustration.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.
4. Using a screwdriver, disconnect the 2 airbag connectors.
  CAUTION: When handling the airbag connector, do not damage the airbag wire harness.
5. Disconnect the horn connector and remove the steering pad.

  Fig 2: Pulling Out Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
