Air Distributor Duct Replacement

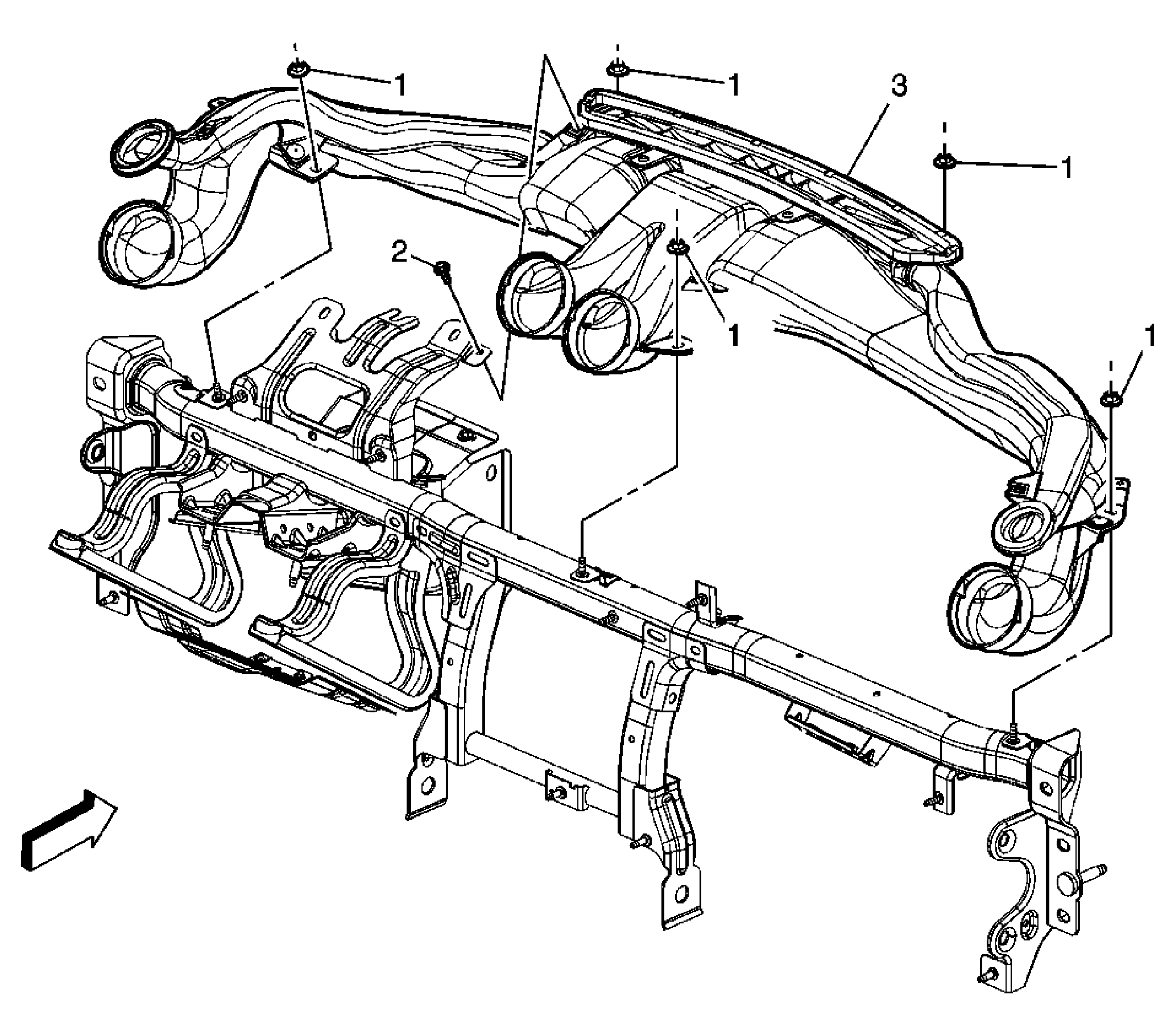

Fig 1: Identifying Air Distributor Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel (I/P) carrier. Refer to Instrument Panel Carrier Replacement (SKY) or Instrument Panel Carrier Replacement (Solstice) . Remove the I/P tie bar. Pull the tie bar far enough back for the air distribution duct to clear the opening. Refer to Instrument Panel Tie Bar Replacement (Solstice) or Instrument Panel Tie Bar Replacement (SKY) .
1	Distributor Air Nut CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (16 lb in)
2	Distributor Air Bolt Tighten: 2.5 N.m (16 lb in)
3	Air Distributor
