Removing wiring for backrest
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and remove remote control before disconnecting or removing electrical load.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
- Do not touch electric pins and plug contacts .
| 1 | Two connectors for backrest wire harness |
| 2 | Connector for motor for air cushion 3 - Connector for control valve for air cushion 4 - Two connectors for lumbar support |
| 5 | Connector for motor for backrest adjustment |
| 6 | Connector for motor for seat ventilation |
- Unclip, release and disconnect two electric plug connections -1- for the backrest wire harness. → 721919 REMOVING AND INSTALLING FRONT BACKREST FRAME
- Release and disconnect electric plug connection -2- for the air cushion motor. → 723919 REMOVING AND INSTALLING MOTOR FOR AIR CUSHION
- Unscrew two fastening screws for the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST
- Release and disconnect electric plug connection -3- for control valve for air cushion. → 723819 REMOVING AND INSTALLING CONTROL VALVE FOR AIR CUSHION
- Release and disconnect two electric plug connections -4- for lumbar support. → 723419 REMOVING AND INSTALLING LUMBAR SUPPORT
- Release and disconnect electric plug connection -5- for motor for backrest adjustment. → 728919 REMOVING AND INSTALLING MOTOR FOR BACKREST ADJUSTMENT
- Release and disconnect electric plug connection -6- for motor for seat ventilation.

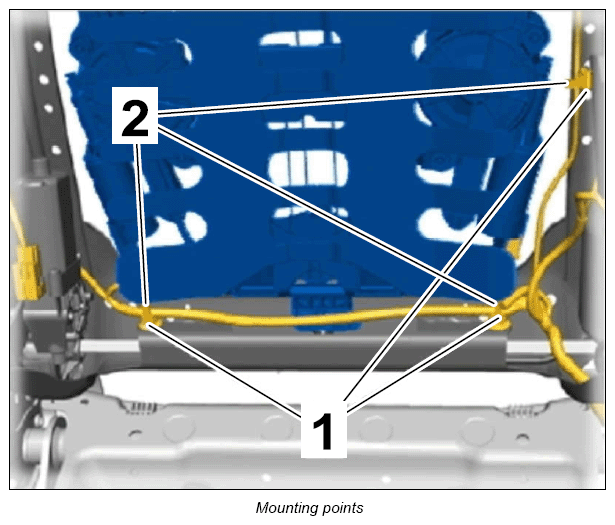

- Unclip clips -1- on the backrest frame.
- Cut open tie-wraps -2-
on the backrest frame.
- Remove wiring for backrest.
