Removing motor for air cushion

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

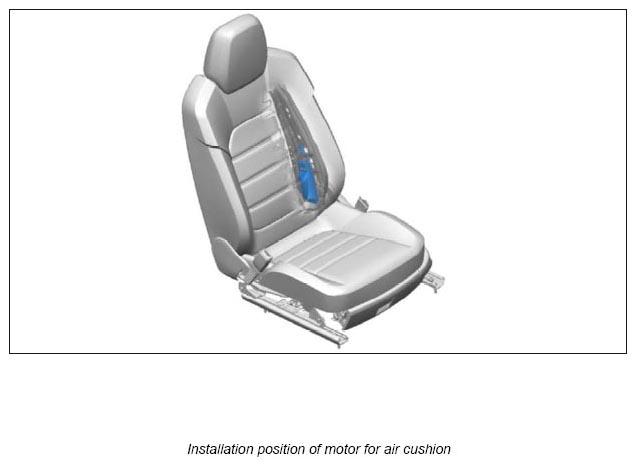

G12890569
  1. Unscrew two fastening screws from the backrest air cushion. → 721719 REMOVING AND INSTALLING AIR CUSHION FOR BACKREST - "REMOVING"
  2. Release fixing clip -2-  for the motor -1-  .

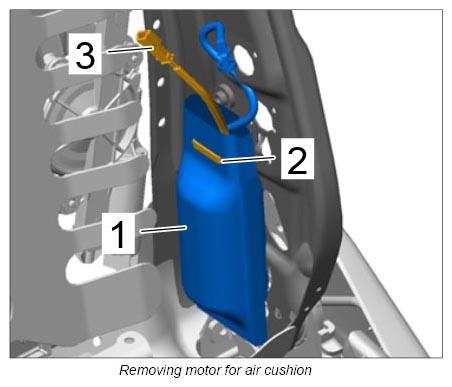

    G12890570
  3. Disconnect electric plug connection -3-  .
  4. Release pressure line (blue) -3-  from the control valve and pull it off.

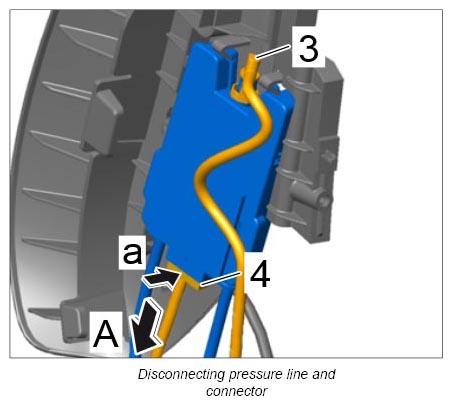

    G12890571
