Removing air cushion for backrest
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

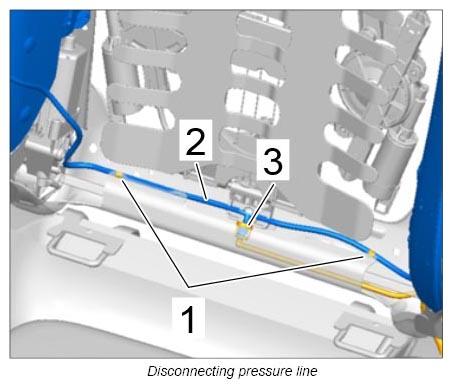

- Open connection point on the air cushion -3-
and cut tie-wrap -1-
on the pressure line -2-
.

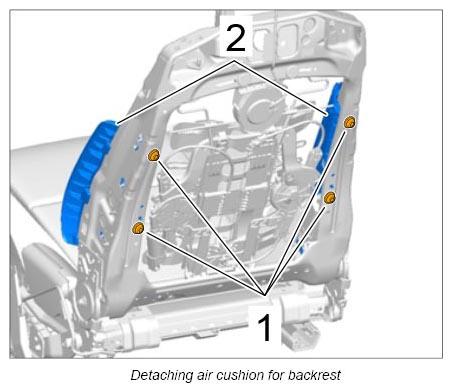

- Loosen fastening screws -1-
on holder for air cushion for backrest -2-
.

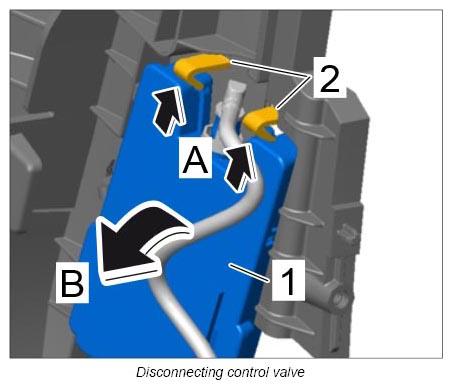

- On the left side, release locking mechanisms -2-
on the control valve -1-
(-A-
) and remove control valve -B-
.
- Remove air cushion for backrest.
