Installing Main Wiring Harness - Floor Area And Right-Hand Side

Information

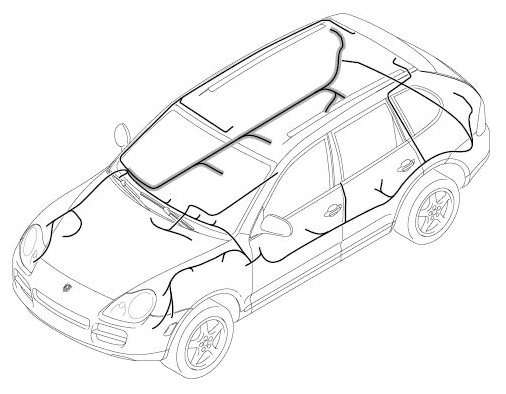

Fig 1: Identifying Main Wiring Harness - Floor Area And Right-Hand Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

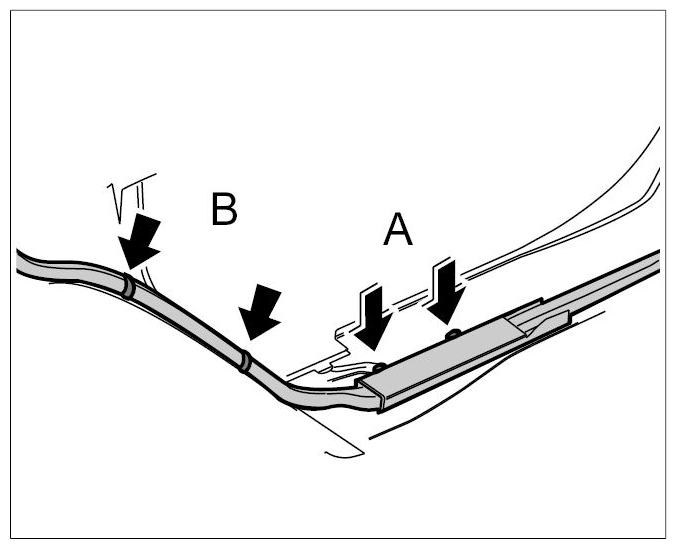

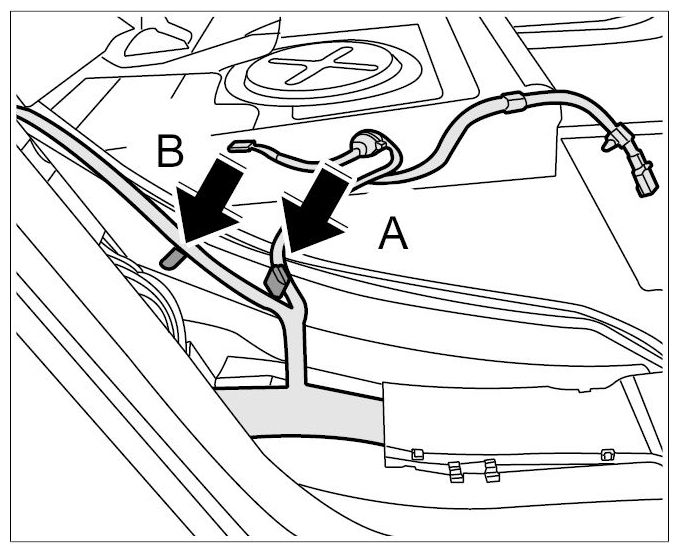

1. Fit wire harness with wiring duct (rear door floor area) on threaded bolts -Arrows A-  and fasten with two new tie-wraps -B-  .
   Fig 2: Fitting Wire Harness With Wiring Duct (Rear Door Floor Area) On Threaded Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

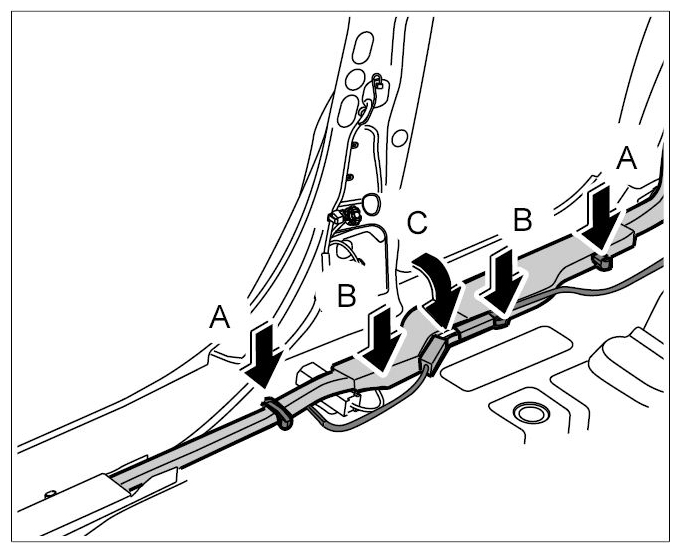

2. Fit line (B-pillar floor area) on threaded bolts -Arrows A-  .
   Fig 3: Fitting Line (B-Pillar Floor Area) On Threaded Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Only for vehicles with level adjustment.

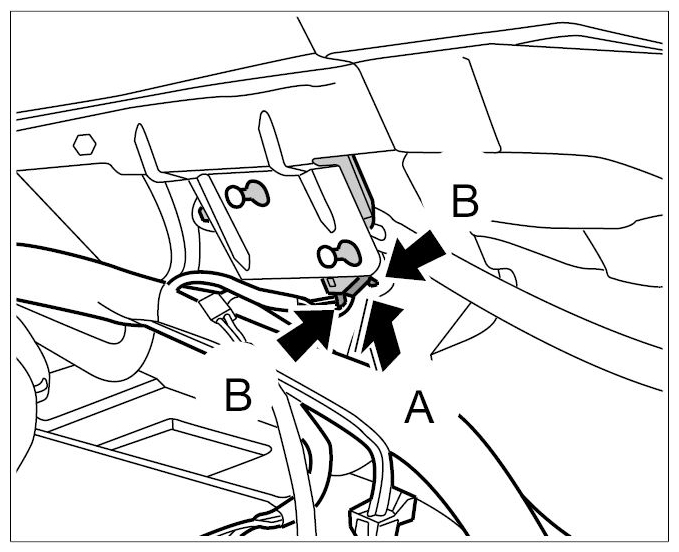

3. Insert air tubes in wiring duct -Arrows B-  and close the wiring duct -Arrow C-  until locking tabs are felt to engage.

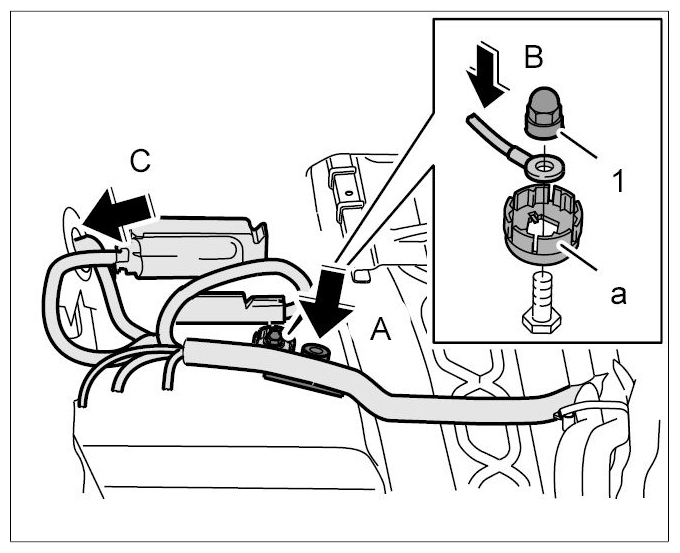

4. Push line (under right front seat) onto threaded bolt -Arrow A-  .
   Fig 4: Removing Push Line (Under Right Front Seat) Onto Threaded Bolt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit ground strap together with the twist lock on the threaded bolt -Arrow B-  bolt and screw down with the fastening nut -1-  . → Tightening torque: 6.5 ftlb.
6. Push line down through transmission tunnel -Arrow C-  .

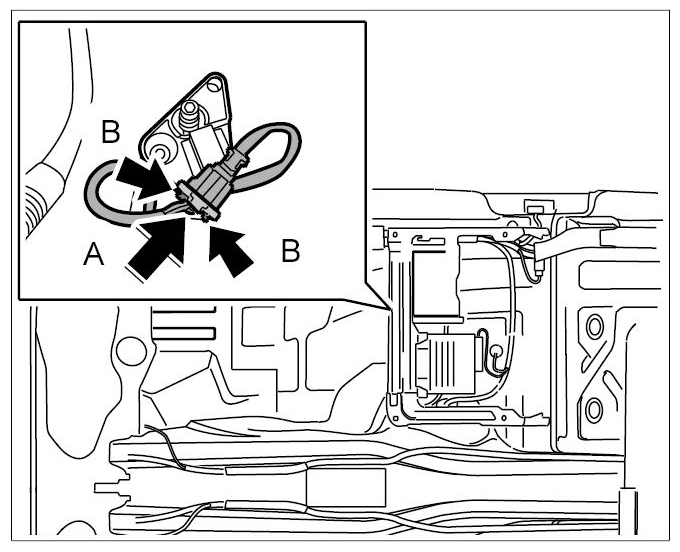

7. Push on connector at tyre filling connection (under right front seat) -Arrow A-  until locking tabs -B-  are felt to engage.
   Fig 5: Pushing On Connector At Tyre Filling Connection (Under Right Front Seat)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   A-pillar

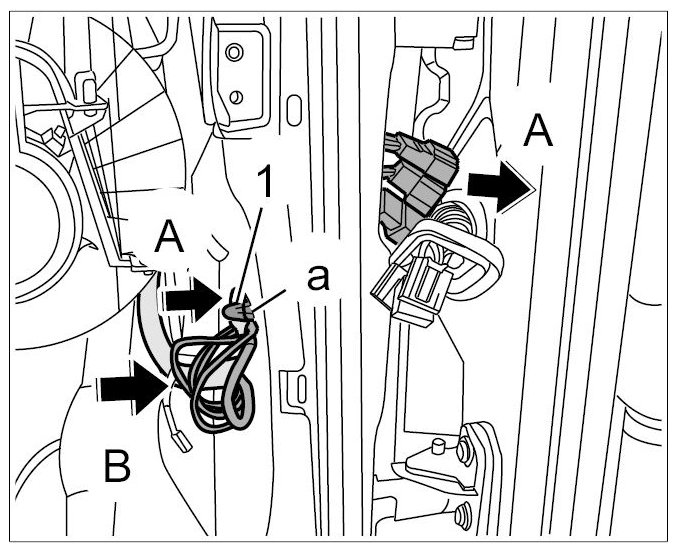

8. Thread line through A-pillar -Arrow A-  (if necessary, fasten line to a tie-wire and pull it through the A-pillar).
   Fig 6: Fastening Line To Tie-Wire

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Fit ground straps together with twist lock on threaded bolt -Arrow B-  and screw down with fastening nut -1-  . → Tightening torque: 6.5 ftlb.

   B-pillar

10. Push lead through B-pillar to the outside.

    A- & B-pillar

    Fig 7: Pushing Lead Through B-Pillar To Outside

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

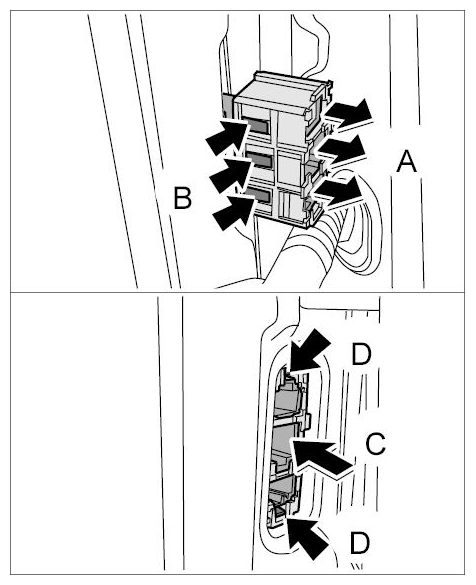

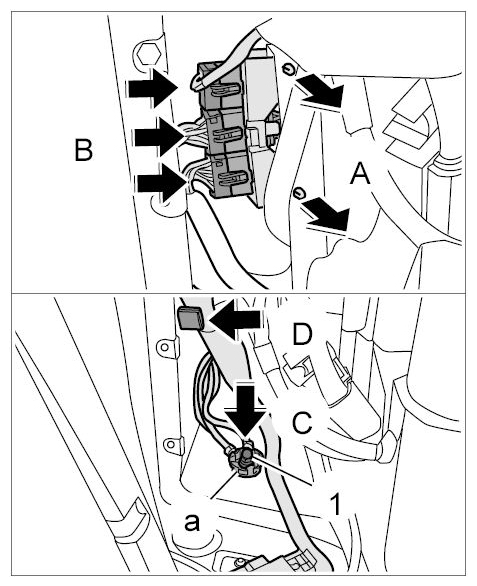

11. Push sockets into socket bracket -Arrows A-  until locking tabs are felt to engage -B-  .
12. Push in connector holder -Arrow C-  until locking tabs -D-  are felt to engage.

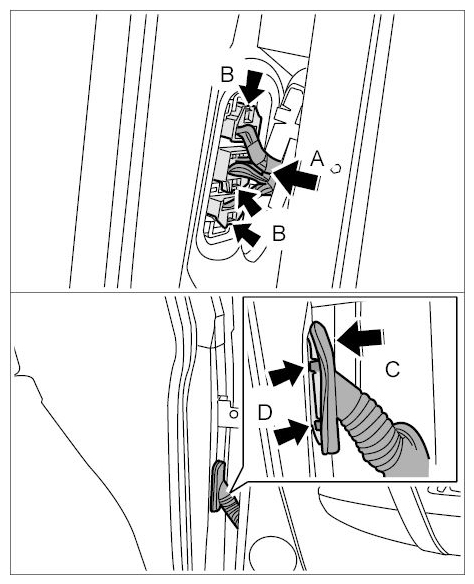

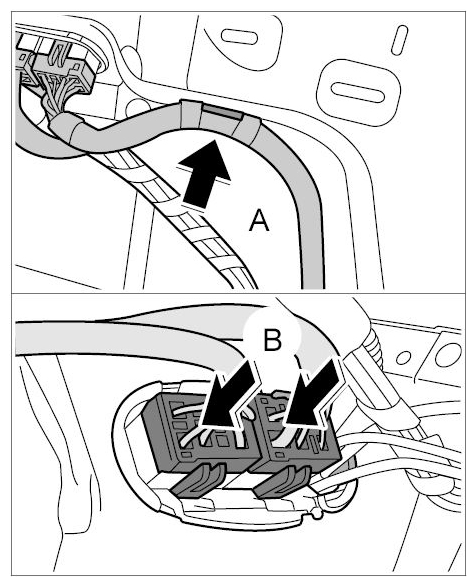

13. Push in connectors -Arrow A-  until locking tabs -B-  are felt to engage.
    Fig 8: Pushing Connectors

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Push on wire sleeve -Arrow C-  until locking tabs -D-  are felt to engage.

    Only for vehicles with electric adjustment fitting.

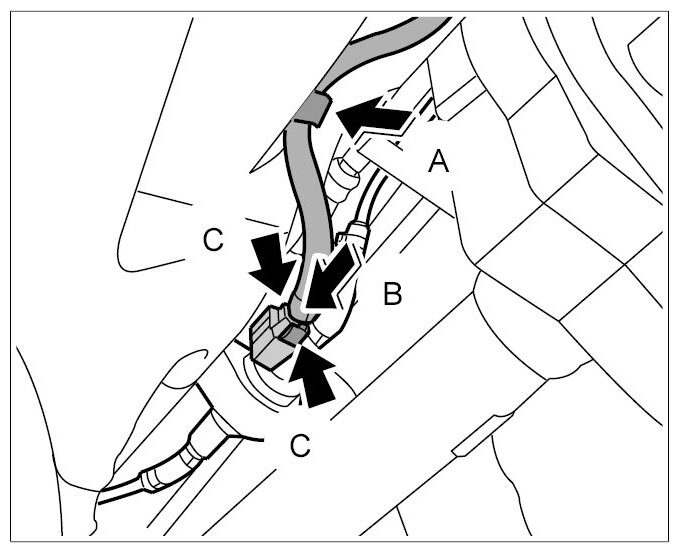

15. Press down protective cover on connector (B-pillar) -Arrow A-  and maintain in this position.
    Fig 9: Pressing Down Protective Cover On Connector (B-Pillar)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Insert connector -Arrow B-  until locking tab -C-  is felt to engage.
17. Fit ground straps together with twist lock on threaded bolt -Arrow D-  and screw down with fastening nut -1-  . → Tightening torque: 6.5 ftlb.

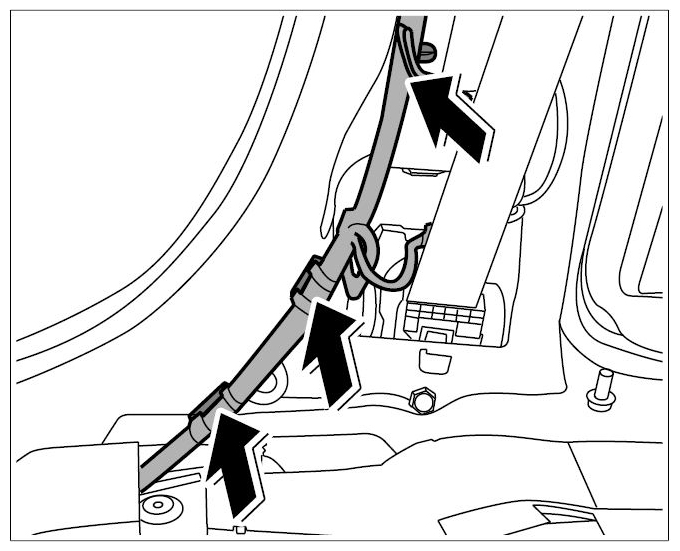

18. Clip line to B-pillar -arrows-  .
    Fig 10: Fitting Ground Straps Together With Twist Lock On Threaded Bolt

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Only for vehicles with level adjustment.

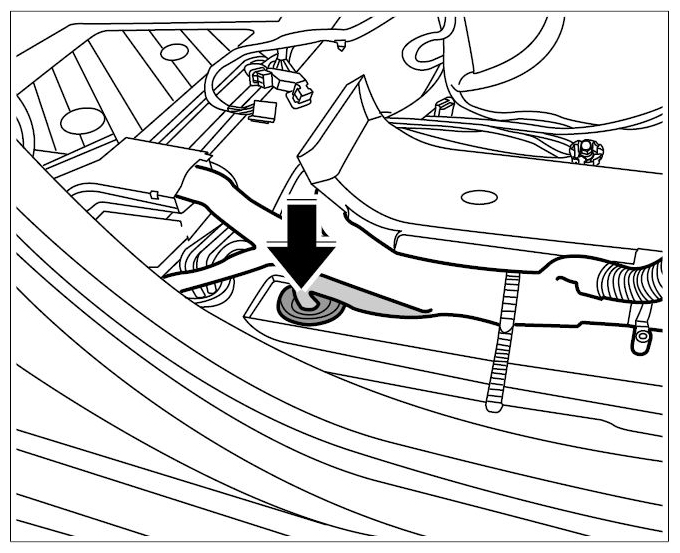

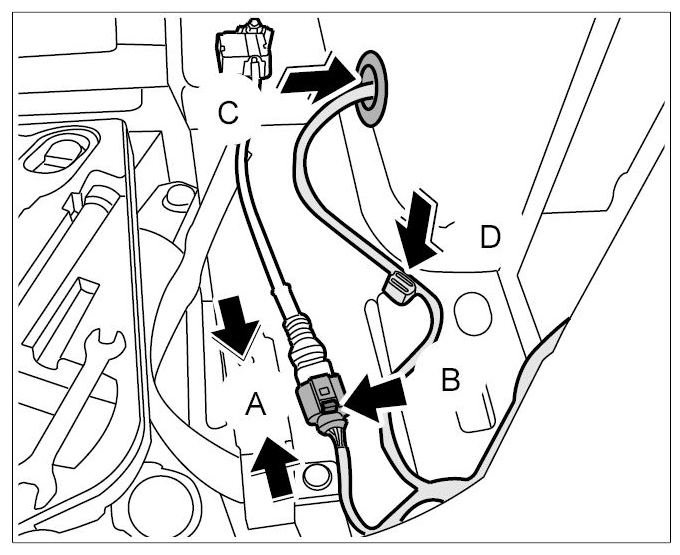

19. Push line for compressor (B-pillar floor area) down and through -arrow-  and fasten rubber sleeve in floorpan.
    Fig 11: Pushing Line For Compressor (B-Pillar Floor Area)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
20. Insert connector in airbag sensor for B-pillar. → Installing Airbag Sensor
21. Push line with corrugated hose holders (under rear seat) onto threaded bolt -Arrow A-  and clip it in -Arrow B-
    Fig 12: Pushing Line With Corrugated Hose Holders (Under Rear Seat) Onto Threaded Bolt

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

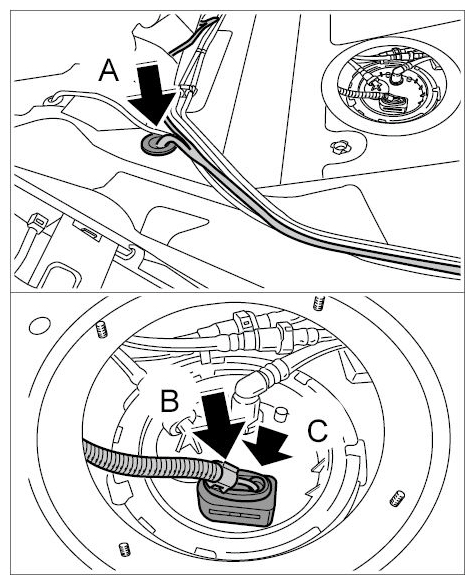

22. Push through line to fuel-level sensor -Arrow A-  in downwards direction, and fasten together with rubber sleeve.
    Fig 13: Pushing Line To Fuel-Level Sensor

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
23. Push on connector -Arrow B-  until locking tab -C-  is felt to engage.
24. Fit cap under right rear seat. → REMOVING FUEL TANK

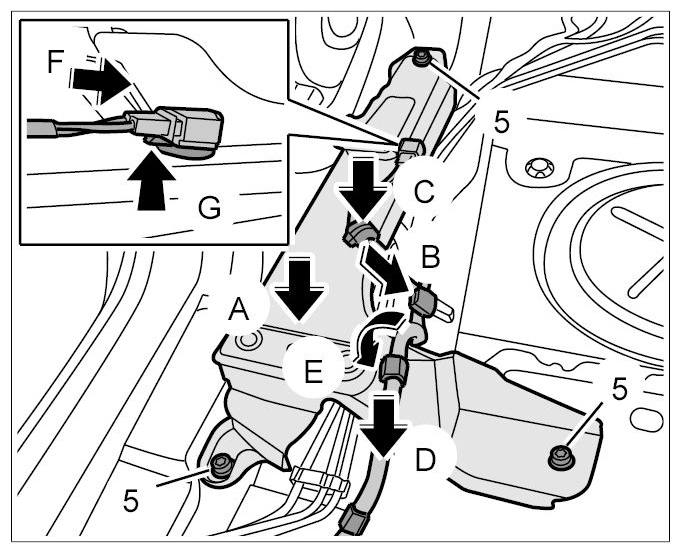

25. Place rear seat support in installation position -Arrow A-  and secure with fastening screws -5-  .
    Fig 14: Placing Rear Seat Support In Installation Position

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
26. Press the corrugated hose holder onto the threaded bolt -Arrow B-  .
27. Clip line to the rear seat support -Arrow C-  .
28. Insert line in the clip -Arrow D-  and close clip -Arrow E-  until the locking tabs are felt to engage.
29. Push on connector -Arrow F-  until locking tab -G- is felt to engage.

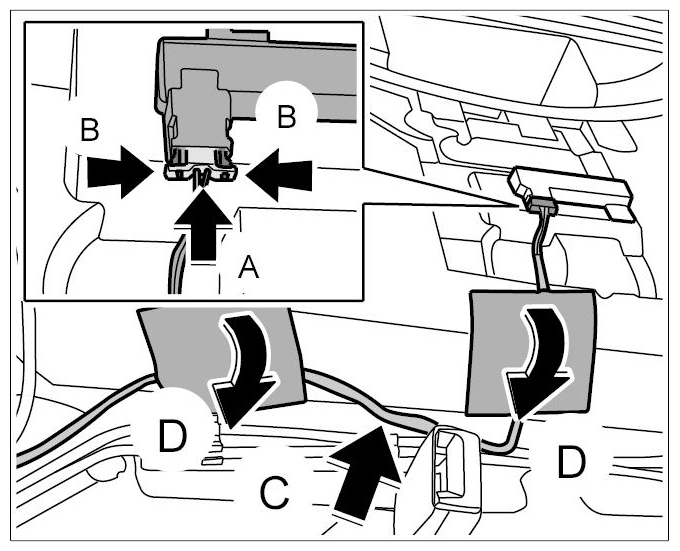

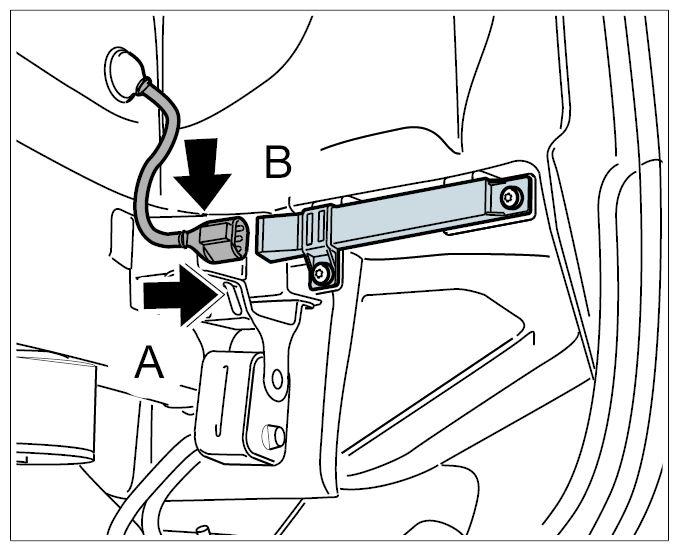

30. Push in connectors on KESSY antenna (under rear seat) -Arrow A-  until locking tabs -B-  are felt to engage.
    Fig 15: Pushing Connectors On KESSY Antenna (Under Rear Seat)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
31. Place KESSY antenna in installation position -Arrow C-  and fasten with the styrofoam elements -Arrow D-  .

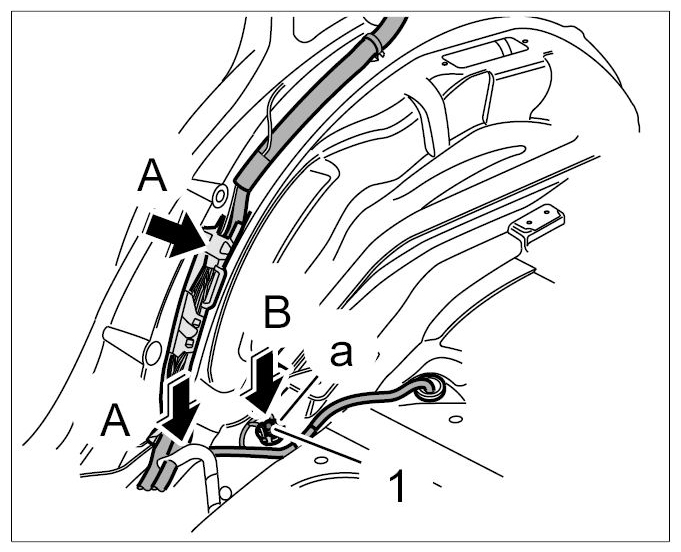

32. Fit wiring duct on threaded bolt and wheel housing seam -Arrows A-  .
    Fig 16: Fitting Wiring Duct On Threaded Bolt And Wheel Housing Seam

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
33. Fit ground strap together with the twist lock -a-  on the threaded bolt -Arrow B-  and screw down with the fastening nut -1-  . → Tightening torque: 6.5 ftlb.

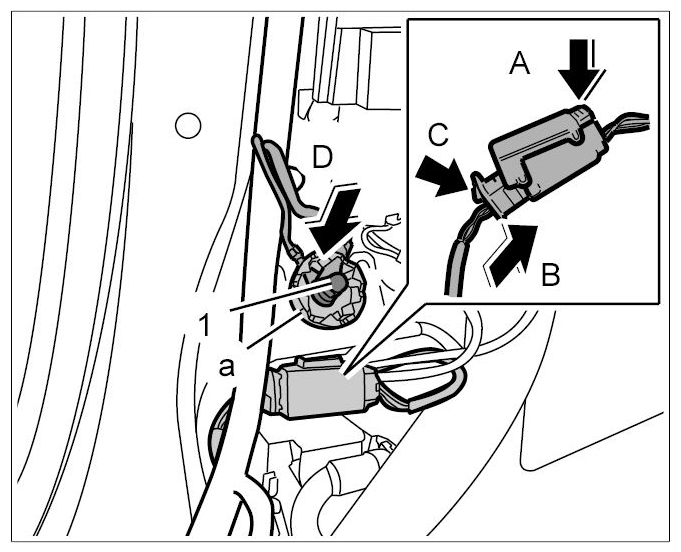

34. Press down the protective cover on the plug -Arrow A-  and maintain in this position.
35. Remove airbag sensor on C-pillar → Removing Airbag Sensor .

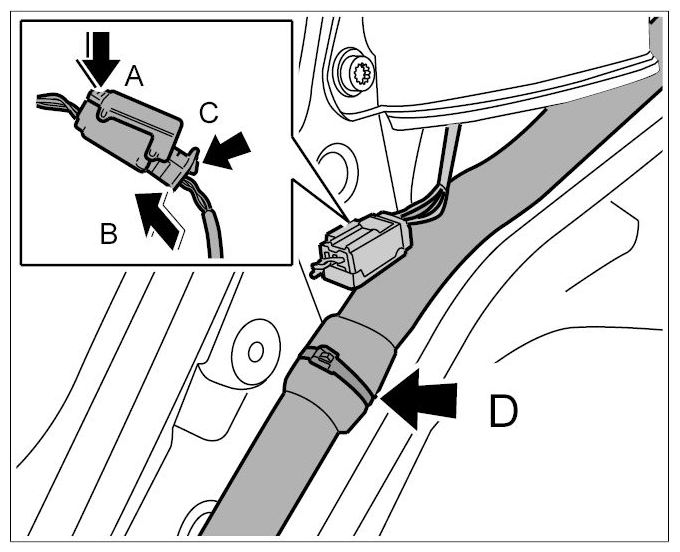

36. Press down protective cover on connector (C-pillar) -Arrow A-  and maintain in this position.
    Fig 17: Pressing Down Protective Cover On Connector (C-Pillar)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
37. Insert connector -Arrow B-  until locking tab -C-  is felt to engage.
38. Fasten line with a new tie-wrap -D-  .
39. Push in connectors (filler-flap lock) -Arrow A-  until locking tabs -B-  are felt to engage.
    Fig 18: Pushing In Connectors (Filler-Flap Lock)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

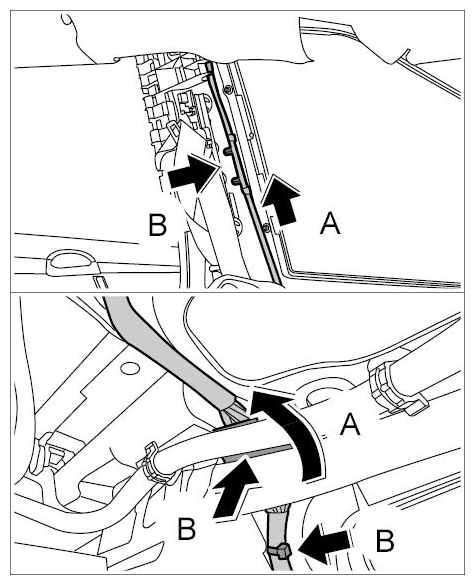

40. Thread the line (along rear of side window) behind the head airbag -Arrow A-  and clip it in -Arrows B-  .
    Fig 19: Threading Line (Along Rear Of Side Window) Behind Head Airbag

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
41. Clip line on rear cross member -Arrow A-  .
    Fig 20: Clipping Line On Rear Cross Member

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
42. Insert the two connectors -Arrow B-  until the locking tabs are felt to engage.
43. Clip in connector bracket (D-pillar lower right) -Arrows A-  .
    Fig 21: Clipping In Connector Bracket (D-Pillar Lower Right)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
44. Push in connectors -Arrows B-  until locking tabs are felt to engage.
45. Fit ground strap together with twist lock -a-  on the threaded bolt -Arrow C-  and secure with fastening nut -1-  → Tightening torque: 6.5 ftlb.  .
46. Connect line to threaded bolt -Arrow D-  .
47. Insert connector of lateral acceleration sensor (luggage compartment right) -Arrow A-  until locking tab -B-  is felt to engage.
    Fig 22: Inserting Connector Of Lateral Acceleration Sensor (Luggage Compartment Right)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
48. Push line through wheel housing -Arrow C-  and fasten with rubber sleeve. Then Push line holder onto threaded bolt -Arrow D-  .
49. Lift vehicle → WM 4000V0 LIFTING THE VEHICLE (ALL MODELS) .

    Only for vehicles with level adjustment.

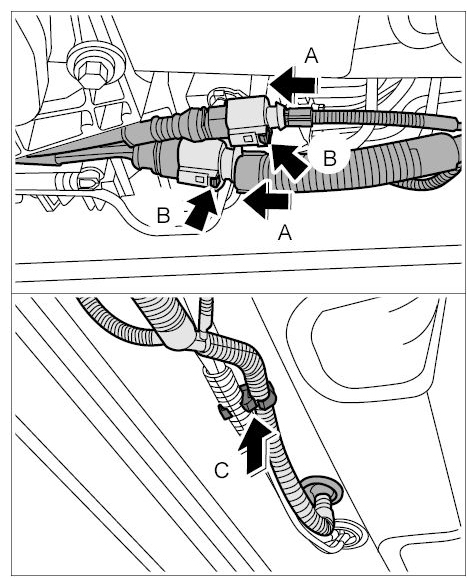

    Fig 23: Pushing Connectors (Underbody Right)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
50. Push in both connectors (underbody right) -Arrow A-  until locking tabs -B-  are felt to engage.
51. Clip line to level adjustment compressor (transmission tunnel) -Arrow C-  .

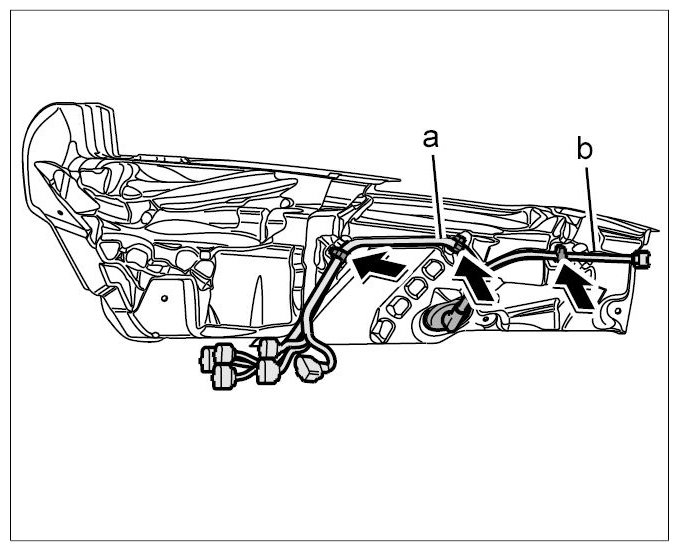

52. Push line -a-  and (only in cars with additional heating) -b-  with corrugated hose holders onto threaded bolts -arrows-
    Fig 24: Pushing Line With Corrugated Hose Holders Onto Threaded Bolts

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

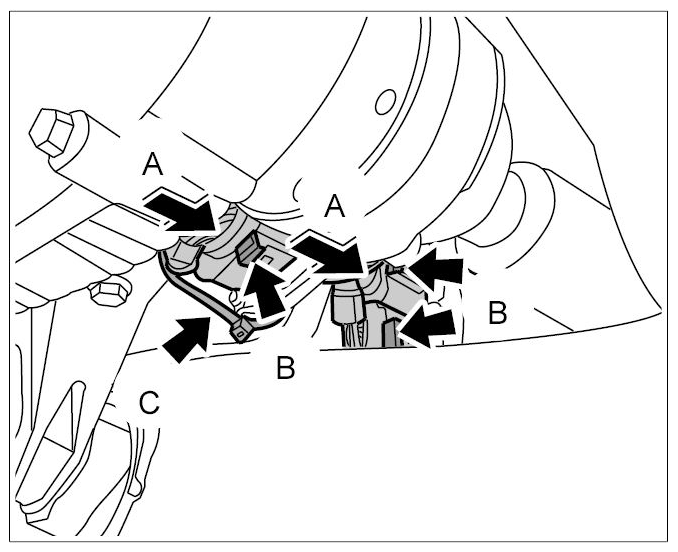

53. Insert connectors at the transmission -Arrows A-  until locking tabs -B-  are felt to engage.
    Fig 25: Inserting Connectors At Transmission

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
54. Fasten line with a new tie-wrap -C-  .
55. Push in the connectors for LOW range, centre-differential lock and oil level sensor -Arrows A-  until locking tabs -B-  are felt to engage.

    Only in cars with additional heating

    Fig 26: Pushing In Connectors For LOW Range

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
56. Push line with corrugated hose holder onto threaded bolt (transmission tunnel) -Arrow A-  .
57. Push connector onto metering pump -Arrow B-  until locking tabs -C-  are felt to engage.
58. Connect plug connection -Arrows A-  until locking tabs -B-  are felt to engage.

    Only in vehicles with Bi-Xenon headlights

    Fig 27: Connecting Plug Connection

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

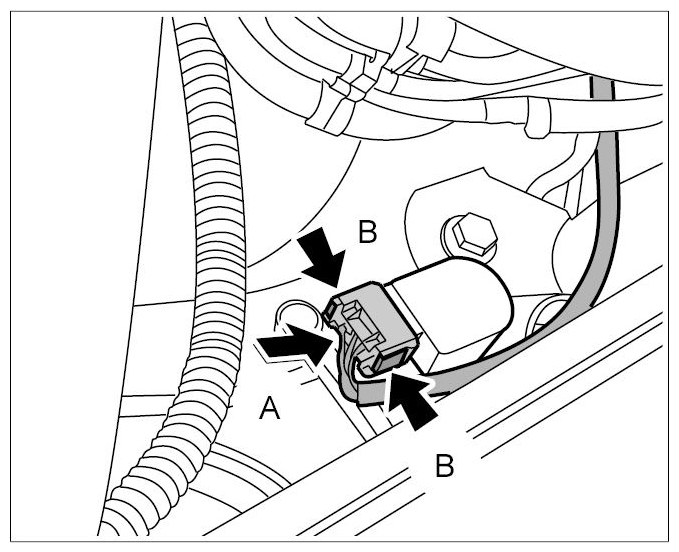

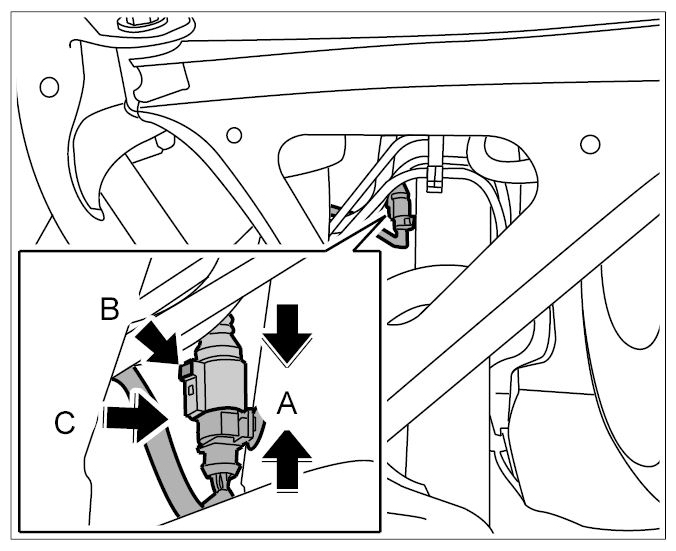

59. Push connector onto sensor for headlight levelling system (rear wheel suspension) -Arrow A-  until locking tabs -Bare felt to engage.
60. Connect plug connection (rear wheel housing) -Arrows A-  until locking tab -B-  is felt to engage.
    Fig 28: Connecting Plug Connection (Rear Wheel Housing)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
61. Clip in plug connection -Arrow C-  .

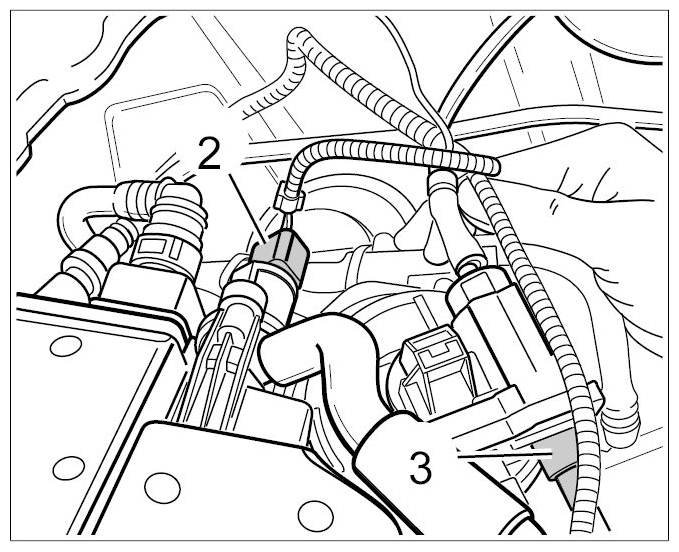

62. Push in connectors on carbon canister -2-  and on leak diagnosis pump (USA) -3-  until locking tabs are felt to engage.
    Fig 29: Identifying Carbon Canister And Diagnosis Pump

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

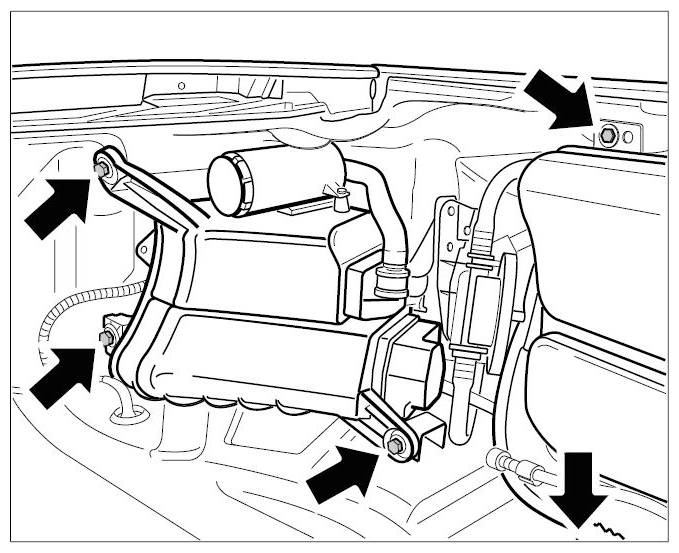

63. Tighten the five fastening screws on the carbon canister and the two on the degassing tank in the right wheel housing to the specified torque -arrows-  .
    Fig 30: Locating Fastening Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Only for vehicles with tyre pressure monitoring system.

    Fig 31: Pushing Connector Onto Antenna For Tyre Pressure Monitoring System (Rear Wheel Housing)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
64. Push connector onto antenna for tyre pressure monitoring system (rear wheel housing) -Arrow A-  until locking tab -B-  is felt to engage.
65. Lower the vehicle.

    Lay floor carpeting in passenger compartment.

    Install front right side-section trim panel → Installing front side section trim .

    Install right B-pillar trim panel → Installing B-pillar trim panel .

    Install tilt sensor control unit → Installing Tilt Sensor Control Unit .

    Install loudspeaker amplifier → Installing Loudspeaker amplifier .

    Install CD changer → Installing CD Changer .

    Install control unit for trailer hitch → Installing control unit for the trailer hitch .

    Install TV tuner → Installing TV Tuner .

    Install side trim panel for rear luggage compartment. → Installing rear luggage compartment side-trim panel

    Install right rear light. → Installing Rear Light

    Install rear right wheel housing liner. → WM 536919 REMOVING AND INSTALLING REAR WHEEL HOUSING LINER

    Install Kessy antenna on rear impact member → Installing Antennae

    Connect the battery → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .
