Installing Tilt Sensor Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

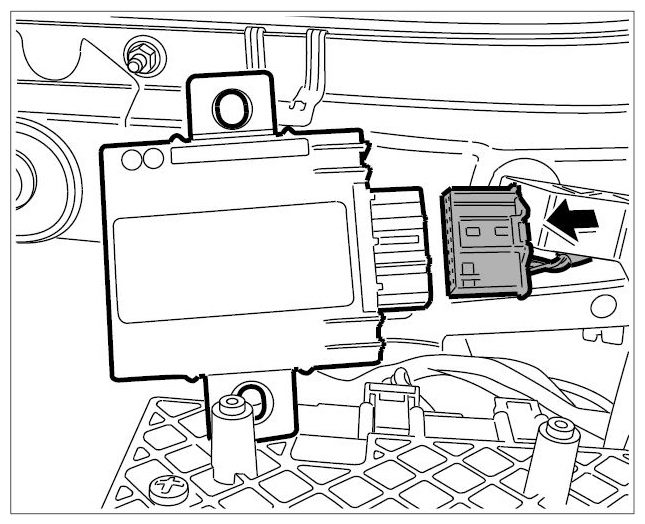

Push in electric plug of control unit until it is felt to engage.

Fig 1: Inserting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

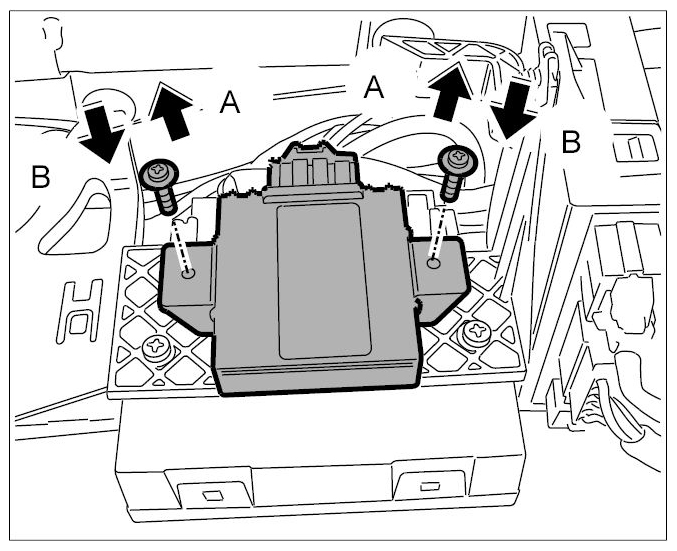

Position control unit on support and screw it down with fastening screws -arrows B- .

Fig 2: Installing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
