Installing CD Changer

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position CD changer in the carrier and screw it down with the six fastening screws. → Tightening torque: 4.5 ftlb.

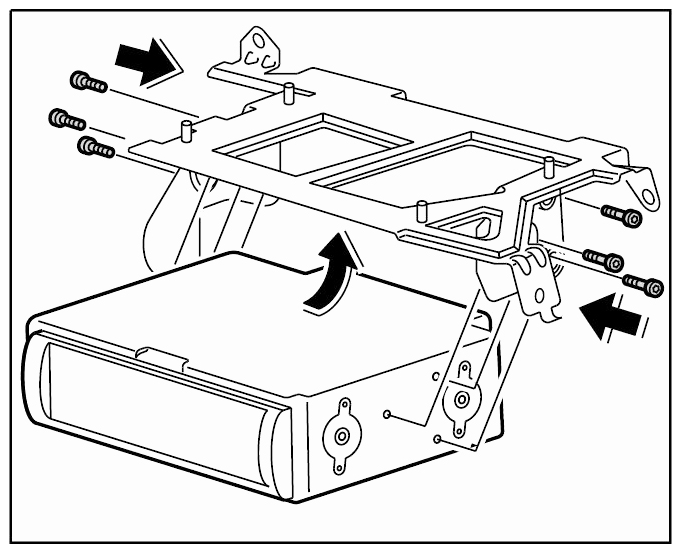

Fig 1: Fastening Screws For Securing CD Changer To Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw down the carrier with CD changer & amplifier. → Tightening torque: 6.5 ftlb.

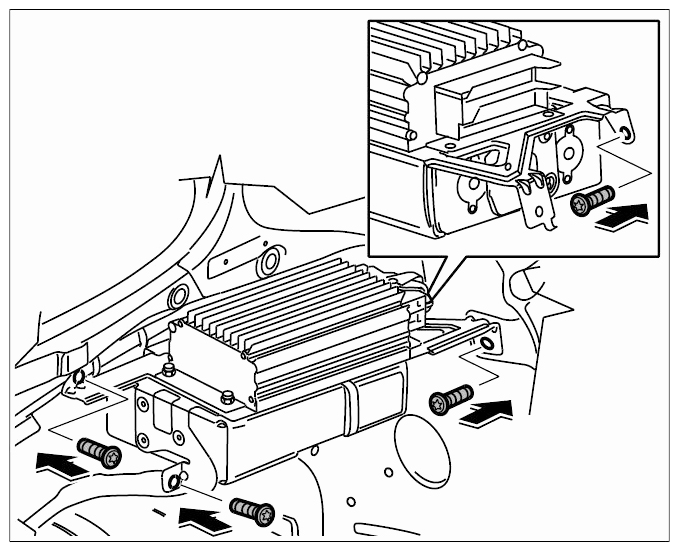

Fig 2: Tightening Carrier Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert plug -2- until it is felt to engage.

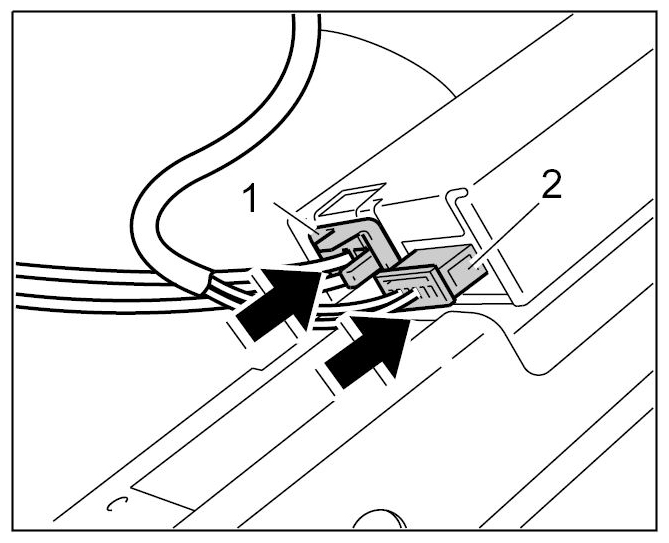

Fig 3: Inserting Optical Waveguide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert optical waveguide plug -1- until it is felt to engage.
