Installing Loudspeaker amplifier

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position amplifier on retaining bracket and screw it down with the fastening nuts. → Tightening torque: 6 Nm (4.5 ftlb.)

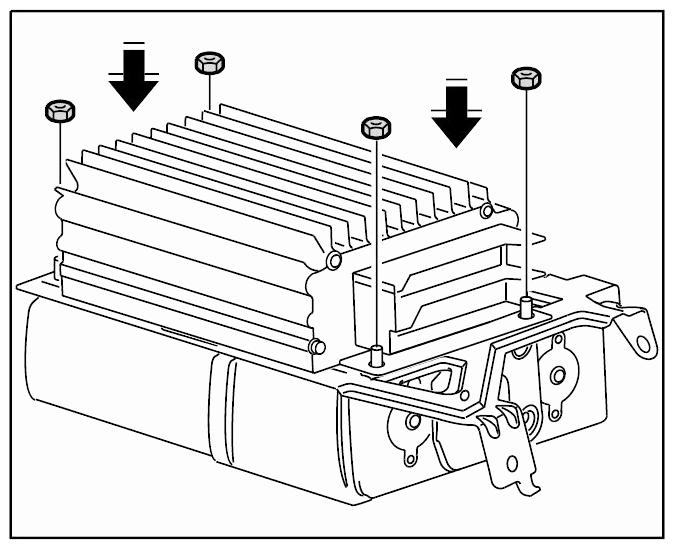

Fig 1: Tightening Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the two optical waveguides -arrow A- until the locking lugs -arrow B- engage securely.

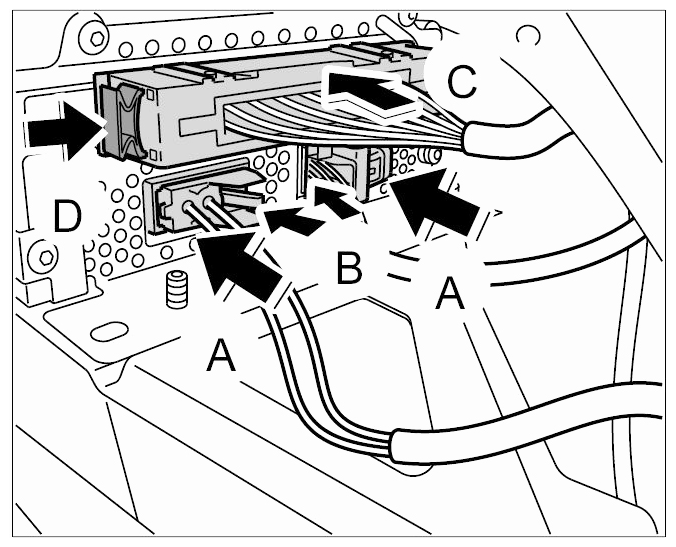

Fig 2: Plugging In Connector For Amplifier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press connector into the loudspeaker amplifier -arrow C- and press in the locking element -arrow D- until it engages securely.
