Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the right and the rear covers → Installing front trim (engine compartment) and the cowl panel → Installing cowl panel cover .
  2. Install both wiper arms → Installing wiper arms .
  3. Bleed the vehicle → Bleeding The Brake System  .

    After the bleeding operation, do not top up the brake fluid level above MAX

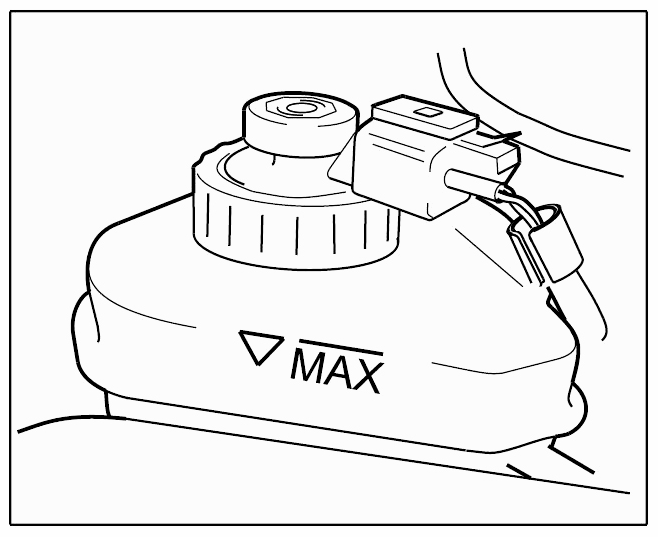

    Fig 1: Identifying Brake Fluid Reservoir Marking
    G09419715Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Calibrate the pressure sensor with the Porsche System Tester.
