Installing Rear Section Of Cable For Front Lid Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

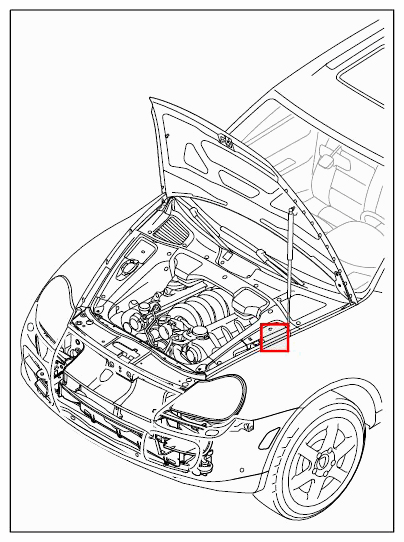

Fig 1: Identifying Rear Section Of Cable For Front Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

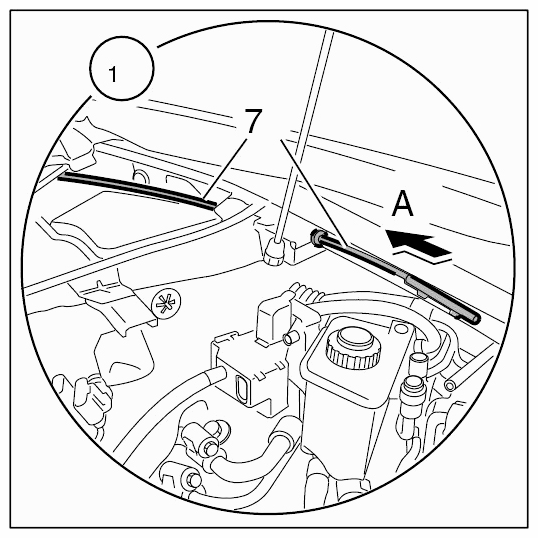

Fig 2: Pulling Out Rear Section Of Cable For Front Lid Lock (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

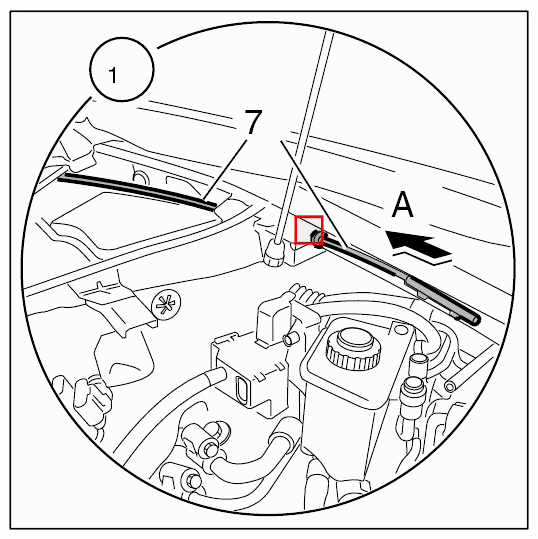

Fig 3: Pulling Out Rear Section Of Cable For Front Lid Lock (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install rear section of cable for front lid lock.
1. 1.1. Insert rear section of cable for front lid lock -7- into the body (-arrow A-).

  Fig 4: Installing Rear Section Of Cable For Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

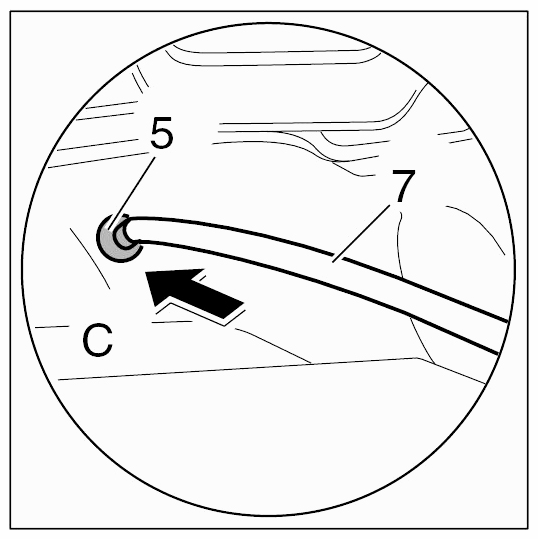

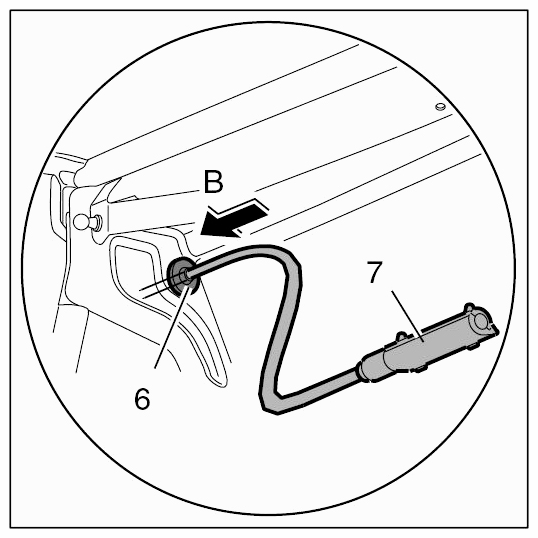

2. 1.2. Fit rubber sleeves -5- and -6- to the body (-arrow B- and -arrow C-).

  Fig 5: Installing Rubber Sleeves Of Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Installing Rubber Sleeves Of Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable for front lid lock.

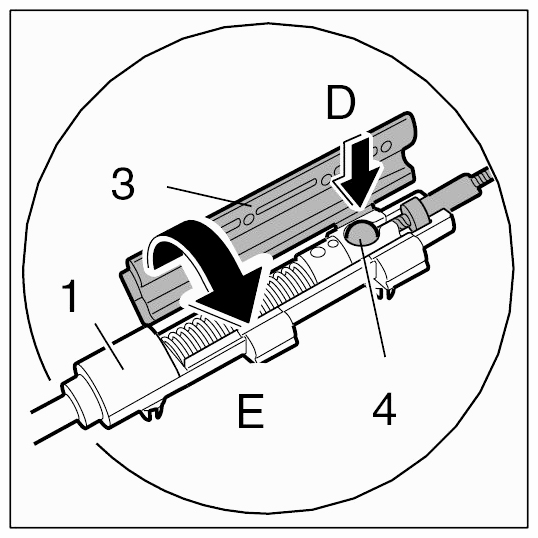

1. 2.1. Engage front section of cable for front lid lock -4- (-arrow D-) and close lid -3- at connection piece -1- (-arrow E-) until the locking lugs -2- engage audibly.

  Fig 7: Installing Front Section Of Cable For Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

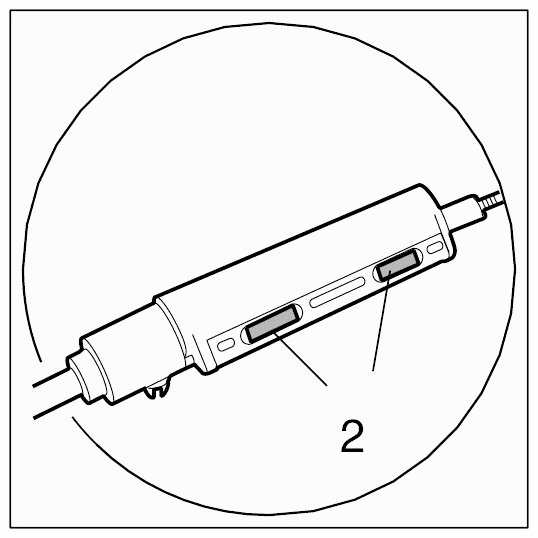

  Fig 8: Identifying Locking Lugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

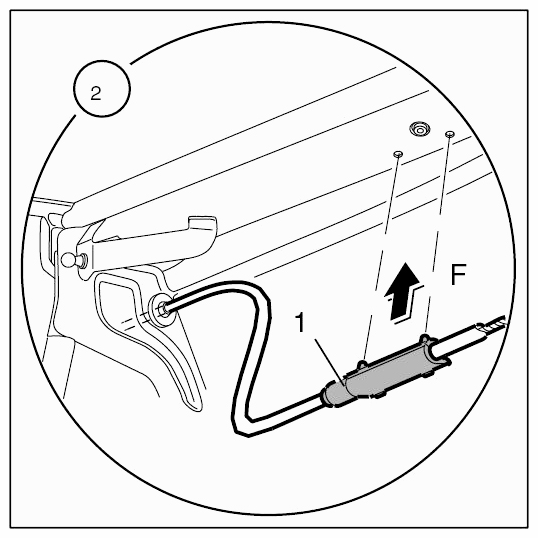

2. 2.2. Clip the connection piece -1- to the body (-arrow F-).

  Fig 9: Installing Clip Of Connection Piece
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cowl panel cover → Installing cowl panel cover .
Install front cover (engine compartment) on left → Installing front trim (engine compartment) .
Install release for front lid → Installing Release For Front Lid
