Installing Release For Front Lid

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

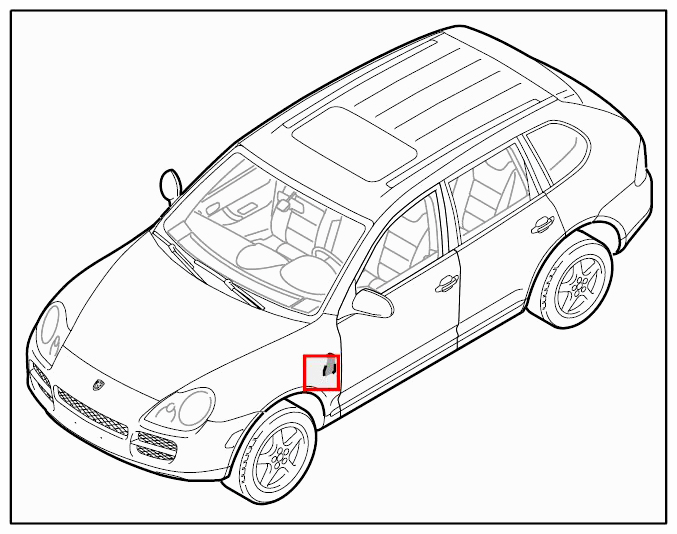

Fig 1: Identifying Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

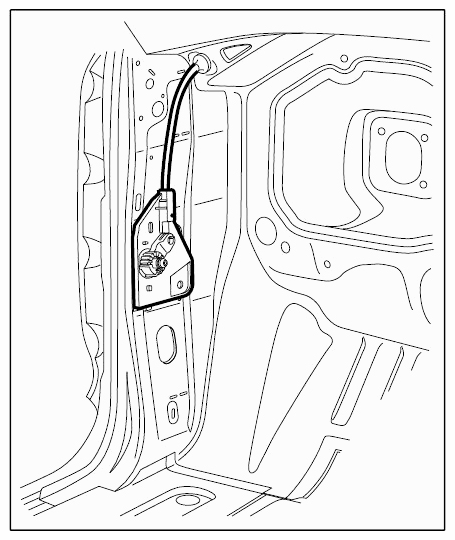

Fig 2: Identifying Actuating Mechanism For Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install actuating mechanism for front lid.
1. 1.1. Engage ball head -7- (-arrow A-) and clip in rear section of cable for front lid lock -3- at the actuating mechanism for the front lid -5- (-arrow B-) .

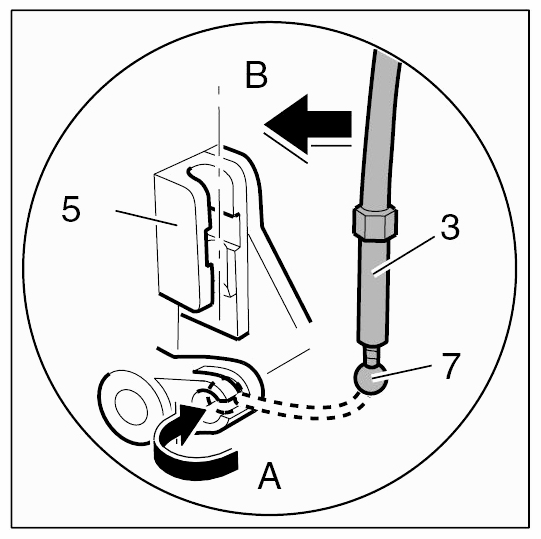

  Fig 3: Installing Ball Head And Clip Rear Section Of Cable Front Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Insert actuating mechanism for front lid -5- into the body (-arrow C-).

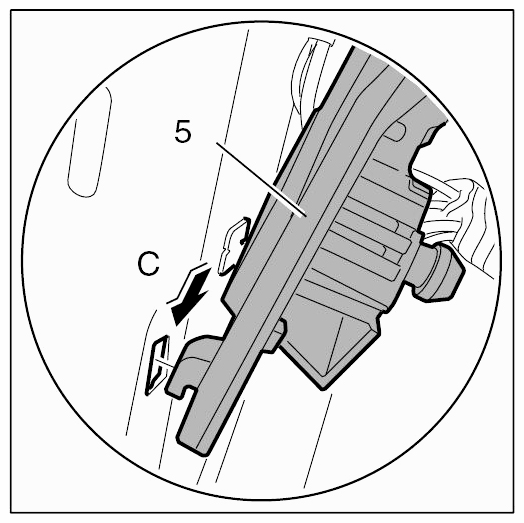

  Fig 4: Inserting Actuating Mechanism For Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Screw in -6- fastening screws.

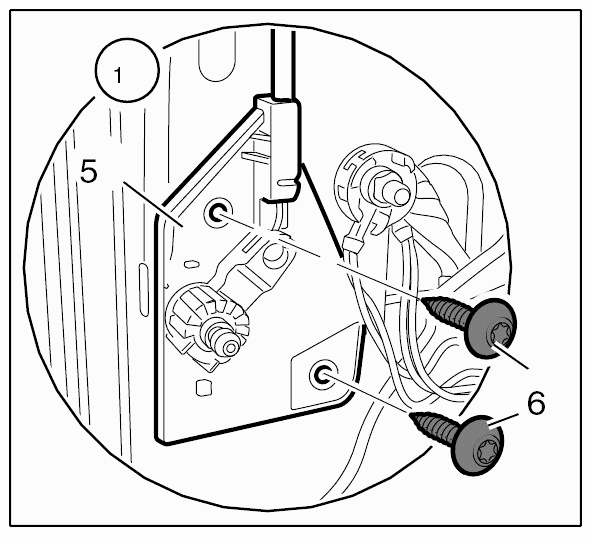

  Fig 5: Identifying Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in rear section of cable for front lid lock.
1. 2.1. Clip in rear section of cable for front lid lock -3- at the fastening clips -4- (-arrows D-) .

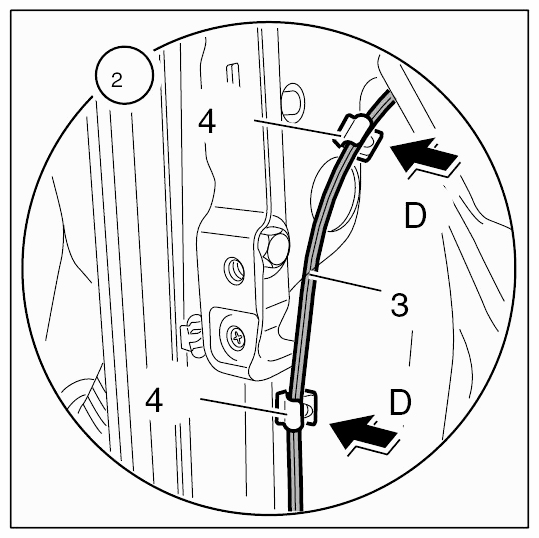

  Fig 6: Installing Clip Rear Section Of Cable Front Lid Lock And Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure insulating mat.
1. 3.1. Swivel insulating mat -1- back (-arrow E-) and clip in fastening clips -2- (-arrow F-).

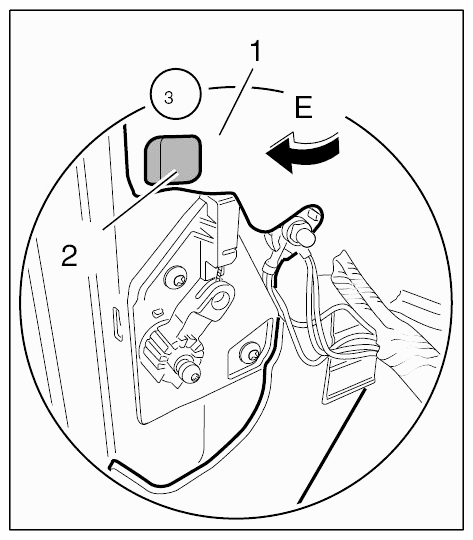

  Fig 7: Installing Swivel Insulating Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

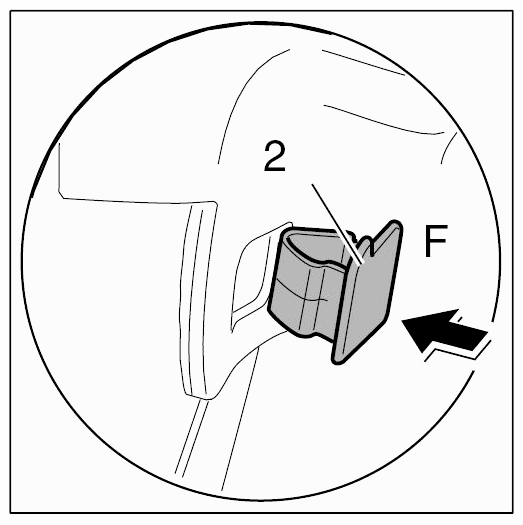

  Fig 8: Installing Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front side section trim panel → Installing front side section trim .
