Removing Dashboard

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Instrument Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

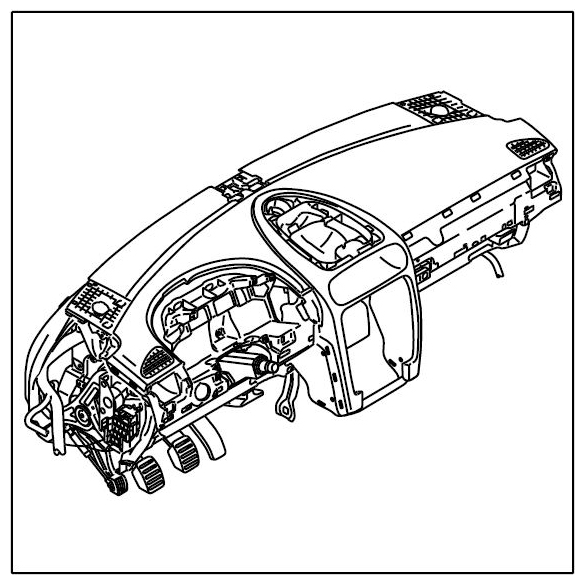

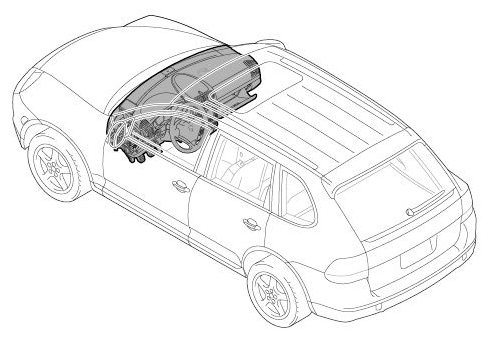

Fig 2: Identifying Dashboard

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove instrument panel cover → Removing Dashboard Cover On The Driver's Side → Removing Dashboard Cover On The Passenger's Side
Remove cover for instrument panel (defroster cover) → Removing Cover For Dashboard (Defroster Cover)
Remove Bose centre speaker → Removing Front Loudspeakers (Dashboard)
Remove steering-column switch → Removing Steering-Column Switch
Remove instrument cluster → Removing Instrument Cluster
Remove passenger's airbag unit → Removing Passenger's Airbag Unit
Remove front ashtray → Removing Front Ashtray
Remove display and operator control unit (PCM).
Remove A-pillar trim → Removing A-Pillar Trim

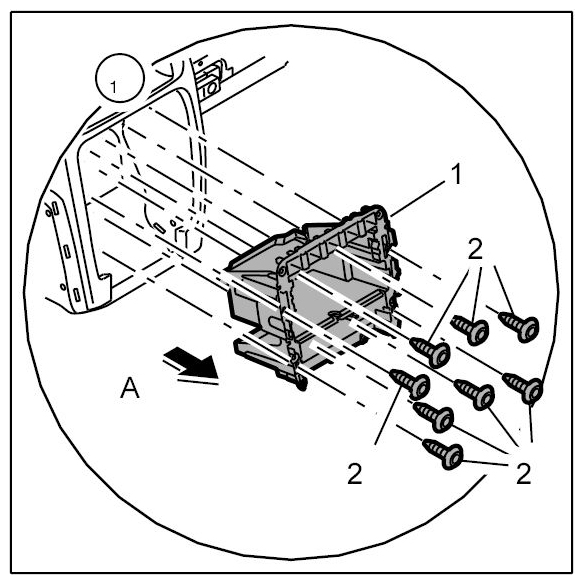

Remove the device carrier. To do this, unscrew the fastening screws -2- .

Fig 3: Removing Device Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the device plugs -1- to the rear -arrow A- until the plugs -arrows- are accessible.

Fig 4: Pulling Device Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

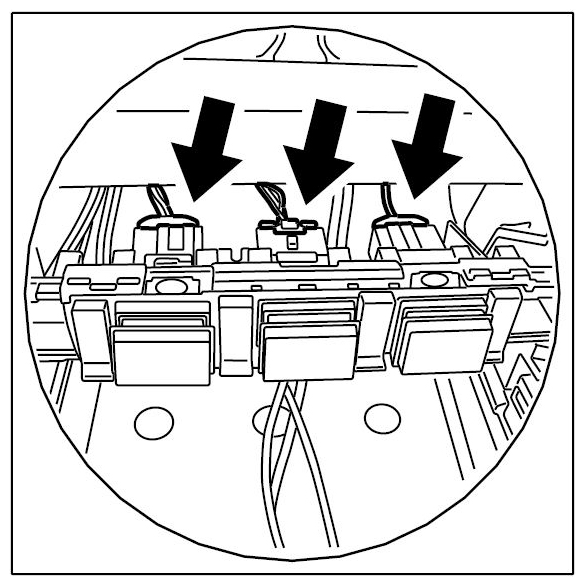

Fig 5: Locating Device Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and pull off the plugs -arrows- .

Fig 6: Locating Device Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the sheetmetal reinforcement on the passenger's side. To do this, unscrew the fastening screws -4- .

Fig 7: Removing Sheetmetal Reinforcement On Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

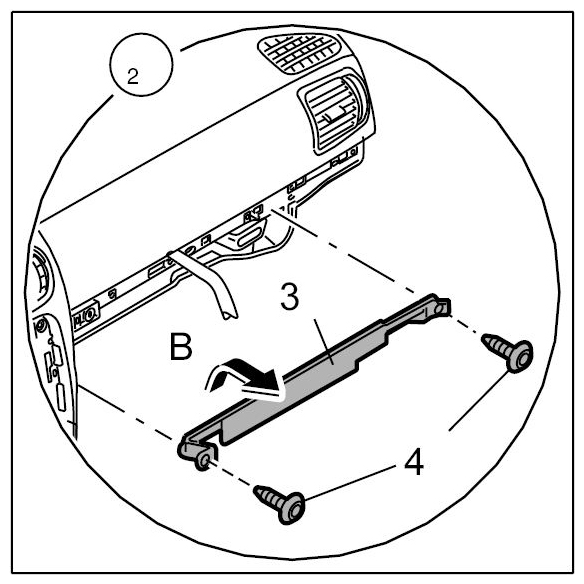

Lift the sheetmetal reinforcement on the front passenger's side -3- and pull it out to the rear -arrow B- .

Fig 8: Lifting Sheetmetal Reinforcement On Front Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

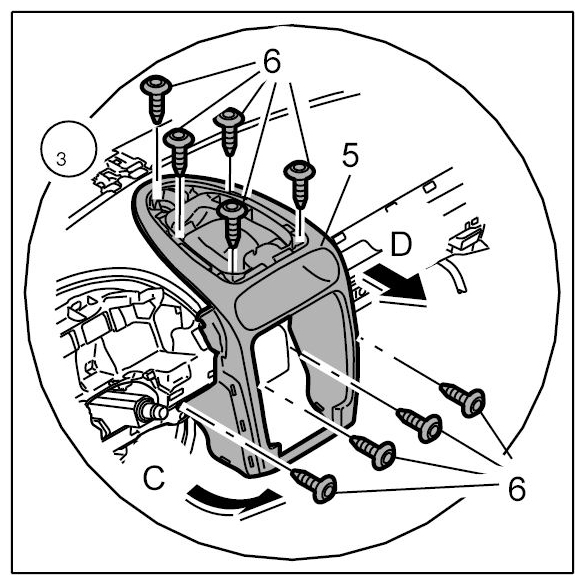

Remove the centre instrument panel cover. To do this, unscrew the fastening screws -6- .

Fig 9: Removing Centre Instrument Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel the centre instrument panel cover -5- carefully upward -arrow C- and then remove it to the rear -arrow D- .

Fig 10: Removing Centre Instrument Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

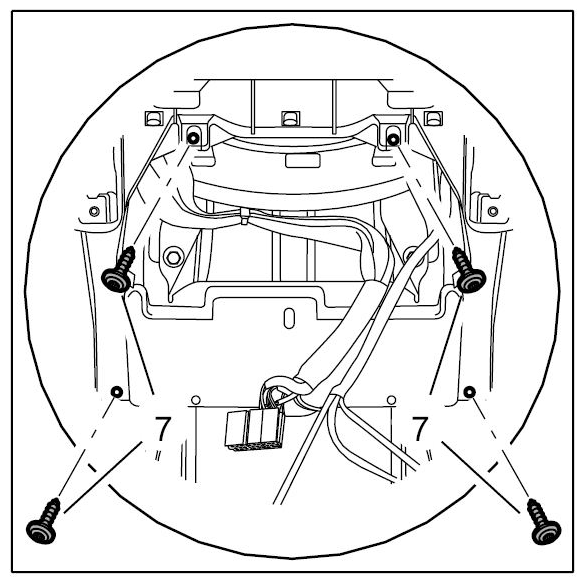

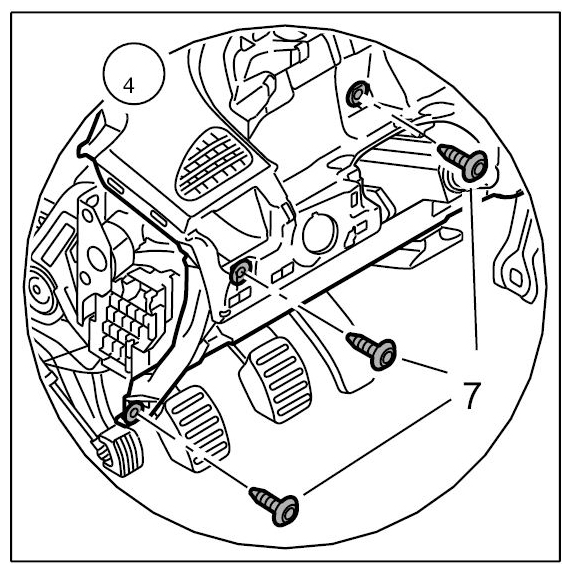

Release the instrument panel on the driver's side and at the middle. To do this, unscrew the fastening screws -7- and -7- .

Fig 11: Identifying Instrument Panel Screws (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 12: Identifying Instrument Panel Screws (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

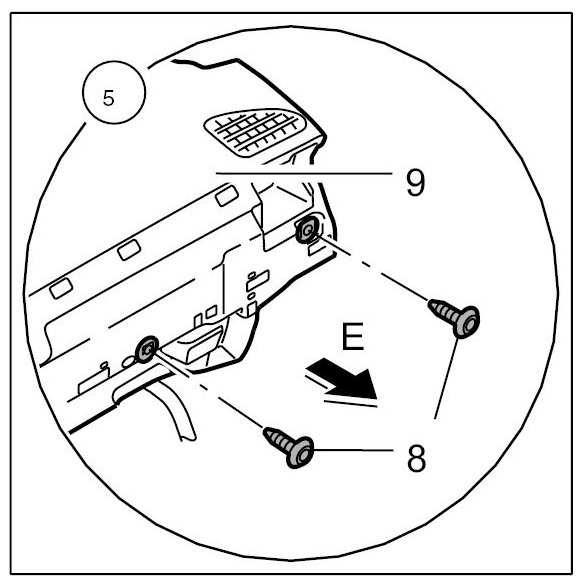

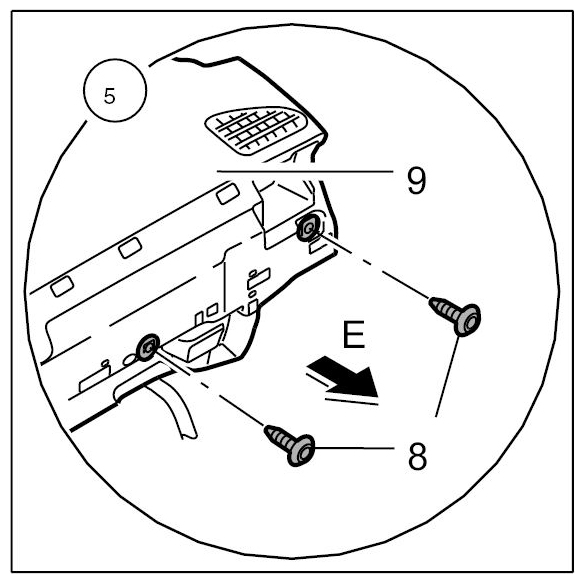

Release the instrument panel on the passenger's side. To do this, unscrew the fastening screws -8- .

Fig 13: Removing Instrument Panel On Passenger's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully pull the instrument panel -9- to the rear -arrow E- until the clip connection in the area of the A-pillar becomes accessible.

Fig 14: Pulling Instrument Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

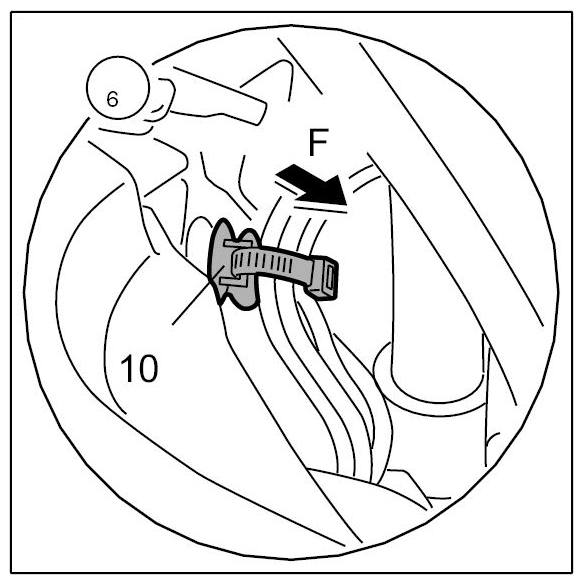

Unclip the clip connection -10- on the instrument panel -arrow F- .

Fig 15: Unclipping Clip Connection On Instrument Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

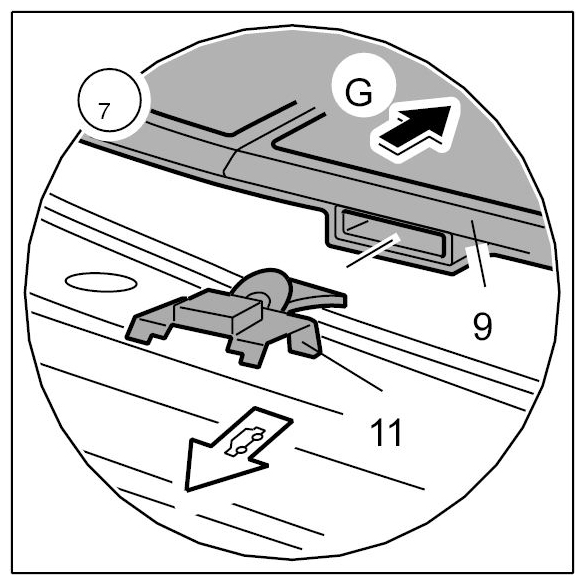

Carefully pull the instrument panel -9- to the rear -arrow G- out of the retaining clips -11- .

Fig 16: Pulling Instrument Panel To Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
