Removing Dashboard Cover On The Driver's Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

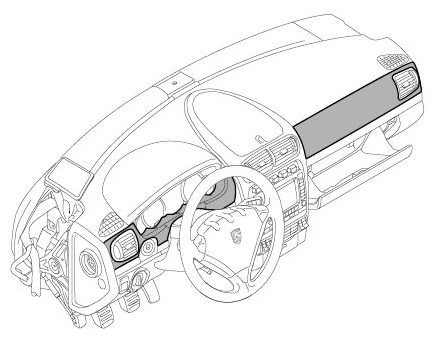

Fig 1: Identifying Dashboard Cover On Driver's Side (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

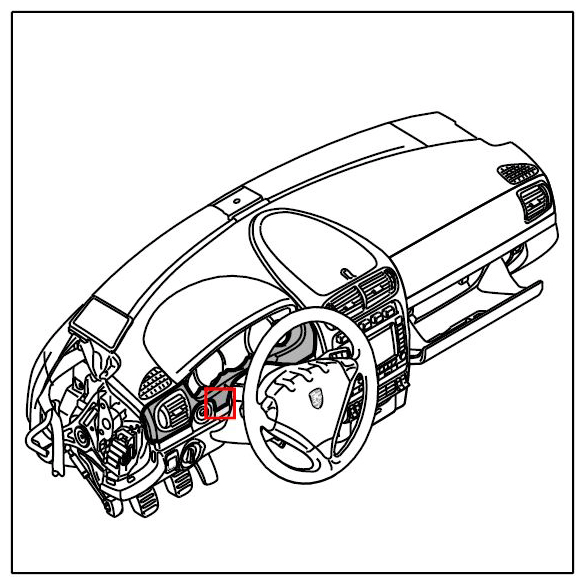

Fig 2: Identifying Dashboard Cover On Driver's Side (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove trim strips for the dashboard on the driver's side.
Remove trim panel under dashboard on the driver's side → Removing Trim Panel Under Dashboard
Remove air vent for door window → Removing Air Vent At Door .

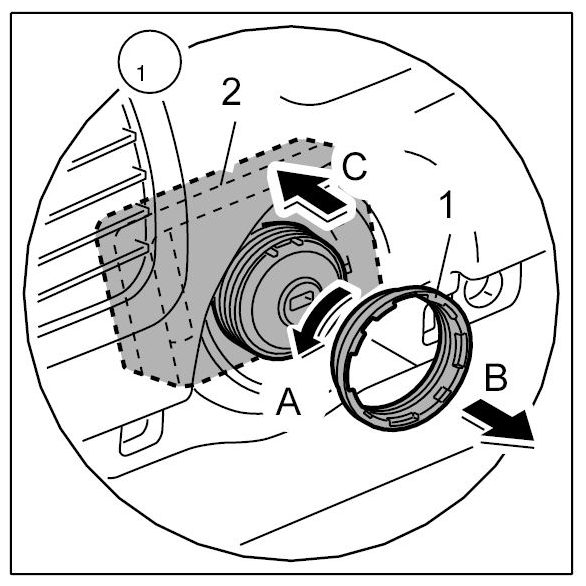

Remove ignition switch. To do this, unscrew the union nut -1- using the appropriate special tool. -arrow A- and remove it -arrow B- .

Fig 3: Removing Ignition Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the ignition switch -2- through to the inside -arrow C- .

Fig 4: Pushing Ignition Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove top section of the steering column trim. To do this, adjust the steering column downward and to the rear.

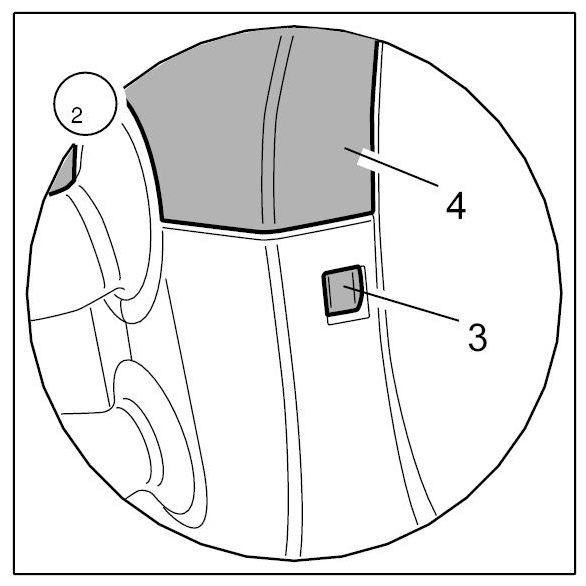

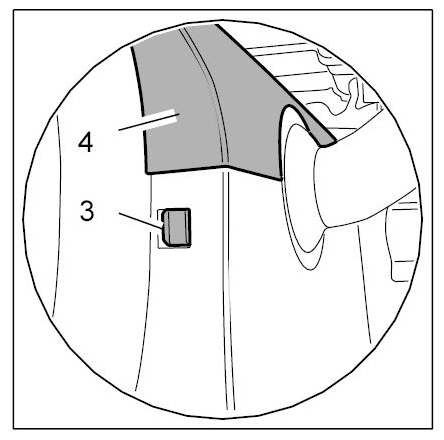

Disengage the holding straps -3- on the top section of the steering column trim -4- using a screwdriver. To do this, the steering wheel must be turned 90° from the middle position to the left and then 180° to the right.

Fig 5: Identifying Holding Straps And Steering Column Trim (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Identifying Holding Straps And Steering Column Trim (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

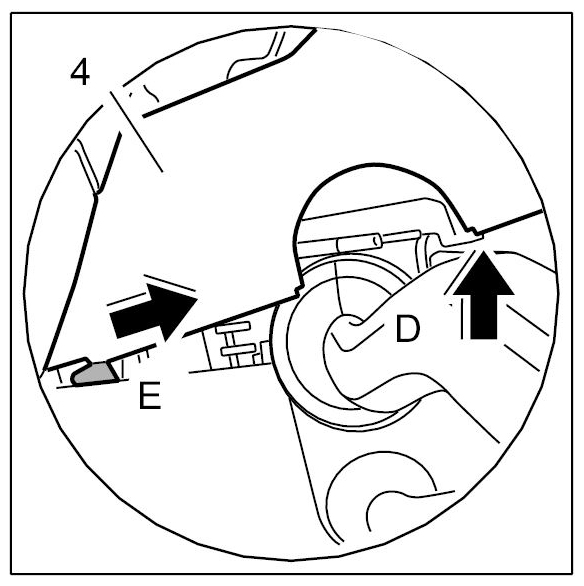

Lift the top section of the steering column trim -4- at the rear -arrow D- and pull it out of the holding straps -arrow E- .

Fig 7: Lifting Top Section Of Steering Column Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

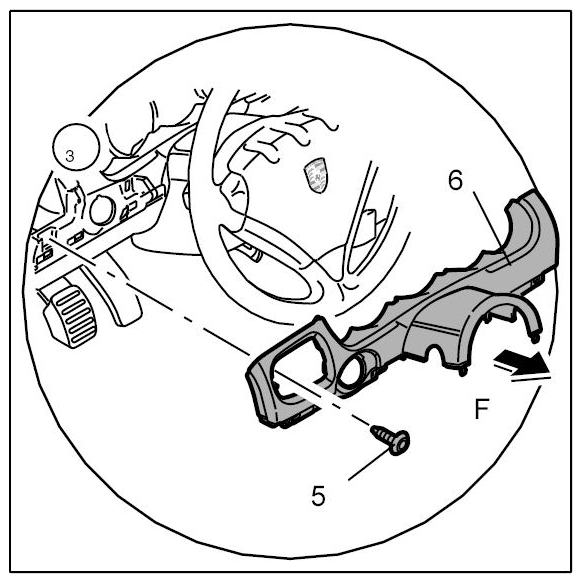

Remove instrument panel cover on the driver's side. To do this, unscrew the fastening screw -5- .

Fig 8: Removing Instrument Panel Cover On Driver's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

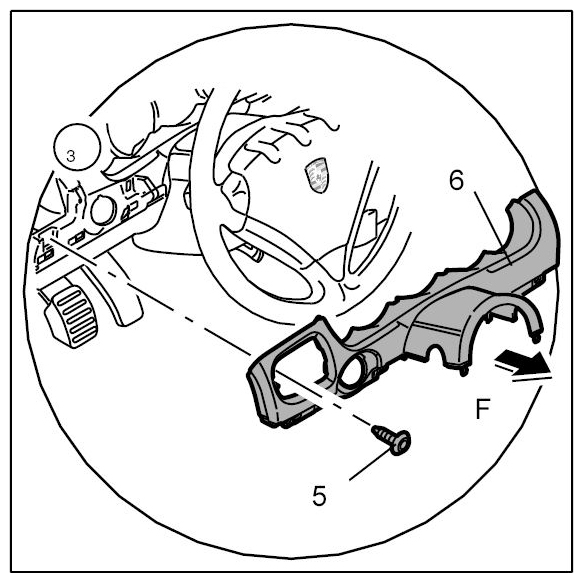

Remove the cover for the instrument panel on the driver's side -6- to the rear together with the top section of the steering column trim -arrow F- .

Fig 9: Removing Cover For Instrument Panel On Driver's Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
