Removing Dashboard Cover On The Passenger's Side

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

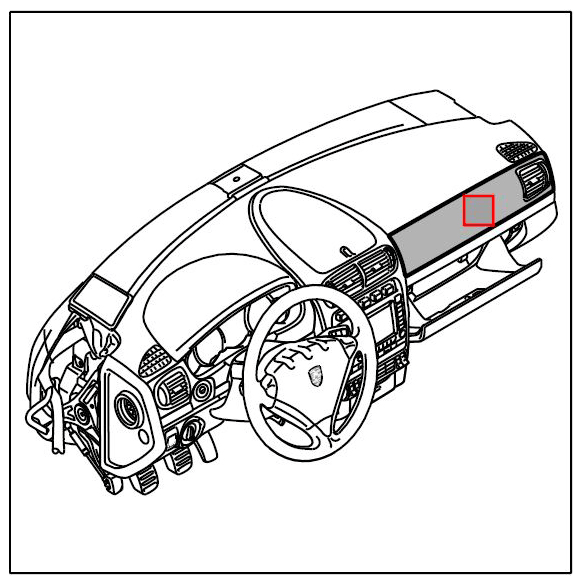

Fig 1: Identifying Dashboard Cover On Passenger's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove trim strips for dashboard on the passenger's side. → REMOVING TRIM STRIPS FOR DASHBOARD ON THE PASSENGER'S SIDE
Remove glove compartment → Remove The Glove Compartment
Remove air vent at door. → Removing Air Vent At Door

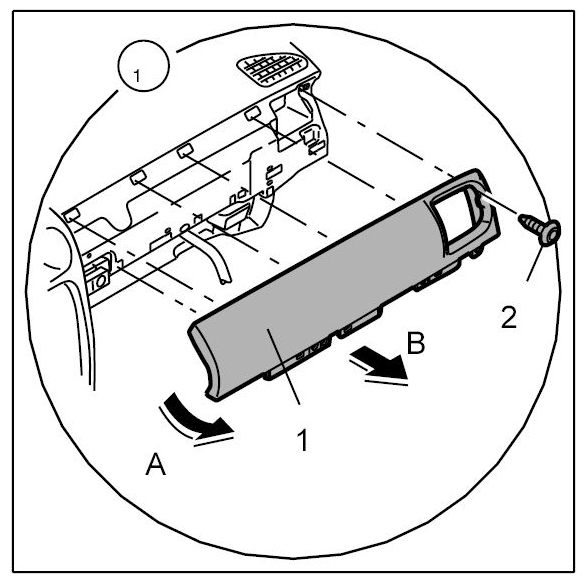

Unscrew fastening screw -2- .

Fig 2: Removing Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

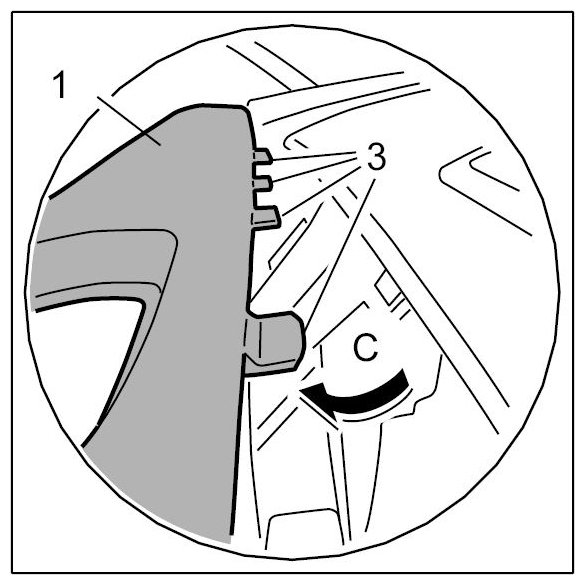

Swivel the cover for the instrument panel on the passenger's side -1- out and down -arrow A- , pull it out with the holding strap -3- -arrow C- and remove to the rear -arrow B- .

Fig 3: Swiveling Cover For Instrument Panel On Passenger's Side (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 4: Swiveling Cover For Instrument Panel On Passenger's Side (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
