Removing Steering-Column Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

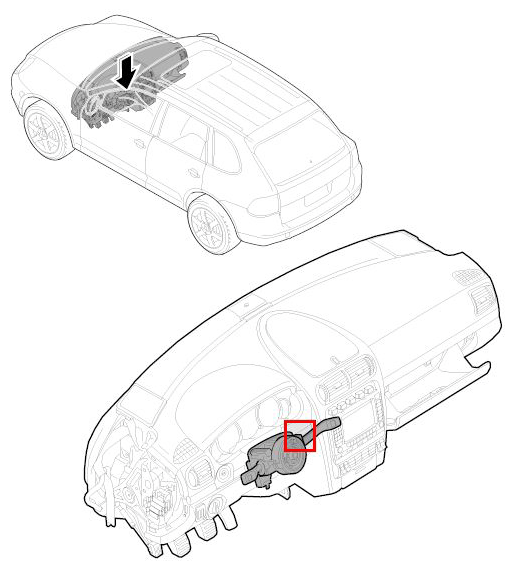

Fig 1: Overview Of Steering Column Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press locking element for the electrical plug and pull off the plug.

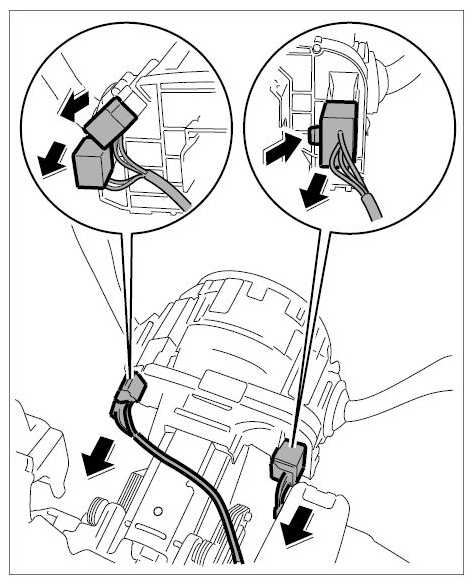

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screw and pull steering column switch downwards from the steering column.

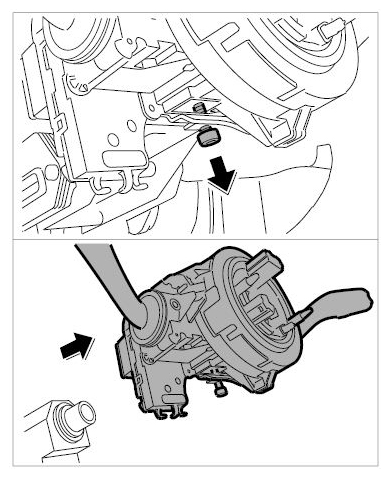

Fig 3: Removing Steering Column Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
