Installing Rear Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of material damage if specified curing time of adhesive is not observed! In order to ensure that the bonded joint is sufficiently strong, the following conditions must be adhered to:

The vehicle must not be used until the curing time has elapsed.
Curing time: 2 hours
Temperature: at least 10 °C
Fixing time: approx. 1 hour

Information

The removed rear window can be reinstalled if there was no prior damage to the rear window and the rear window was removed without damage.

Information

Check stop bits.
Replace damaged or missing stop bits.

Prepare 2-component adhesive for processing. → 6X00IN WORKING WITH PORSCHE 2-COMPONENT WINDOW ADHESIVE
Information
- The adhesive has an open time of -15 min- , which means that the bonding material must be applied and the component must be affixed within this period of time.
- To ensure that the substance is completely mixed, apply a 30-mm long bead of fresh adhesive to a piece of cardboard before processing.

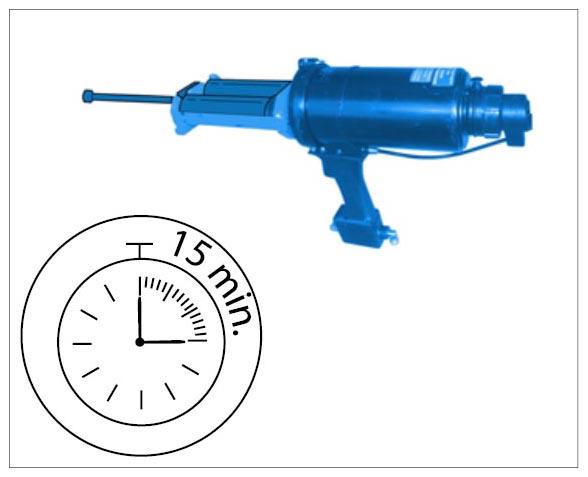

  Fig 1: Identifying Bonding Material Applying Time
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply adhesive to the rear window.
1. 2.1. Using a bonding gun -A- , apply 2-component adhesive to the rear window along the preliminary coat and on the primer in the form of a triangular bead measuring -X = approx. 15 mm- .

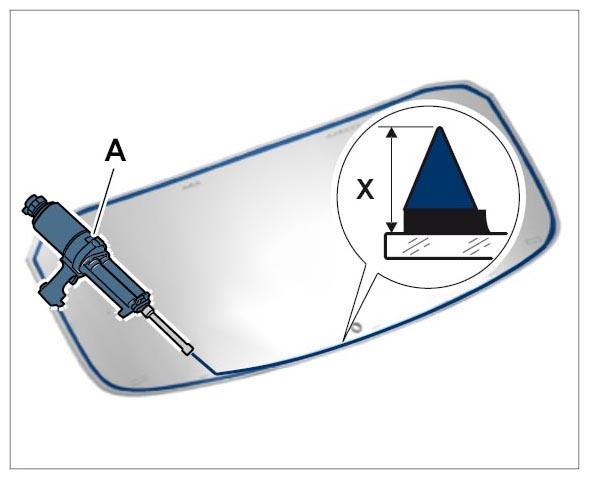

  Fig 2: Applying Adhesive To Rear Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - When applying the adhesive, it is essential to ensure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end.
  Information
  - Two persons are needed to insert, position and secure the rear window.
Close the rear lid and insert the rear window into the body.

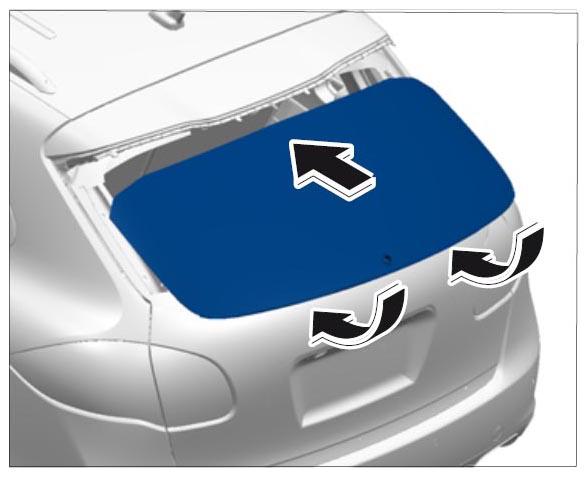

Fig 3: Inserting Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Affix suction cups to the rear window.
2. 3.2. Guide the rear window into the window aperture at the top.
3. 3.3. Insert the rear window at the sides of the window aperture and lower it.
4. 3.4. Press the rear window uniformly into the body.
5. 3.5. Adjust the size of the gap by moving the rear window. → Technical Values
6. 3.6. Secure the rear window to the top of the rear lid with adhesive tape -1- to prevent it from slipping.

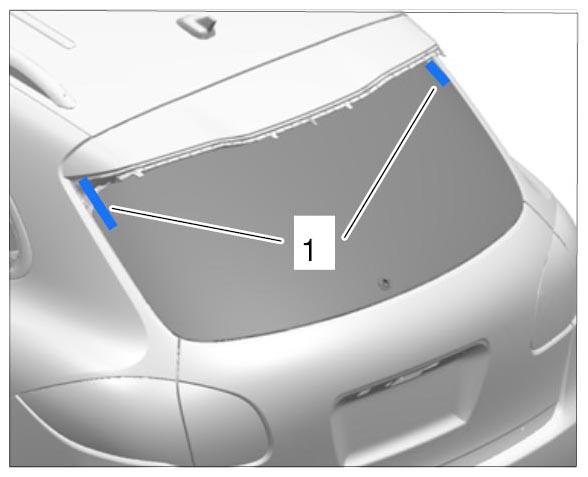

  Fig 4: Identifying Rear Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean visible areas.

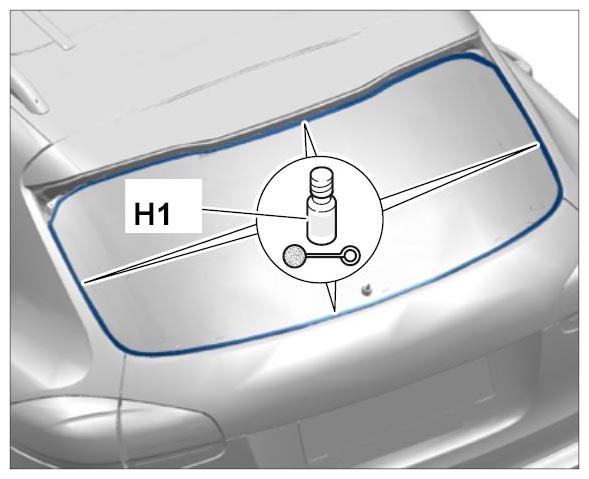

Fig 5: Identifying Adhesive Visible Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Adhesive that has oozed out must be removed immediately and the affected fields of vision must be cleaned using cleaning agent -H1- .

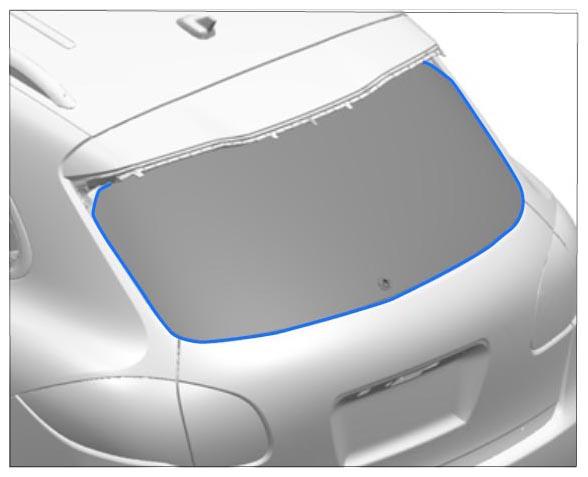

  Fig 6: Removing Emerging Adhesive Residue
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit rubber sleeve on the wiper arm.
Plug in and lock electric plug connections on actuating cylinders for the rear lid. → INSTALLING ACTUATING CYLINDER FOR REAR LID
Plug in electric plug connections for rear window heating. → INSTALLING
Plug in and lock electric plug connections on the antenna amplifier. → INSTALLING ANTENNA AMPLIFIER
Plug in and lock electric plug connections for the antenna amplifier control unit. → INSTALLING CONTROL UNIT FOR ANTENNA AMPLIFIER
