Installing Control Unit For Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Insert control unit for antenna amplifier into the cut-out -A, B- .

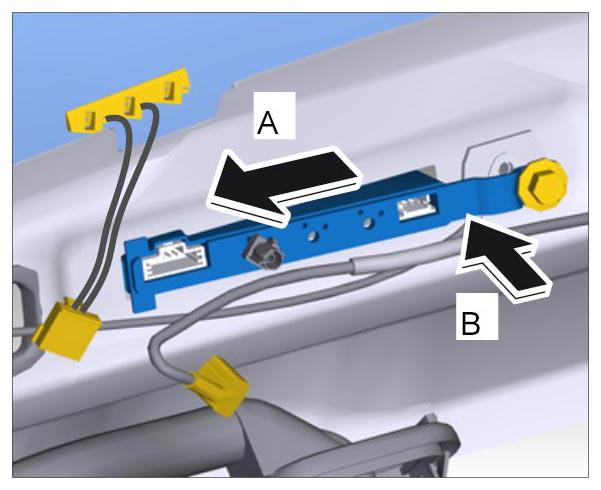

Fig 1: Installing Control Unit For Antenna Amplifier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit ground line and secure with the fastening screw.
Plug in electric plug connections until they engage securely.

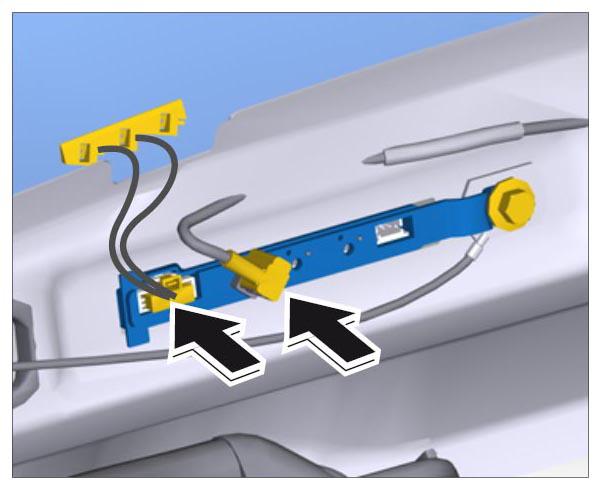

Fig 2: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
