Removing Wire Harness For Tailgate At The Right

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

The number of plug connections can vary, depending on equipment.

Fig 1: Identifying Installation Position Of Wire Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Wire harness for tailgate, left
2. Wire harness for tailgate, right

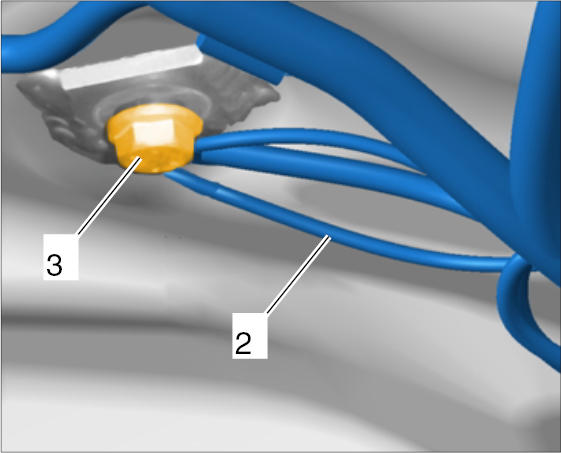

1. Unscrew fastening screw -3-  and disconnect ground line -2-  .
   Fig 2: Identifying Ground Line At Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

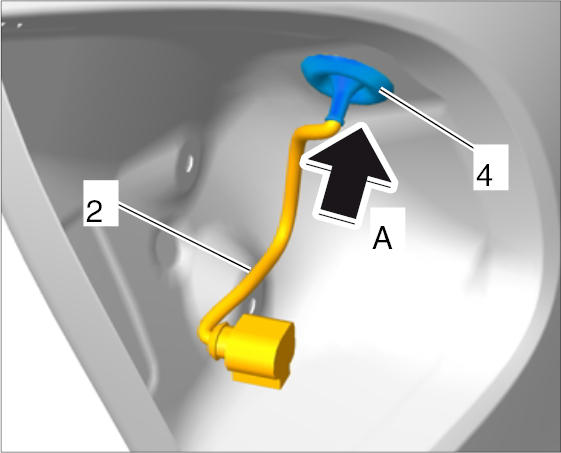

2. Press rubber sleeve -4-  inwards -A-  and pull wire harness -2-  through towards the inside.
   Fig 3: Locating Rubber Sleeve On Tail Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

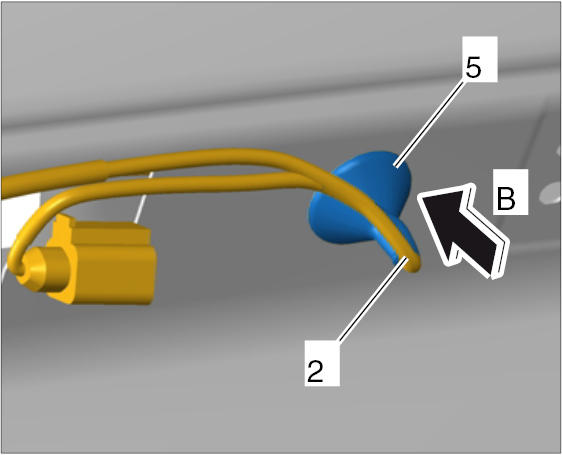

3. Press rubber sleeve -5-  inwards -B-  and pull wire harness -2-  through towards the inside.
   Fig 4: Locating Rubber Sleeve On Handle Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release and disconnect electric plug connections for the rear lid control unit. → REMOVING CONTROL UNIT FOR REAR LID - section on "Removing"
5. Release and disconnect electric plug connections for the actuating cylinders for the rear lid. → REMOVING ACTUATING CYLINDER FOR REAR LID - section on "Removing"
6. Disconnect electric plug connection for rear window heating.
7. Release and disconnect electric plug connections for the antenna amplifier. → REMOVING ANTENNA AMPLIFIER - section on "Removing"
8. Release and disconnect electric plug connection for the rear lid buzzer. → REMOVING REAR LID BUZZER - section on "Removing"
9. Release and disconnect electric plug connection for upper part of lid lock. → REMOVING UPPER PART OF REAR LID LOCK - section on "Removing"

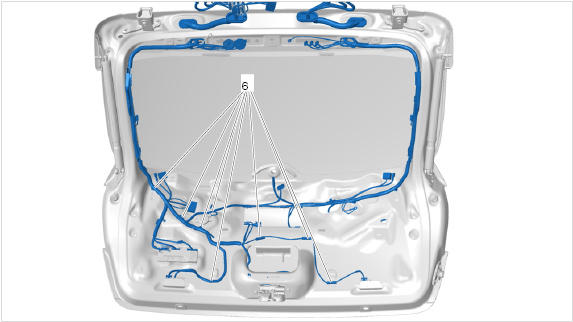

10. Unclip fixing clips -6-  for wire harness for tailgate at the right.
    Fig 5: Identifying Loosening Fastening Points

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

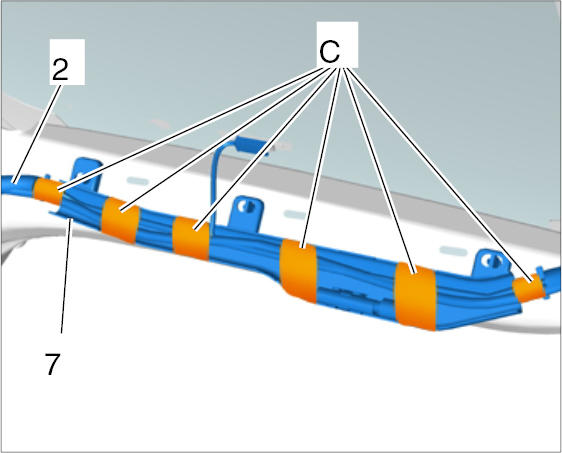

11. Remove wire harness -2-  from the bracket next to the window -7-  (-C-  ).
    Fig 6: Identifying Wire Harness Line And Bracket

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Remove wire harness -2-  from bracket -8-  .
    Fig 7: Pulling Wire Harness Through Tailgate

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

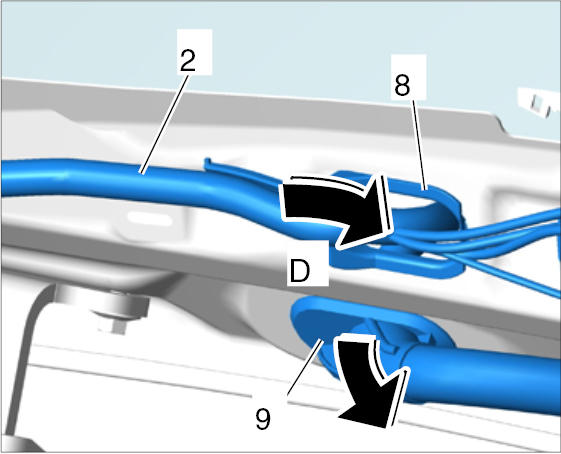

13. Remove rubber sleeve -9-  and pull wire harness -2-  through towards the tailgate -D-  .

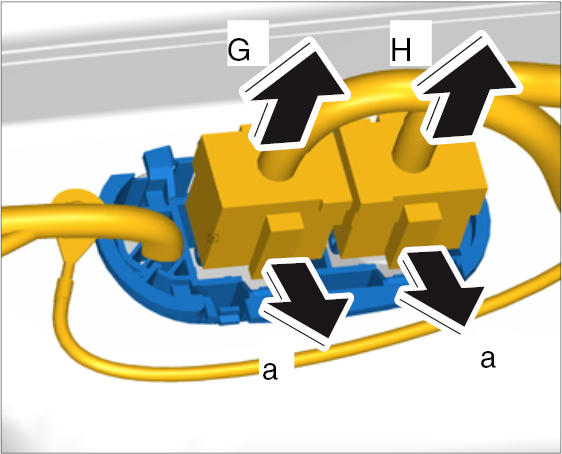

14. Release electric plug connections -a-  and disconnect them -G, H-  .
    Fig 8: Disconnecting Plug Connections At Connection Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

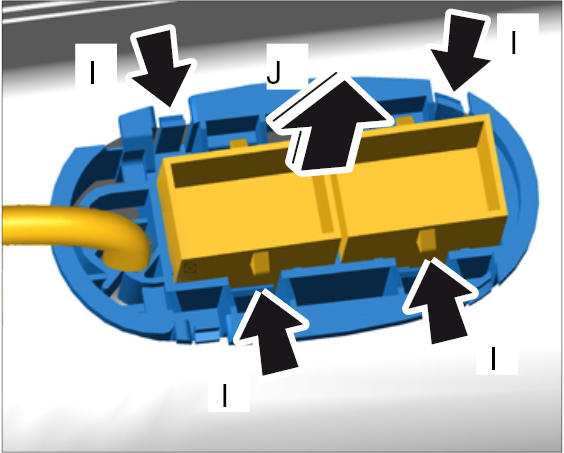

15. Unclip bracket for the connectors -I-  and remove it -J-  .
    Fig 9: Removing Bracket At Connection Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

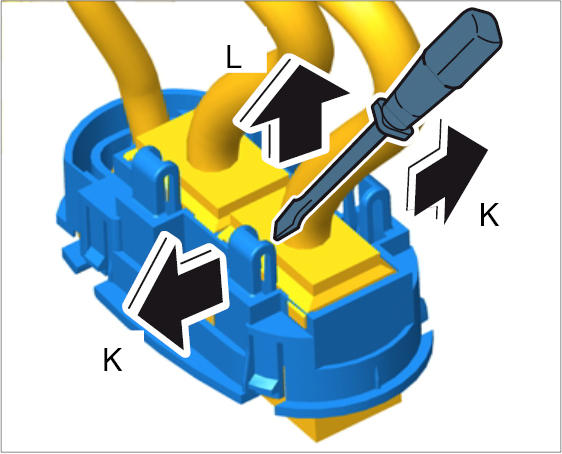

16. Unclip connectors from bracket -K-  and disconnect them -L-  .
    Fig 10: Unclipping Connectors From Bracket At Connection Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

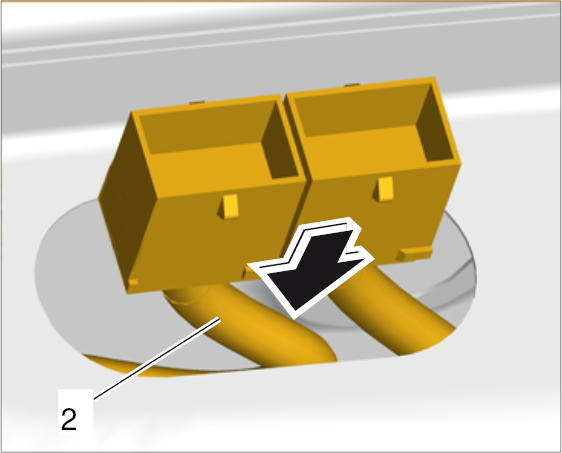

17. Guide wire harness -2-  towards the rear and through the cut-outs in the roof -arrow-  .
    Fig 11: Guiding Wire Harness Through Roof

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
