Removing Antenna Amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

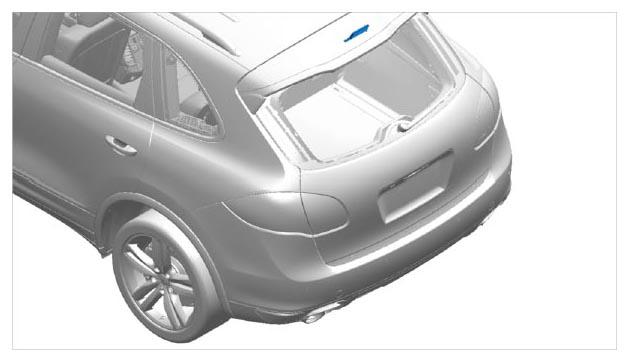

Fig 1: Identifying Antenna Amplifier Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully lever out electric plug connection -A- using a small screwdriver and pull it out.
Release and pull off three electric plug connections -B- (-a- ).

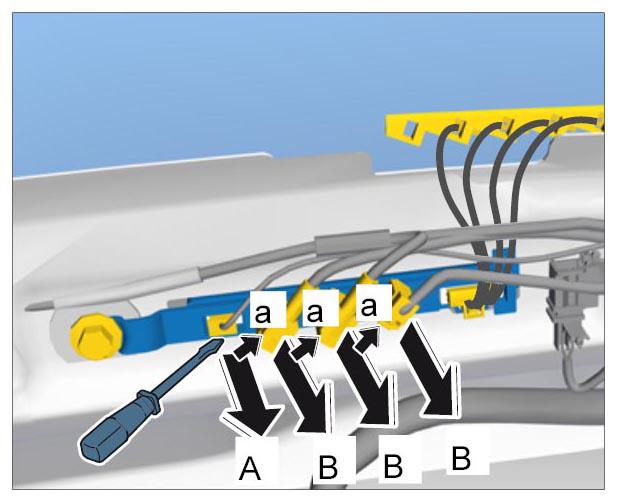

Fig 2: Pulling Plug Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release and pull off electric plug connection -a- .

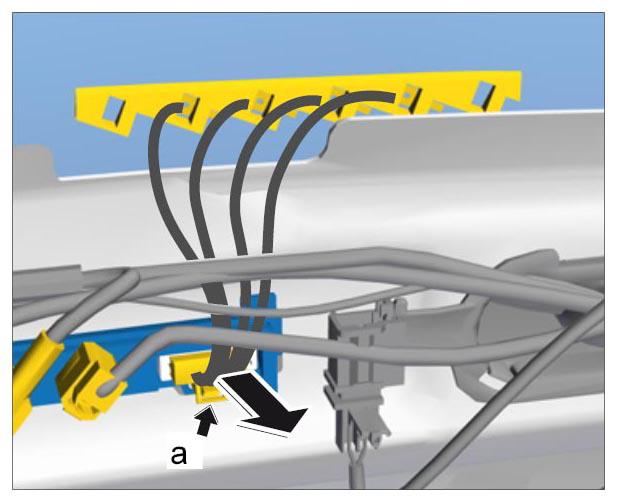

Fig 3: Pulling Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screw.
Lift up antenna amplifier -A- and remove it -B- .

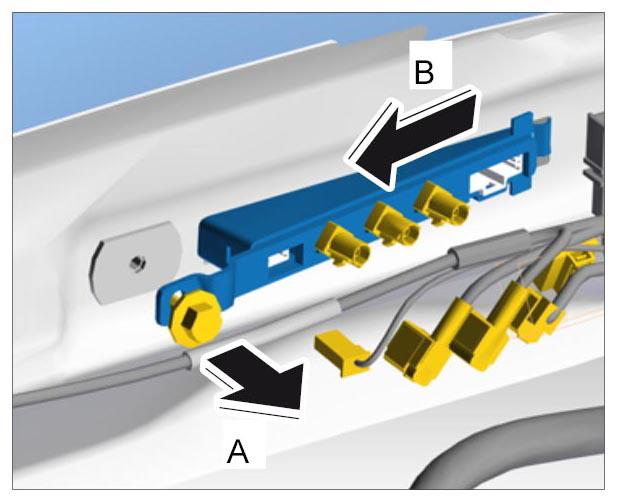

Fig 4: Releasing Antenna Amplifier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
