Removing Upper Part Of Rear Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

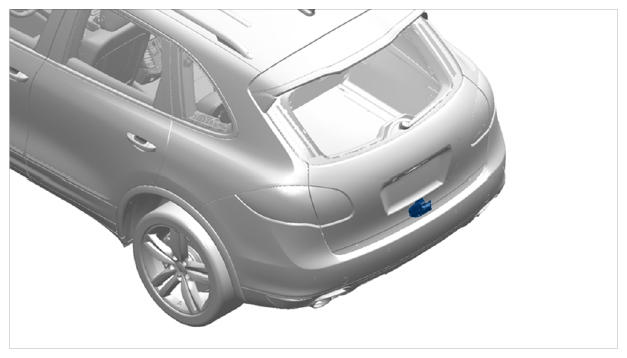

Fig 1: Identifying Installation Position Of Upper Part Of Lid Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws for upper part of rear lid lock -1- .

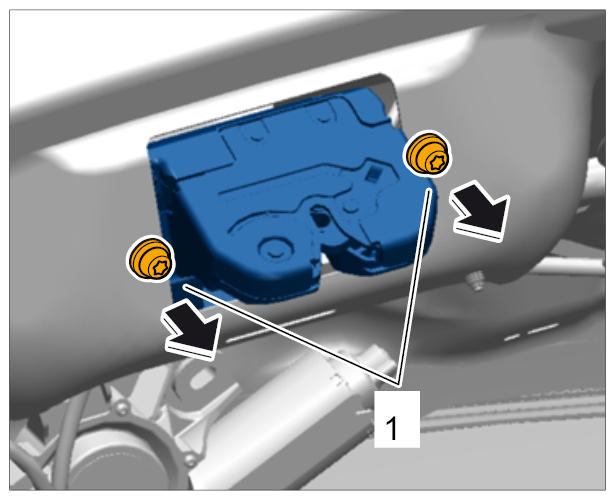

Fig 2: Loosening Upper Part Of Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove upper part of lid lock from the rear lid.
Release electric plug connection -a- and disconnect it.

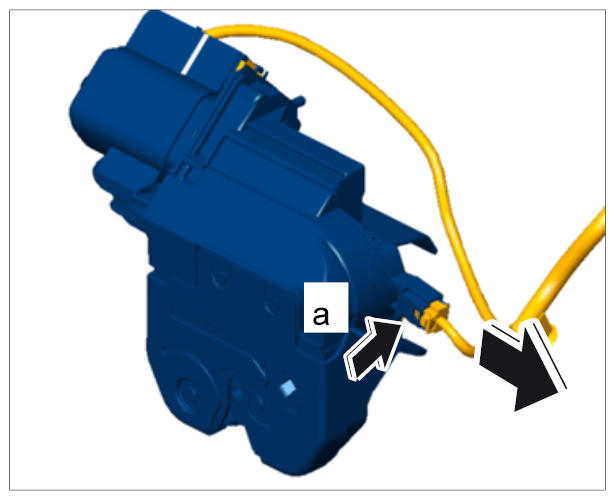

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

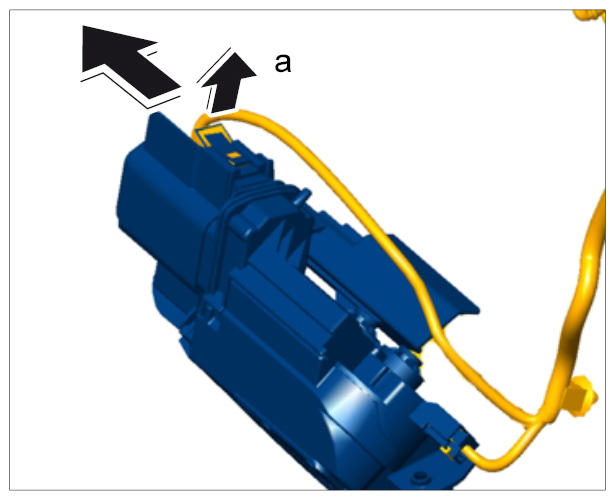

Release electric plug connection -a- and disconnect it.

Fig 4: Releasing Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
