Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine compartment cover. → REMOVING FRONT TRIM PANEL (ENGINE COMPARTMENT) - section on "Removing"
  2. Pull design cover off the throttle valve.
  3. Remove intake manifold. → REMOVING AIR BOX FOR THROTTLE HOUSING (INTAKE PIPES UPSTREAM OF THROTTLE VALVE)  - section on "Removing"
  4. Remove air-cleaner element and air cleaner housing cover. → REMOVING AIR-CLEANER ELEMENT  - section on "Removing"
  5. Loosen the drive belt from the generator. For details, see → 137819 REMOVING AND INSTALLING DRIVE BELT ON V6 DFI ENGINES
  6. Remove belt tensioner. Unscrew the three screws on the drive belt and remove drive belt.
  7. Loosen the generator and tilt it towards the air cleaner housing. Remove upper screw and only loosen the lower screw. → Removing generator

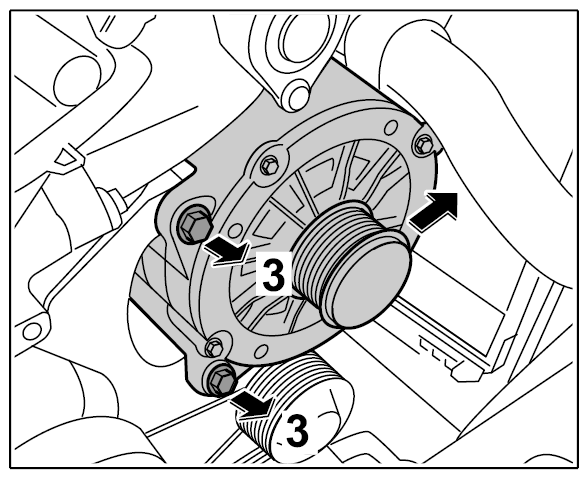

    Fig 1: Removing Generator
    G09933608Courtesy of PORSCHE CARS NORTH AMERICA, INC.
